Product Description

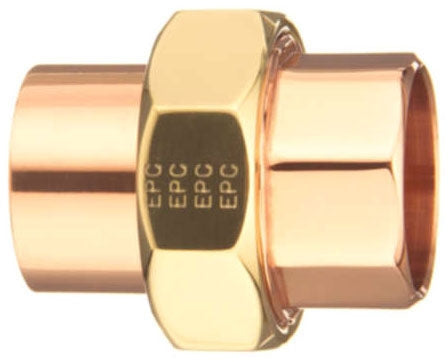

The Elkhart Products 10033585 is a wrot copper union fitting designed for various plumbing applications. It features a straight type connection, which is essential for maintaining continuous flow in piping systems. With an effective pressure rating of 215 PSI at four hundred degrees Fahrenheit, this component is suitable for both residential and industrial uses.
- Lead-free construction for safe use
- Compatible with ASTM B88/B280 seamless copper tube
- Suitable for soldered applications
Product Highlights
This copper union fitting is made from high-quality copper, ensuring durability and reliability in various installations.
Product Information
Standard Information
-
Manufacturer: Elkhart Products
-
UPC: 683264335851
Technical Specifications
-
Type: Straight
-
Size A: 1-1/4 Inch
-
Size B: 1-1/4 Inch
-
Thickness: 0.044 Inch
-
End Connection: Female Soldered x Female Soldered
-
Material: Copper
-
Process: Wrot
-
Pressure Rating: 215 PSI at 400 Deg F
-
Temperature Rating: -20 to 400 Deg F
-
Application: Residential, Industrial
-
Applicable Standard: ASME/ANSI B16.22, MSS-SP-104, NSF/ANSI 61G/372
-
Lead-Free: Yes
-
Used for: ASTM B88/B280 Seamless Copper Tube
