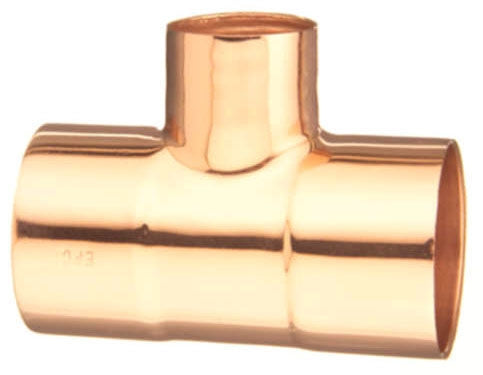

Elkhart Products 10033140 Tee Fitting 3 Inch x 3 Inch x 1/2 Inch

Product Description

The Elkhart Products 10033140 is a tee fitting designed for various plumbing applications. This copper fitting has a nominal size of three inches by three inches by one half inch. It features female soldered connections on all ends and is constructed using the wrot process.

• Lead-free construction
• Suitable for residential and industrial use
• Pressure rated up to 155 PSI at four hundred degrees Fahrenheit

Product Highlights

This tee fitting meets the standards of ASME/ANSI B16.22 and NSF/ANSI 61G. It is ideal for connecting seamless copper tubes in both residential and industrial settings.

Product Information

Standard Information

• Manufacturer: Elkhart Products
• UPC: 683264331402

Technical Specifications

• Type: Reducing
• Nominal Size: 3 Inch x 3 Inch x 1/2 Inch
• Thickness: 0.075 Inch
• Material: Copper
• End Connection: Female Soldered x Female Soldered x Female Soldered
• Pressure Rating: 155 PSI at 400 Deg F
• Temperature Rating: -20 to 400 Deg F
• Applications: Residential, Industrial
• Applicable Standards: ASME/ANSI B16.22, MSS-SP-104, NSF/ANSI 61G/372
