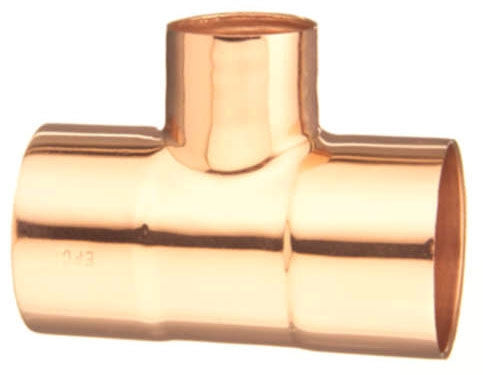

Elkhart Products 10033138 COF3X34T 3X3X3/4 CXCXC W TEE

Product Description

The Elkhart Products 10033138 is a reducing tee fitting suitable for various plumbing applications. This product features a nominal size of three inches by three inches by three-quarters of an inch. It offers solid construction from copper and is processed using a wrot method. The fitting has female soldered connections on all ends to ensure a secure fit.

• Lead-free construction
• Pressure rating of one hundred fifty-five PSI at four hundred degrees Fahrenheit
• Temperature rating range of minus twenty to four hundred degrees Fahrenheit

Product Highlights

This tee fitting is ideal for residential and industrial applications. It complies with applicable standards such as ASME/ANSI B16.22 and NSF/ANSI 61G/372.

Product Information

Standard Information

• Manufacturer: Elkhart Products
• UPC: 683264331389

Technical Specifications

• Type: Reducing
• Material: Copper
• Nominal Size: 3 Inch x 3 Inch x 3/4 Inch
• Thickness: 0.075 Inch
• End Connection: Female Soldered x Female Soldered x Female Soldered
• Pressure Rating: 155 PSI at 400 Deg F
• Temperature Rating: -20 to 400 Deg F
• Application: Residential, Industrial
• Applicable Standard: ASME/ANSI B16.22, MSS-SP-104, NSF/ANSI 61G/372
