Elkhart Products 10033128 Tee Fitting 3 Inch x 3 Inch x 2-1/2 Inch

Product Description

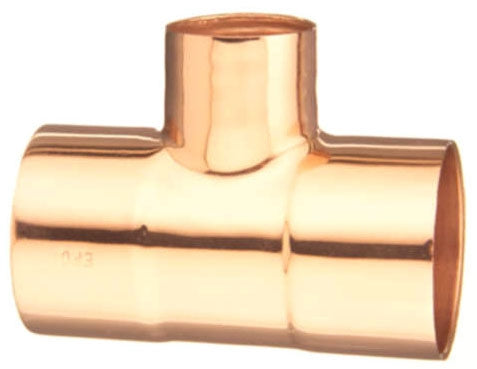

The Elkhart Products 10033128 is a reducing tee fitting with female soldered end connections. Constructed from copper using a wrot process, this fitting is suitable for industrial and residential applications. It has a pressure rating of 315 PSI at -20 to 100 Deg F and a temperature rating of 400 Deg F. Designed for use with ASTM B88/B280 seamless copper tubing.

• Type Reducing
• Nominal Size 3 Inch x 3 Inch x 2-1/2 Inch
• Made in USA

Product Highlights

Copper tee fitting for connecting three pipes, reducing from 3 inch x 3 inch to 2-1/2 inch.

Product Information

Standard Information

• Brand: ELKHART PRODUCTS
• Manufacturer Part Number: 10033128
• Country of Origin: USA

Technical Specifications

• Applicable Standard: ASME/ANSI B16.22, MSS-SP-104
• Application: Industrial, Residential
• End Connection: Female Soldered x Female Soldered x Female Soldered
• Material: Copper
• Nominal Size: 3 Inch x 3 Inch x 2-1/2 Inch
• Pressure Rating: 315 PSI at -20 to 100 Deg F
• Process: Wrot
• Product Sub-Type: Tee Fitting
• Product Type: Pipes/Valves/Fittings
• Temperature Rating: 400 Deg F
• Type: Reducing
• Thickness: 0.075 Inch
