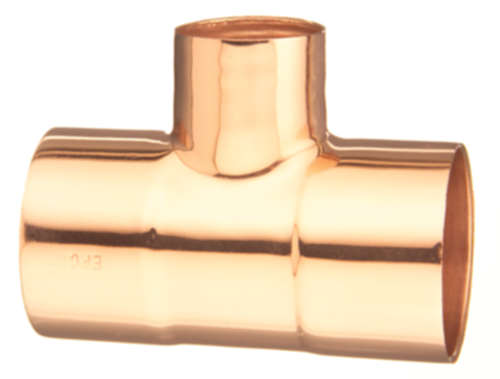

Elkhart Products 10033092 Reducing Tee Wrot Copper

Product Description

The ELKHART PRODUCTS 10033092 is a wrot copper reducing tee designed for sweat-solder copper piping systems in residential and commercial plumbing and HVAC hydronic applications. This fitting measures 2.5 inches on the run ends and 1 inch on the branch outlet, with a C x C x C (copper sweat) connection on all three ports. Wrot copper construction provides consistent wall thickness and superior pressure integrity compared to cast fittings. The fitting weighs 1.961 pounds and is suited for installations requiring a reliable, code-compliant branch takeoff from a 2.5-inch main line down to a 1-inch branch.

This reducing tee is used wherever a branch line must be tapped off a 2.5-inch copper main at a reduced diameter. Typical applications include domestic hot and cold water distribution, hydronic heating supply and return piping, and radiant system headers. Licensed plumbers and HVAC piping mechanics install this fitting using standard sweat-solder technique with appropriate flux and lead-free solder per applicable plumbing codes.

Key Features

• Wrot copper construction for consistent wall thickness and high-pressure integrity
• C x C x C solder connections on all three ports for leak-free sweat joints
• Run size of 2.5 inches with a 1-inch branch outlet for reducing branch takeoffs
• Compatible with lead-free solder and flux per current plumbing code requirements
• Overall dimensions of 4.18 x 6.61 x 2.78 inches for compact installation in tight spaces

Compatibility

Designed as an OEM-style replacement or new-installation wrot copper reducing tee for use in standard copper sweat piping systems following ASME B16.22 dimensional standards for wrought copper and copper alloy solder-joint pressure fittings.

Installation Notes

Installation should be performed by a licensed plumber in accordance with the applicable International Plumbing Code (IPC) or local equivalent. Shut off and drain the water supply completely before cutting into the existing line. Clean all pipe ends and fitting sockets with emery cloth or a pipe cleaning tool, apply approved lead-free flux, and sweat all joints with lead-free solder. Do not apply heat to a fitting that has not been fully dried, as residual moisture will prevent proper joint formation.

Technical Specifications

• Material: Wrot Copper
• Connection Type: C x C x C (Sweat Solder)
• Run Size: 2.5 inches
• Branch Size: 1 inch
• Dimensions (L x W x H): 4.18 x 6.61 x 2.78 inches
• Weight: 1.961 pounds
• UPC: 683264330924

Standard Information

• Brand: ELKHART PRODUCTS
• Manufacturer Part Number: 10033092
