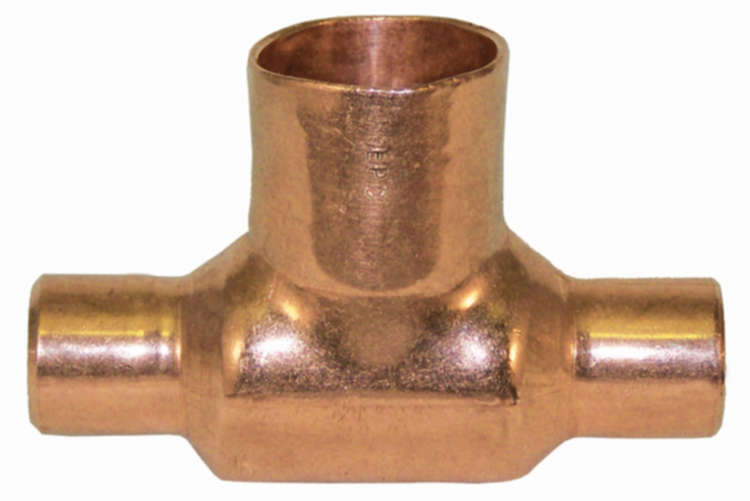

Elkhart Products 10032820 Wrot Copper Bullhead Tee

Product Description

The ELKHART PRODUCTS 10032820 is a wrot copper bullhead tee designed for sweat-solder copper piping systems in commercial and residential plumbing applications. This fitting connects a larger branch port of 1-1/2 inches to a run of 1 inch on each end, making it the correct choice when the branch diameter exceeds the run diameter — the defining characteristic of a bullhead configuration. All three ports use a standard cup-and-cup-and-cup (C x C x C) solder connection. Wrot copper construction delivers the pressure and corrosion resistance expected in pressure-rated plumbing assemblies. Licensed plumbers and pipefitters are the primary installers of this fitting.

This bullhead tee is suited for residential and light commercial copper water distribution systems where flow must be collected or distributed from a larger branch into a smaller run. The 1 inch x 1 inch x 1-1/2 inch configuration is common in supply manifold work, chilled-water piping, and domestic hot and cold water distribution where system design calls for reverse-flow branch sizing. Model designation is 111BH within the Elkhart Products WROT fitting line.

Key Features

• Bullhead configuration: 1-1/2 inch branch port into 1 inch x 1 inch run ports
• Wrot copper construction for pressure-rated, corrosion-resistant performance
• C x C x C solder connections compatible with standard sweat-soldering technique
• Compact form factor: 3.12 inches x 4.32 inches x 1.74 inches overall envelope
• Lightweight at 0.680 pounds for easy handling and overhead installation

Compatibility

Designed as an OEM-style wrot copper solder fitting for use in standard 1 inch and 1-1/2 inch copper tube systems conforming to ASTM B88 Type L and Type K dimensional standards.

Installation Notes

Installation should be performed by a licensed plumber in accordance with the applicable edition of the International Plumbing Code (IPC) and local jurisdiction requirements. Shut off and drain the affected water supply line before cutting and fitting. Clean all pipe ends and fitting cups with emery cloth and apply flux before soldering; follow lead-free solder requirements where mandated by local code. Allow the joint to cool fully before restoring system pressure.

Technical Specifications

• Material: Copper (Wrot)
• Connection Type: C x C x C (Solder)
• Run Size: 1 inch x 1 inch
• Branch Size: 1-1/2 inch
• Product Line: WROT
• Overall Dimensions (L x W x H): 3.12 inches x 4.32 inches x 1.74 inches
• Weight: 0.680 pounds
• UPC: 683264328204

Standard Information

• Brand: ELKHART PRODUCTS
• Manufacturer Part Number: 10032820
