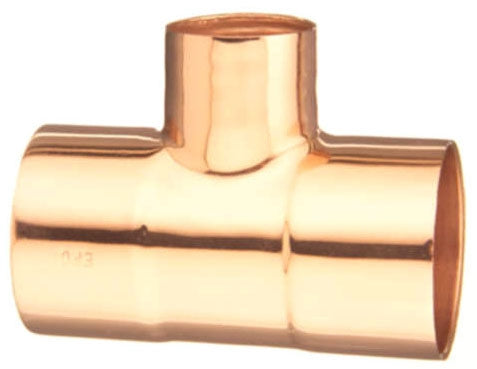

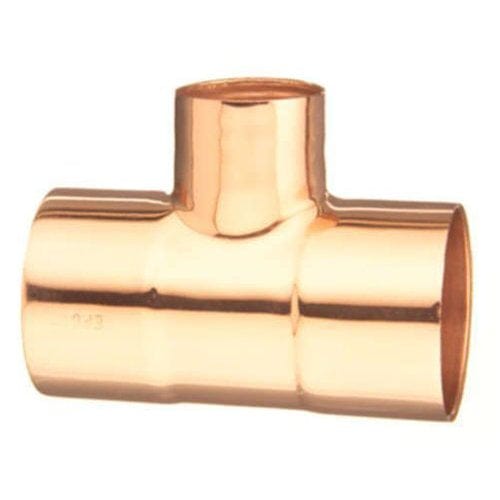

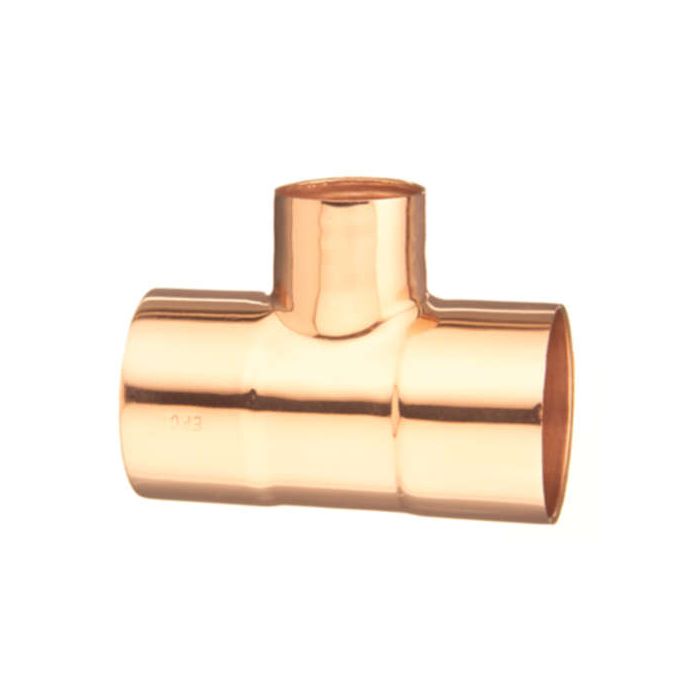

Elkhart Products 10032710 Tee Fitting 1/2 Inch x 1/2 Inch x 1/4 Inch

Product Description

The ELKHART PRODUCTS 10032710 is a tee fitting with reducing type. It has a nominal size of 1/2 Inch x 1/2 Inch x 1/4 Inch, a thickness of 0.029 Inch, and female soldered end connections. Constructed from wrot copper, it is pressure rated to 700 PSI and temperature rated to 400 Deg F. Suitable for industrial and residential applications.

• Environmentally safe production of copper fittings
• Made in USA
• Applicable Standard ASME/ANSI B16.22, MSS-SP-104

Product Highlights

The ELKHART PRODUCTS 10032710 tee fitting is ideal for use with ASTM B88/B280 seamless copper tubing.

Product Information

Standard Information

• Brand: ELKHART PRODUCTS
• Manufacturer Part Number: 10032710
• Country of Origin: USA

Technical Specifications

• Applicable Standard: ASME/ANSI B16.22, MSS-SP-104
• Application: Industrial, Residential
• End Connection: Female Soldered x Female Soldered x Female Soldered
• Material: Copper
• Nominal Size: 1/2 Inch x 1/2 Inch x 1/4 Inch
• Pressure Rating: 700 PSI
• Process: Wrot
• Product Sub-Type: Tee Fitting
• Product Type: Pipes/Valves/Fittings
• Series/Model: 111R
• Temperature Rating: 400 Deg F
• Thickness: 0.029 Inch
• Type: Reducing
• Size: 1/2" x 1/2" x 1/4"
• Connection Type: C x C x C
• connection: Sweat
• Features: Made in the USA, Lightweight and Strong, IAPMO approved, ANSI approved
