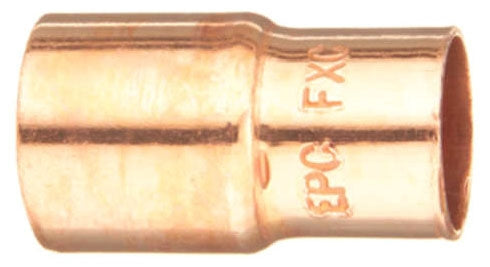

Elkhart Products 10032120 COF212X1B 2-1/2X1 FTGXC W REDUCER

Product Description

The Elkhart Products 10032120 is a reducer fitting designed for use in plumbing and HVAC applications. This fitting connects a two and a half inch male soldered end to a one inch female soldered end. It is crafted from copper and follows the wrot process for enhanced durability.

• Pressure rated for 335 PSI at temperatures ranging from negative twenty to one hundred degrees Fahrenheit.
• Constructed to meet ASME/ANSI B16.22 and MSS SP104 standards.
• Compatible with ASTM B88 and B280 seamless copper tubing.

Product Highlights

This fitting is suitable for industrial, residential, and commercial applications. It is made from copper to ensure long-lasting performance and reliability.

Product Information

Standard Information

• Manufacturer: Elkhart Products
• UPC: 683264321205

Technical Specifications

• Size A: 2-1/2 Inch
• Size B: 1 Inch
• Thickness: 0.067 Inch
• Material: Copper
• Process: Wrot
• Pressure Rating: 335 PSI at -20 to 100 Deg F
• Temperature Rating: 400 Deg F
• Applicable Standard: ASME/ANSI B16.22, MSS SP104
