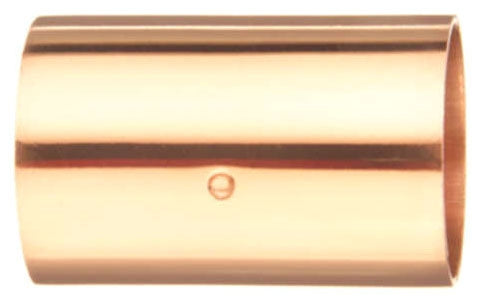

Elkhart Products 10030896 COF14CPL 1/4 Copper W/Stop CXC Wrot Coupling

Product Description

The Elkhart Products 10030896 is a coupling fitting designed for plumbing applications. It features a nominal size of one quarter inch and is made from durable copper. This coupling offers female soldered connections on both ends and can withstand pressures of up to seven hundred psi. It is suitable for use in both industrial and residential settings.

• Nominal Size: 1/4 inch
• Material: Copper
• Pressure Rating: 700 PSI

Product Highlights

This product is ideal for connecting seamless copper tubing in plumbing systems.

Product Information

Standard Information

• Manufacturer: Elkhart Products
• UPC: 683264308961

Technical Specifications

• Type: Stop
• Size A: 1/4 inch
• Size B: 1/4 inch
• Thickness: 0.023 inch
• End Connection: Female Soldered x Female Soldered
• Process: Wrot
• Pressure Rating: 700 PSI
• Temperature Rating: 400 Deg F
• Application: Industrial, Residential
• Applicable Standard: ASME/ANSI B16.22, MSS SP104, UL (Canada and US), LEED
