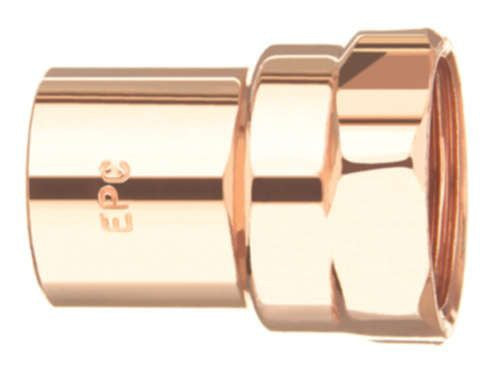

Elkhart Products 10030182 COF112X2ACXF 1-1/2X2 CXF W ADAPTER

Product Description

The Elkhart Products 10030182 is a copper fitting designed for various plumbing applications. This adapter fitting is specifically a female reducing type. Size A measures one and a half inches, while Size B measures two inches. This fitting serves as a reliable means to connect different pipe sizes.

• Made from durable copper material
• Pressure rated at 405 PSI from negative twenty to one hundred degrees Fahrenheit
• Meets ASME/ANSI B16.22 and MSS SP-104 standards

Product Highlights

Ideal for residential and industrial applications, this fitting ensures strong connections and reliable performance.

Product Information

Standard Information

• Manufacturer: Elkhart Products
• UPC: 683264301825

Technical Specifications

• Type: Female, Reducing
• Size A: 1-1/2 Inch
• Size B: 2 Inch
• Thickness: 0.051 Inch
• End Connection: Female Soldered x Female Threaded
• Material: Copper
• Material Specification: ASTM B88/B280
• Process: Wrot
• Pressure Rating: 405 PSI at -20 to 100 Deg F
• Temperature Rating: 400 Deg F
• Application: Residential, Industrial
• Applicable Standard: ASME/ANSI B16.22, MSS SP-104, LEED
