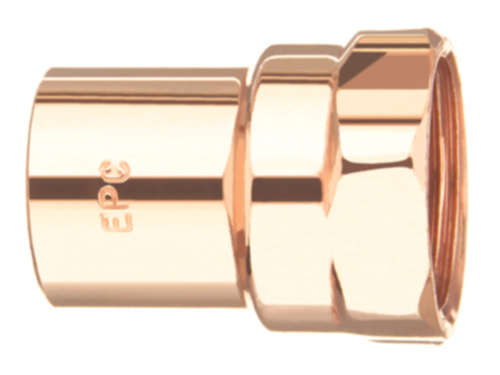

Elkhart Products 1/4 Copper Female Adapter Wrot C X F

Product Description

The ELKHART PRODUCTS 1/4 COPPER is a WROT copper female adapter designed for sweat-solder connections in residential and commercial plumbing and HVAC refrigerant piping systems. This fitting connects copper tubing to a female threaded port using a C x F (copper-to-female) configuration. At 0.031 pounds, it is a compact, lightweight fitting sized at 1/4 inch. The all-copper construction ensures corrosion resistance and reliable thermal performance in both hot and cold water lines as well as low-pressure refrigerant applications. Plumbers and HVAC technicians install this type of fitting when transitioning from soldered copper tubing to a threaded female connection point on valves, gauges, or equipment.

This adapter is suited for 1/4 inch copper tubing installations in residential and light commercial plumbing, hydronic heating, and HVAC systems. The C x F end accepts standard copper tubing on the sweat side and connects to any compatible female-threaded port on the opposite end. It is part of the ELKHART PRODUCTS WROT copper fitting line, which is manufactured to standard dimensional tolerances for consistent fitment in production and service work alike.

Key Features

• 1/4 inch C x F configuration for copper-to-female-thread transitions
• WROT copper construction for corrosion resistance and solderability
• Solder-type connection for a permanent, leak-resistant joint
• Compact dimensions: 0.80 x 0.81 x 0.66 inches
• Lightweight at 0.031 pounds — suitable for tight spaces and close-quarter work

Compatibility

Designed as an OEM-style replacement or new-installation fitting for 1/4 inch copper tubing systems using standard sweat-solder and female-thread connections.

Installation Notes

Installation should be performed by a licensed plumber or HVAC technician following applicable IPC or IFGC guidelines for soldered copper fittings. Shut off the water or refrigerant supply and relieve system pressure completely before cutting into any existing line. Clean and flux both the tubing end and fitting socket before applying heat to ensure a full, void-free solder joint. Avoid overheating the fitting, as excessive heat can damage nearby components or compromise joint integrity.

Technical Specifications

• Size: 1/4 inch
• Connection Type: C x F (Copper Sweat x Female Thread)
• Join Method: Solder
• Product Line: WROT
• Material: Copper
• Dimensions (L x W x H): 0.80 x 0.81 x 0.66 inches
• Weight: 0.031 pounds
• UPC: 683264301108

Standard Information

• Brand: ELKHART PRODUCTS
• Manufacturer Part Number: 1/4 COPPER
