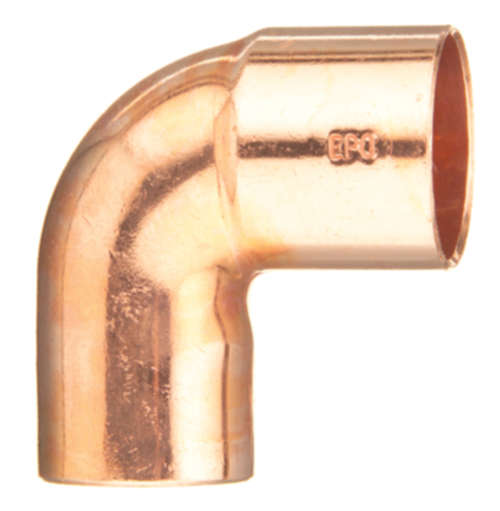

Elkhart Products 1/2 Copper 90 Street Elbow Wrot Ftg X C

Product Description

The ELKHART PRODUCTS 1/2 COPPER is a wrought copper 90-degree street elbow designed for close-rough solder connections in residential and commercial plumbing and HVAC refrigerant piping systems. This fitting uses an FTG x C (fitting-to-copper) configuration, meaning one end accepts a male fitting end and the other accepts a standard copper tube. Weighing just 0.042 pounds, it is a compact, lightweight component sized for 1/2-inch copper tube with a 5/8-inch OD ACR specification. Wrought copper construction ensures consistent wall thickness and reliable solder joints, making this elbow a dependable choice for tight-clearance directional changes in copper piping runs.

This 90-degree street elbow is suited for use in residential and light commercial plumbing supply lines, hydronic heating systems, and ACR refrigerant piping where a 90-degree directional change is required in a close-rough configuration. The FTG x C connection allows it to mate directly to another fitting without an additional tube stub, saving space in confined installations. It is installed by licensed plumbers and HVAC technicians working with 1/2-inch copper tubing systems requiring solder-joined fittings.

Key Features

• Wrought copper construction for consistent wall thickness and strong solder joints
• 90-degree street elbow geometry for directional changes in tight spaces
• FTG x C connection eliminates need for an additional tube stub between fittings
• Compatible with 1/2-inch copper tube and 5/8-inch OD ACR applications
• Lightweight at 0.042 pounds for easy handling in overhead or confined work areas

Compatibility

Designed as an OEM-style replacement and standard-use fitting for 1/2-inch copper solder-joint piping systems in plumbing and HVAC refrigerant applications.

Installation Notes

Installation should be performed by a licensed plumber or HVAC technician in accordance with applicable local codes, the International Plumbing Code (IPC), and ASHRAE standards for refrigerant piping. Shut off and depressurize the water or refrigerant system and drain all fluid before cutting into existing lines. Clean tube ends and fitting sockets thoroughly with emery cloth and apply appropriate flux before soldering. Avoid overheating the fitting during the soldering process, as excessive heat can damage the joint integrity of wrought copper fittings.

Technical Specifications

• Size: 1/2 inches
• OD ACR: 5/8 inches
• Material: Copper
• Product Line: WROT
• Connection Type: FTG x C
• Joint Type: Solder
• Model: 107C2
• Dimensions (L x W x H): 1.36 x 1.23 x 0.70 inches
• Weight: 0.042 pounds
• UPC: 683264314009

Standard Information

• Brand: ELKHART PRODUCTS
• Manufacturer Part Number: 1/2 COPPER
