Elkhart Products 1 1/2X1 1/ 90 Deg Reducing Elbow Copper

Product Description

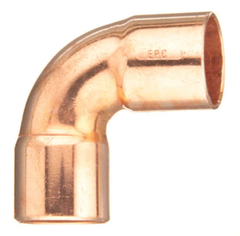

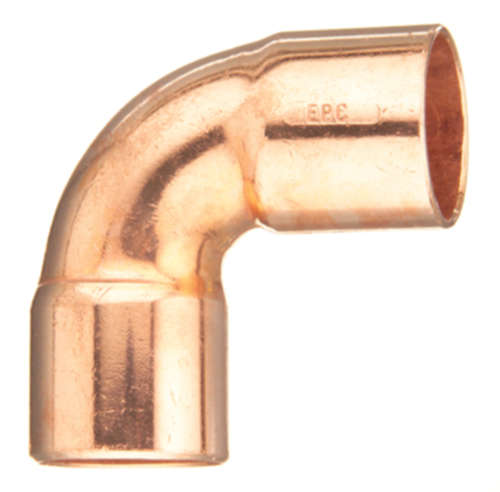

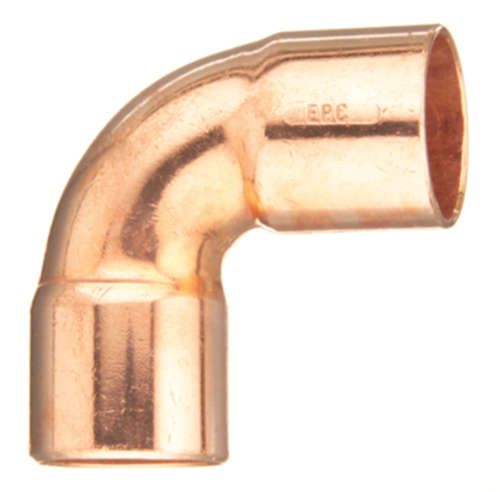

The ELKHART PRODUCTS 1 1/2X1 1/ is a wrot copper 90-degree reducing elbow designed for soldered copper tubing systems. It transitions from a 1.5-inch connection to a 1.25-inch connection in a close-rough configuration, making it a practical fitting for redirecting and reducing flow within the same assembly. At 0.338 pounds and compact dimensions of 2.98 inches x 2.70 inches x 1.74 inches, this elbow is suited for tight spaces in residential and light commercial plumbing installations. Plumbers and pipefitters specify wrot copper fittings for their consistent wall thickness, pressure integrity, and reliability in potable water and hydronic systems.

This fitting is used in copper tubing installations where a 90-degree directional change and a reduction in pipe size are required in a single fitting. The C x C (copper-to-copper) solder connection type makes it compatible with standard sweat-solder assembly methods. Typical applications include domestic water supply lines, radiant heating distribution piping, and other closed-loop systems where copper is the specified material. The close-rough body style keeps the fitting compact, which is useful when working within wall cavities or mechanical chases with limited clearance.

Key Features

• Wrot copper construction for consistent wall thickness and pressure performance
• 90-degree reducing configuration transitions 1.5 inches to 1.25 inches in a single fitting
• C x C solder connection compatible with standard sweat-solder methods
• Close-rough body style minimizes overall footprint in confined spaces
• Lightweight at 0.338 pounds for easy handling during installation

Compatibility

Designed as an OEM-style wrot copper solder fitting for use with 1.5-inch and 1.25-inch copper tubing in standard residential and commercial plumbing systems.

Installation Notes

Installation should be performed by a licensed plumber in accordance with applicable local plumbing codes and IPC guidelines. Shut off and drain the supply line before cutting and fitting. Clean all mating surfaces with emery cloth and apply flux before soldering to ensure a leak-free joint. Avoid overheating the fitting during the sweat-solder process, as excessive heat can compromise the copper or nearby components.

Technical Specifications

• Material: Copper (Wrot)
• Connection Type: C x C (Solder)
• Fitting Angle: 90 Degrees
• Inlet Size: 1.5 inches
• Outlet Size: 1.25 inches
• Weight: 0.338 pounds
• Length: 2.98 inches
• Width: 2.70 inches
• Height: 1.74 inches
• UPC: 683264313163

Standard Information

• Brand: ELKHART PRODUCTS
• Manufacturer Part Number: 1 1/2X1 1/
