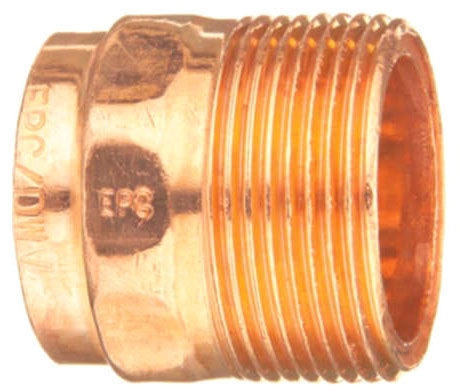

Elkhart 10046040 CDF2ACXM 2 DWV CXM ADAPTER

Product Description

The Elkhart 10046040 is a CDF2ACXM two-inch DWV CXM adapter fitting designed for reliable connections in plumbing systems. This adapter features a straight, male design and makes it easy to join two sections of pipe. It is suitable for residential and industrial applications, offering robust performance where needed.

• Lead-free brass construction
• Suitable for DWV, industrial, and residential applications
• Pressure rating up to 180 PSI at 400 degrees Fahrenheit

Product Highlights

This adapter allows for straightforward installation and is compliant with NSF/ANSI standards for safe drinking water applications. It can handle temperature ranges from negative twenty to four hundred degrees Fahrenheit.

Product Information

Standard Information

• Brand: Elkhart
• MPN: 10046040

Technical Specifications

• Type: Straight, Male
• Size A: 2 Inch
• Size B: 2 Inch
• Thickness: 0.059 Inch
• End Connection: Female Soldered x Male Threaded
• Material: Copper
• Process: Wrot
• Pressure Rating: 180 PSI at 400 Deg F
• Temperature Rating: -20 to 400 Deg F
• Application: DWV, Industrial, Residential
• Applicable Standard: NSF/ANSI 61G/372, ASME/ANSI B16.29, MSS SP104
• Product Type: Pipes/Valves/Fittings
• Product Sub-Type: Adapter Fitting
• Series/Model: 304
