Product Description

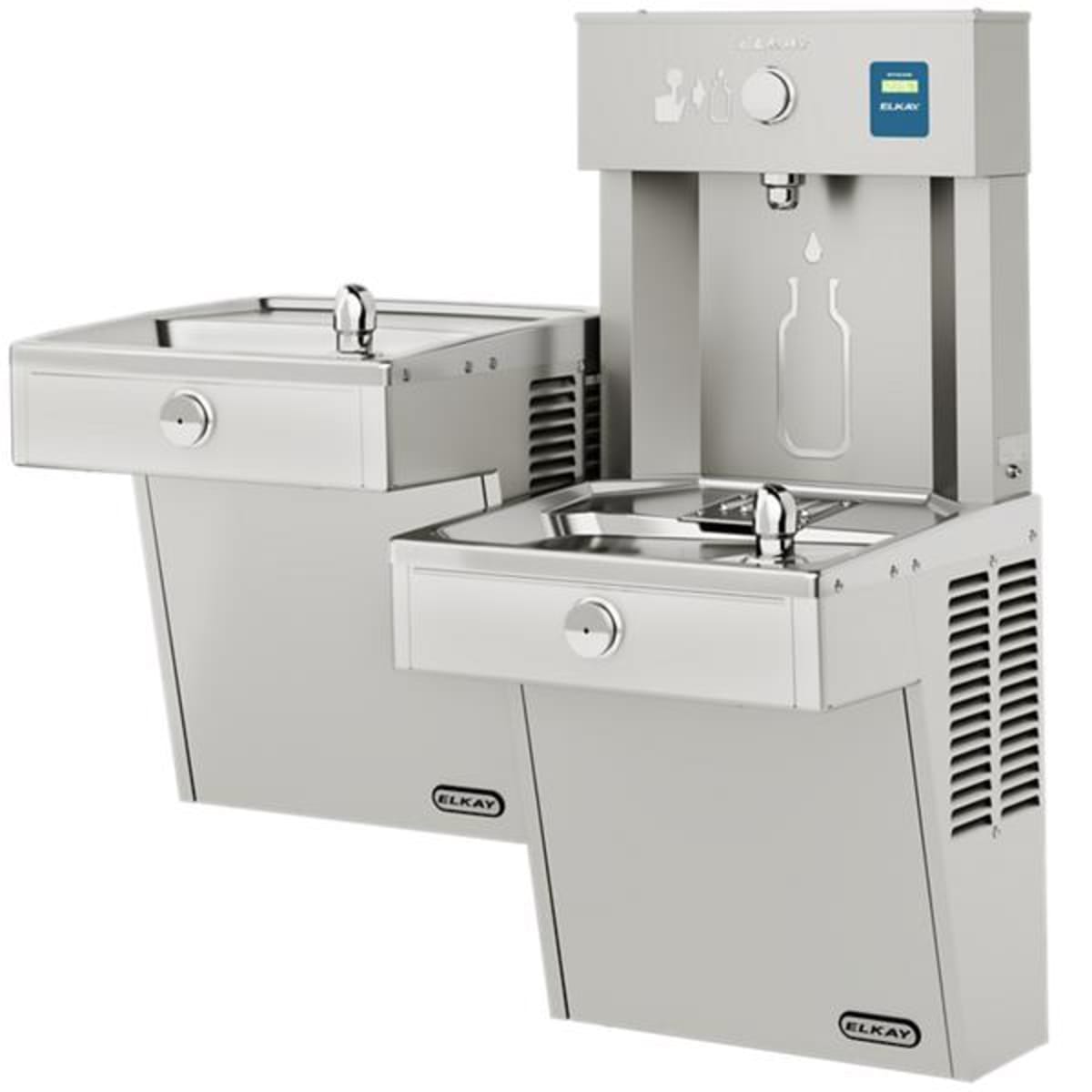

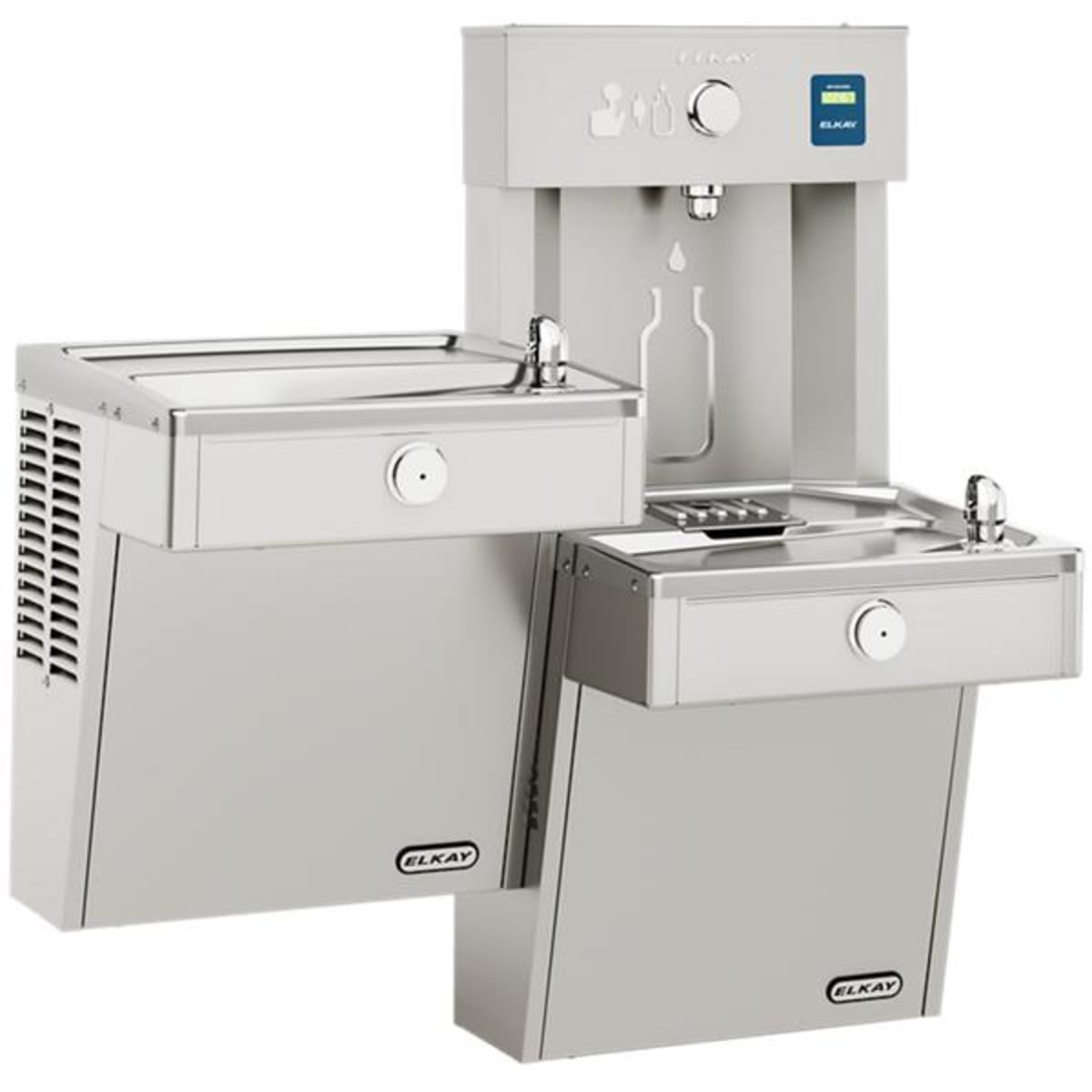

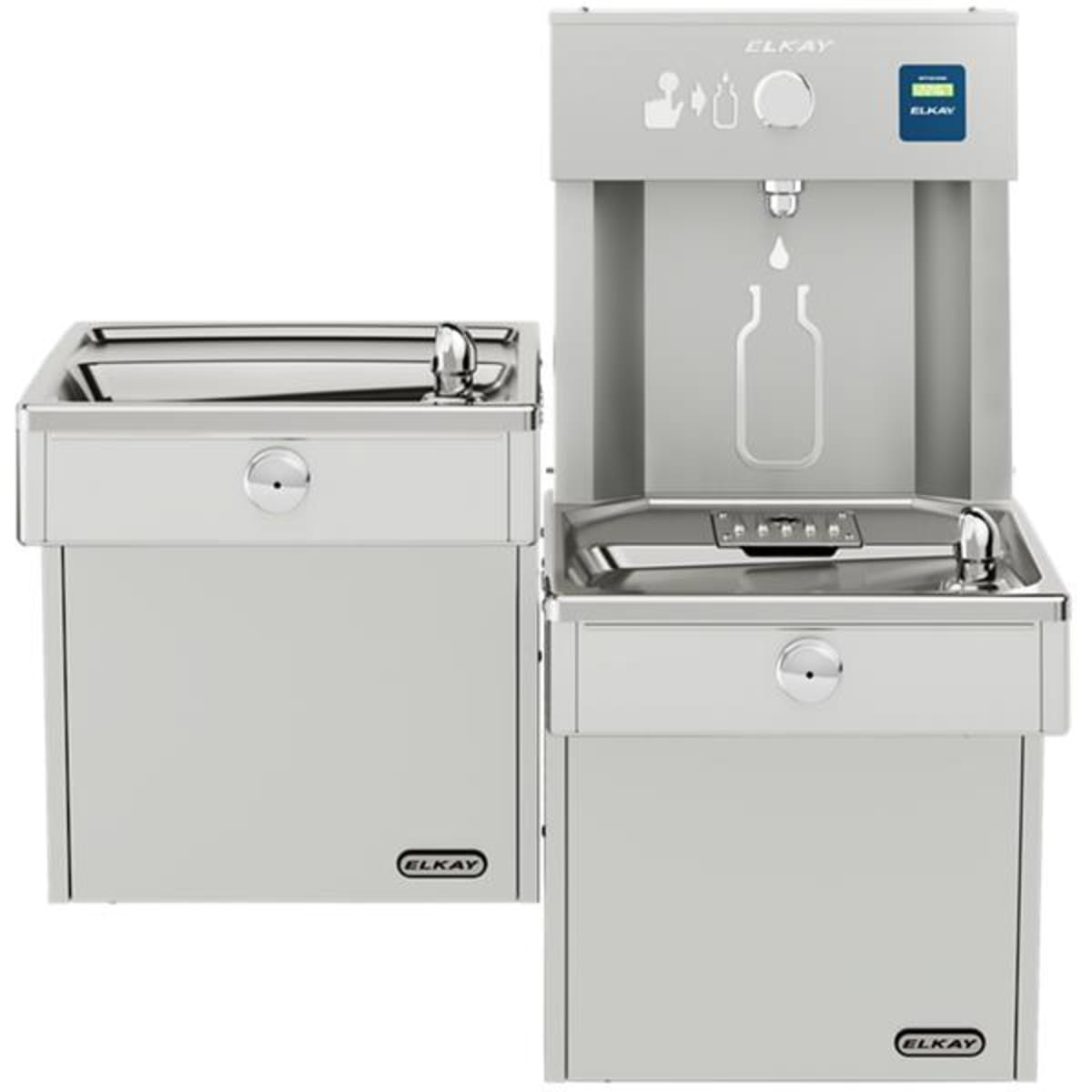

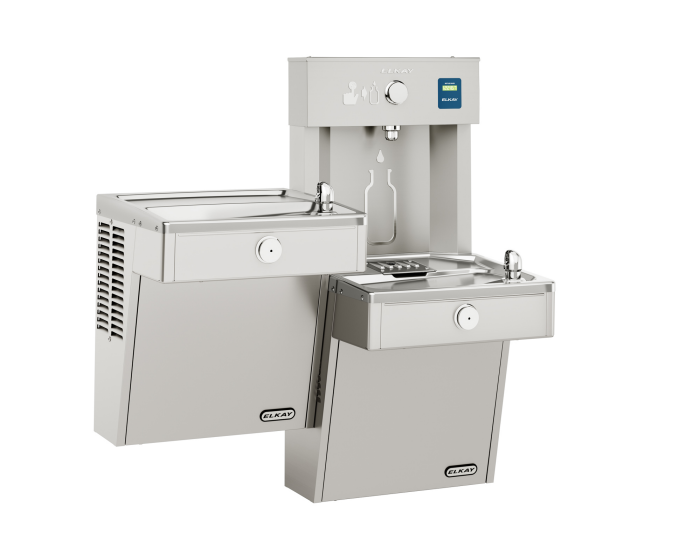

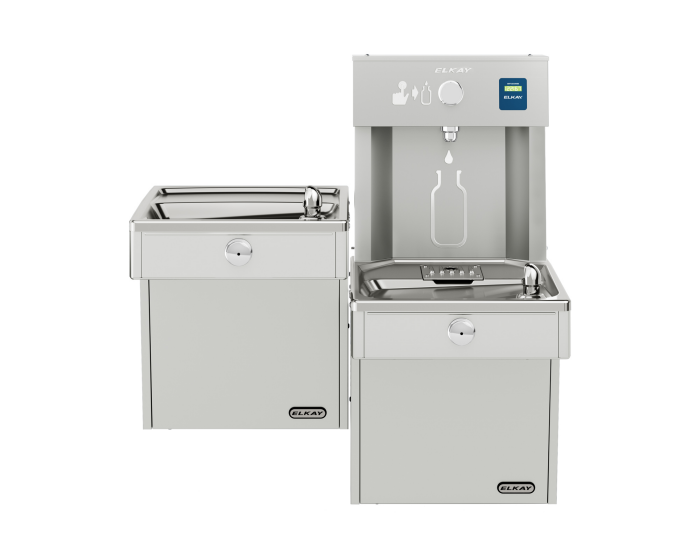

The Elkay VRCTLDDWSK EZH2O Bottle Filling Station delivers a clean, quick water bottle fill and enhances sustainability by minimizing dependency on disposable plastic bottles. This vandal-resistant cooler and bottle filling station features a space-saving ADA compliant design and pushbutton activation with automatic 20-second shut-off timer. Ideal for indoor and outdoor heavy-use installations.
- Vandal-resistant, push-button activation for both the bottle filler and the water cooler.
- Fill rate is 1.5 GPM.
- Green Ticker informs user of number of 20 oz. plastic water bottles saved from waste.
Product Highlights
The Elkay VRCTLDDWSK bottle filling station is perfect for high-traffic areas. Its durable stainless steel construction and vandal-resistant features ensure lasting performance.
Product Information
Standard Information
-
Brand: ELKAY
-
Manufacturer Part Number: VRCTLDDWSK
-
Country of Origin: United States
Technical Specifications
-
Width: 18.6250
-
Height: 38.8125
-
Length: 36.1250
-
Unit_Width: 18.6250
-
FinishColor: Stainless Steel Tones
-
Finish_Name: Stainless Steel
-
ADA_Compliant: Yes
-
Buy_America_Act_Compliant: No
-
Commercial_or_Residential: Primarily Commercial
-
Bubbler Style: Vandal-Resistant
-
Mounting Type: Wall Mount (On-Wall)
-
Brand: Elkay
-
Depth [Specifications]: 36.125"
-
Width [Specifications]: 18.625"
-
Height [Specifications]: 38.8125"
-
Voltage [Specifications]: 115V/60Hz
-
Includes [Specifications]: Water Cooler (VRCTLDDWSC), Bottle Filler (VRCWS)
-
Material [Specifications]: Stainless Steel
-
ADA Compliant [Specifications]: Yes
-
Indoor / Outdoor [Specifications]: Indoor/Outdoor
-
Number of Levels [Specifications]: 2
-
Number of Stations: 2
-
Features: Green Ticker
Laminar Flow
Real Drain
Vandal Resistant
-
Power: 115V/60Hz
-
Chilling Capacity: Non-refrigerated
-
Installation Location: Indoor + Outdoor
-
Filtered: No
-
Code Compliance: ASME A112.19.3/CSA B45.4
CSA B45.4
CSA C22.2 No. 120
UL 399
NSF 61
NSF 372
-
Mount: Wall / Surface
-
Operation: Push Button
-
Basin(s): Stainless Steel, Brushed Finish
-
Cabinet(s): Stainless Steel, Brushed Finish
-
Bubbler(s): Chrome Plated Vandal Resistant
-
Cooled: No
-
Status Display: LCD Green Ticker Bottle Counter
-
Overall Dimensions: 38-13/16" Tall x 36-1/8" Width x 18-5/8" Deep
-
Rough-in: Not applicable
-
Manufacturer Model No.: VRCTLDDWSK
-
Country of Manufacture: USA
-
Manufacturer: Elkay
-
Model #: VRCTLDDWSK
-
UPC Code: 094902771885
-
Mounting Location: Wall Mounted
-
Outdoor Rated: Yes
-
Vandal-Resistant Bubbler: Yes
-
Finish: Stainless Steel
-
Activation: Vandal-resistant, push-button activation for both the bottle filler and the water cooler
-
Other Features: Green Ticker informs user of number of 20 oz. plastic water bottles saved from waste. Laminar flow provides clean fill with minimal splash. Vandal-resistant bubblers feature chrome-plated integral hood guard to prevent contamination from other users, airborne deposits and tampering. Rated for indoor/outdoor use.
-
Cooler cabinet finish: Stainless steel
-
Mounting details: Wall mount (on-wall)
-
Chilling details: Non-refrigerated GPH
-
Number of stations: Two stations
-
Product compliance: ADA & ICC A117.1, ASME A112.19.3/CSA B45.4, Buy American Act, CAN/CSA C22.2 No. 120, GreenSpec, NSF 61, NSF 372 (lead free), UL 399
