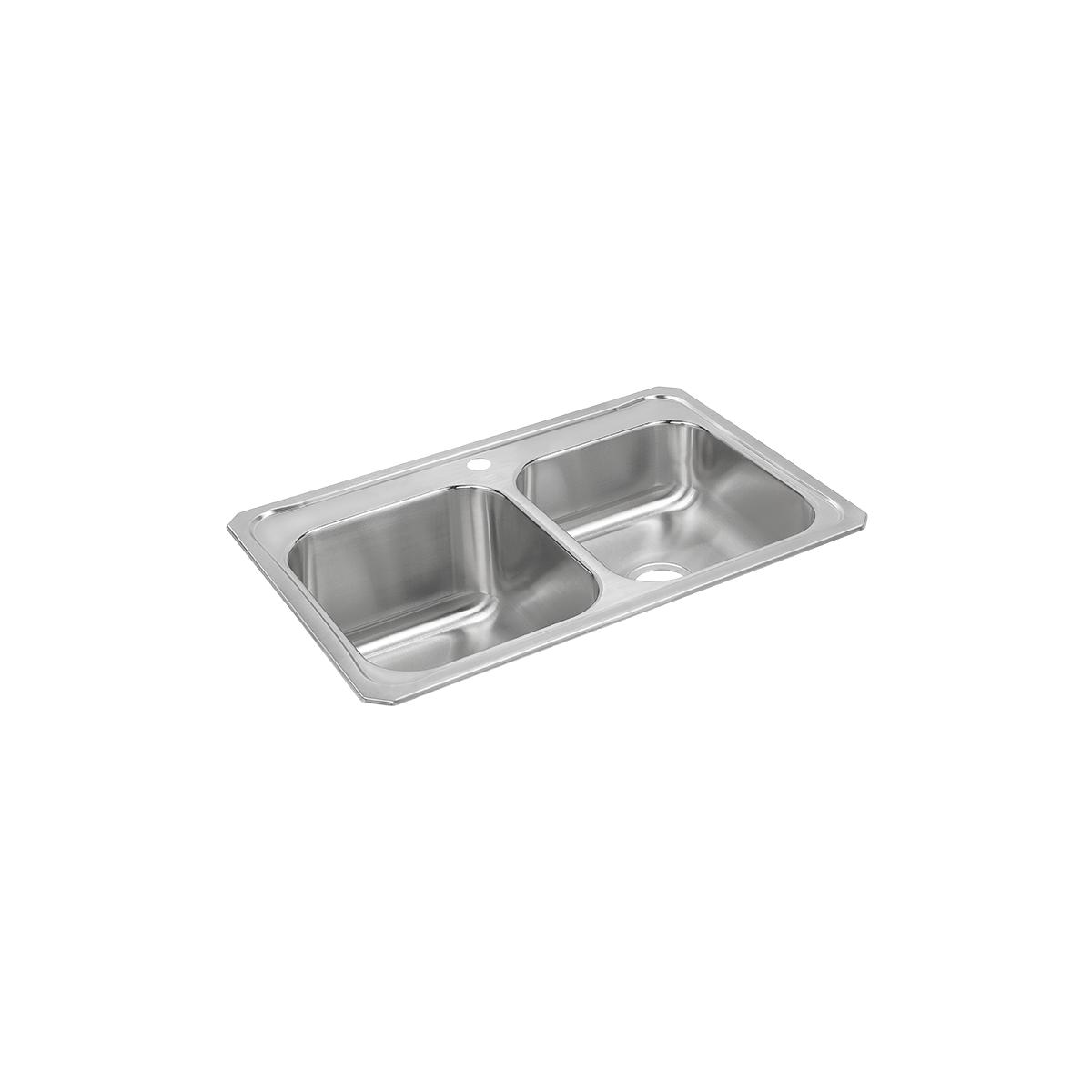

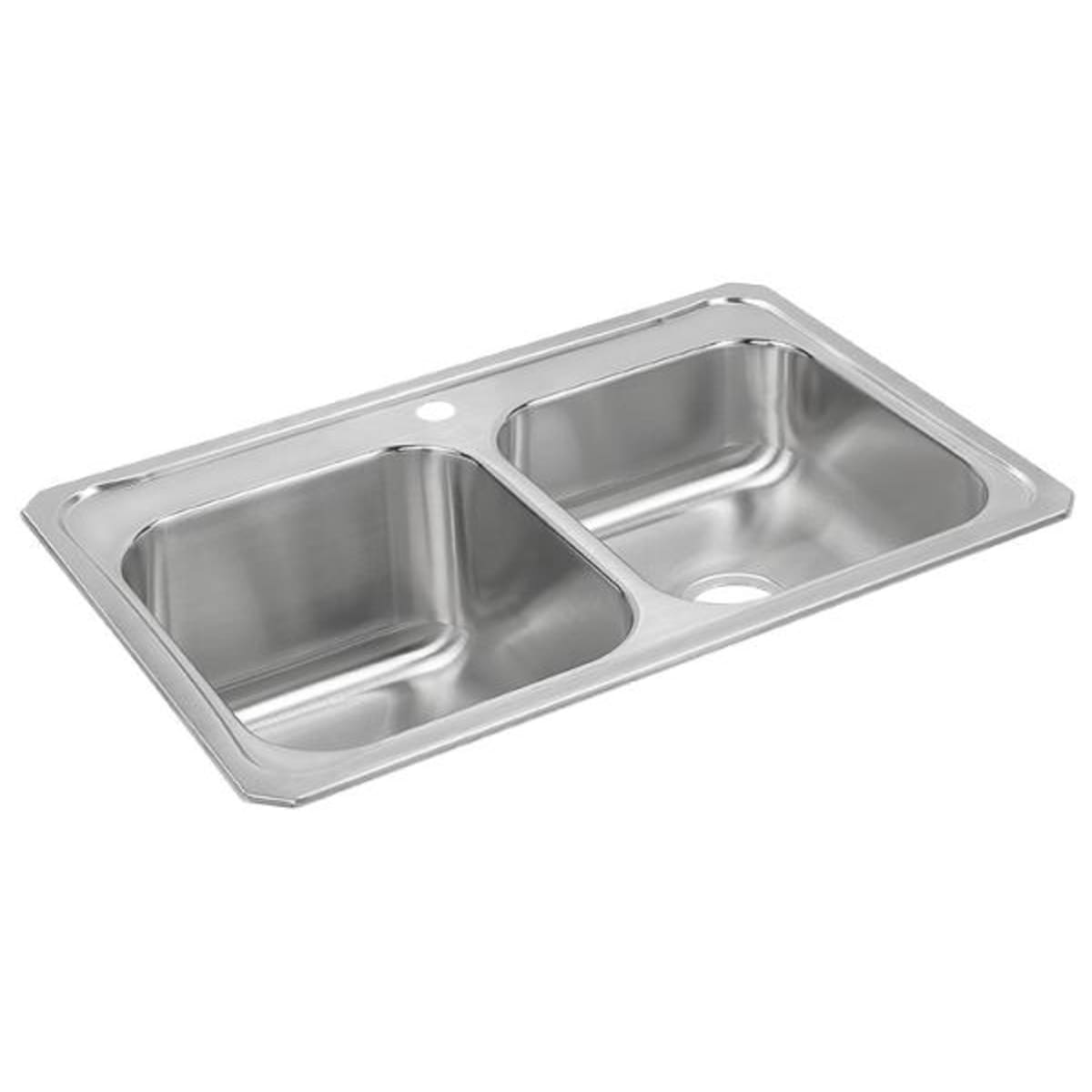

Elkay STCR3322L1 Celebrity stainless steel drop-in double bowl 33 x 22 x 10-1/4 (STCR3322L1)

Product Description

The Elkay STCR3322L1 is a Celebrity series 33 x 22 x 10-1/4 inch stainless steel drop-in double-bowl kitchen sink designed for residential use. It is formed from Type 304, 20-gauge stainless steel and includes sound-deadening pads and U-channel mounting for installation. The sink features two bowls with center 3-1/2 inch drains, one faucet hole, a 32-3/8 x 21-3/8 inch cutout, and mounting hardware for countertops up to 3/4 inch. Made in USA.

• 20-gauge Type 304 stainless steel construction with sound-deadening pads
• Drop-in installation with U-channel mounting and included mounting hardware for countertops up to 3/4 inch (19 mm)
• Double-bowl design with center 3-1/2 inch drains, one faucet hole, and 32-3/8 x 21-3/8 inch cutout

Product Highlights

33 x 22 x 10-1/4 in drop-in double-bowl sink, 20-gauge Type 304 stainless steel, center 3-1/2 in drains, made in USA

Product Information

Standard Information

• Brand: ELKAY
• Manufacturer Part Number: STCR3322L1
• Country of Origin: USA

Technical Specifications

• Brand: Elkay
• Manufacturer Part Number: STCR3322L1
• Model / SKU: ELKA-STCR3322L1
• Collection: Celebrity
• Material: Type 304 stainless steel
• Gauge: 20-gauge
• Finish: Brushed satin
• Dimensions (Overall): 33 x 22 x 10-1/4 inches
• Inside Bowl Dimensions: Bowl 1: 15.75 x 14 x 10 inches; Bowl 2: 15.75 x 14 x 7 inches
• Basin Depth: 10.25 inches
• Number of Bowls: 2
• Bowl Split: 50/50
• Installation Type: Drop-In
• Mounting Type: U-channel mounting
• Mounting Hardware Included: Part # 64090014 included for countertops up to 3/4 inch (19 mm)
• Number of Faucet Holes: 1
• Drain Size: 3.5 inches (3-1/2") in each bowl
• Center Drain: Yes
• Cutout Dimension: 32-3/8 x 21-3/8 inches (822 mm x 543 mm) with 1-1/2 inch corner radius
• Minimum Cabinet Size: 36 inches
• Country of Origin: USA
• Sound Deadening: Sound-deadening pads
• Corner Radius: 3 inch vertical x 2-1/4 inch horizontal
• Item Weight: 13.1 lb
• Shape: Rectangular
• Certifications: cUPC certified; IAPMO listed
