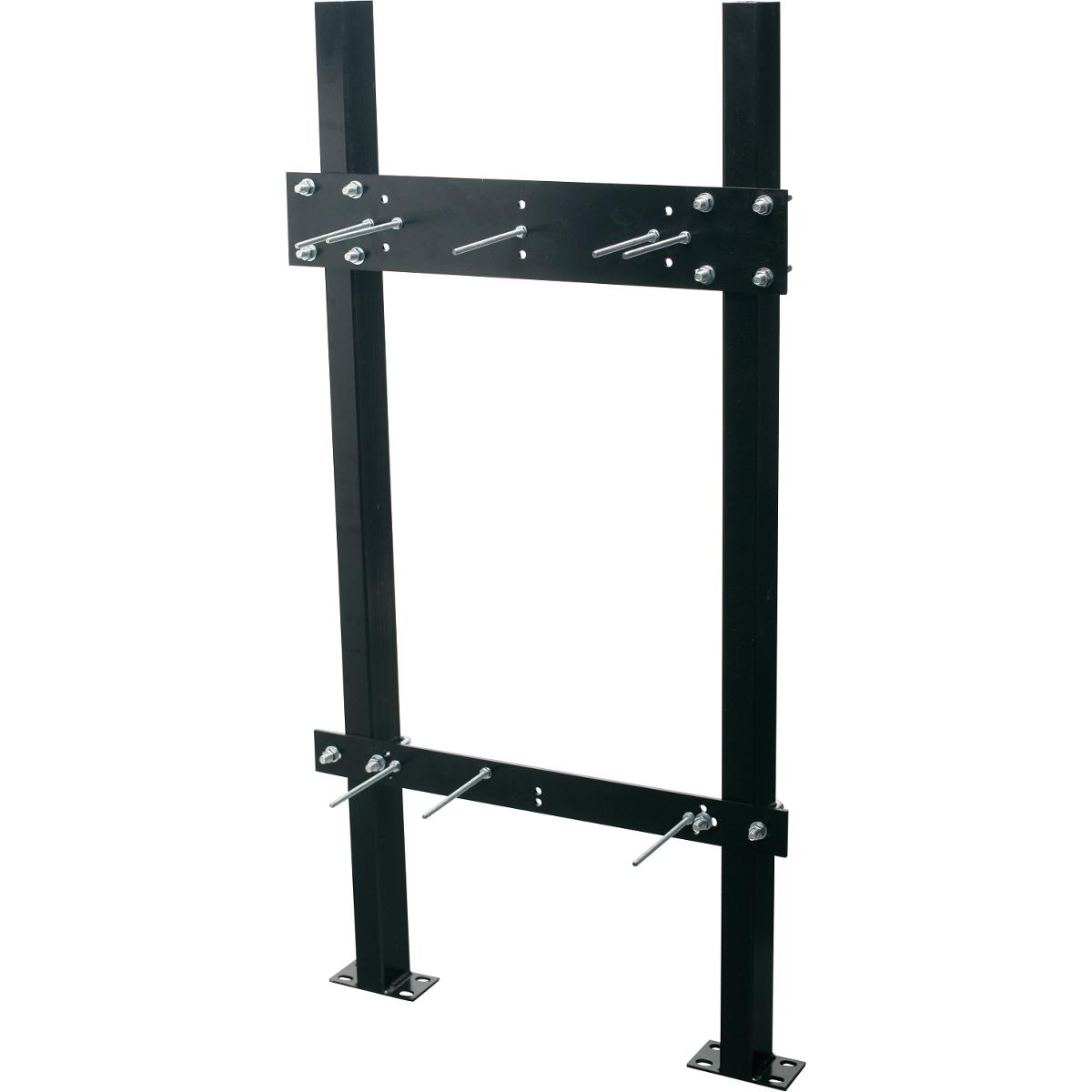

Elkay MLP100 In-Wall Carrier Mounting System For EZSTL, EMABFTL & VRCTL Models

Product Description

The Elkay MLP100 is an in-wall carrier mounting system designed for single-station bottle fillers, water coolers, and drinking fountains. It is suitable for use with EZ, LZ, EMABF, LMABF, VRC, and LVRC models. This system is ideal for high-traffic environments such as medical facilities, schools, office buildings, and airports.

• Universal design provides additional support and stability.
• Can be installed in walls of two by four inches.
• Constructed from heavy-gauge steel, it supports weights up to five hundred pounds.

Product Highlights

This mounting system offers adjustable heights to accommodate both adults and children, ensuring ADA compliance. Built in the USA for reliable quality and performance.

Product Information

Standard Information

• Product Type: Mounting Frame/Carrier
• Brand: Elkay

Technical Specifications

• Length: 20.75 inches
• Width: 2.69 inches
• Height: 44.125 inches
• Weight: 36 lbs
