Elkay LZSDWSLK ezH2O Bottle Filling Station 115V (Single) 51300C

Brand: ELKAY
SKU: LZSDWSLK
Availability: In Stock

Ships via freight in 1-3 business days

$2,310.30
$2,310.30
LTL Delivery

This product weighs 55 lb each and will be shipped via LTL carrier. A lift gate option will be added free of charge for your convenience.

HAVE A QUESTION?

Our team is ready to help!

  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Product Description

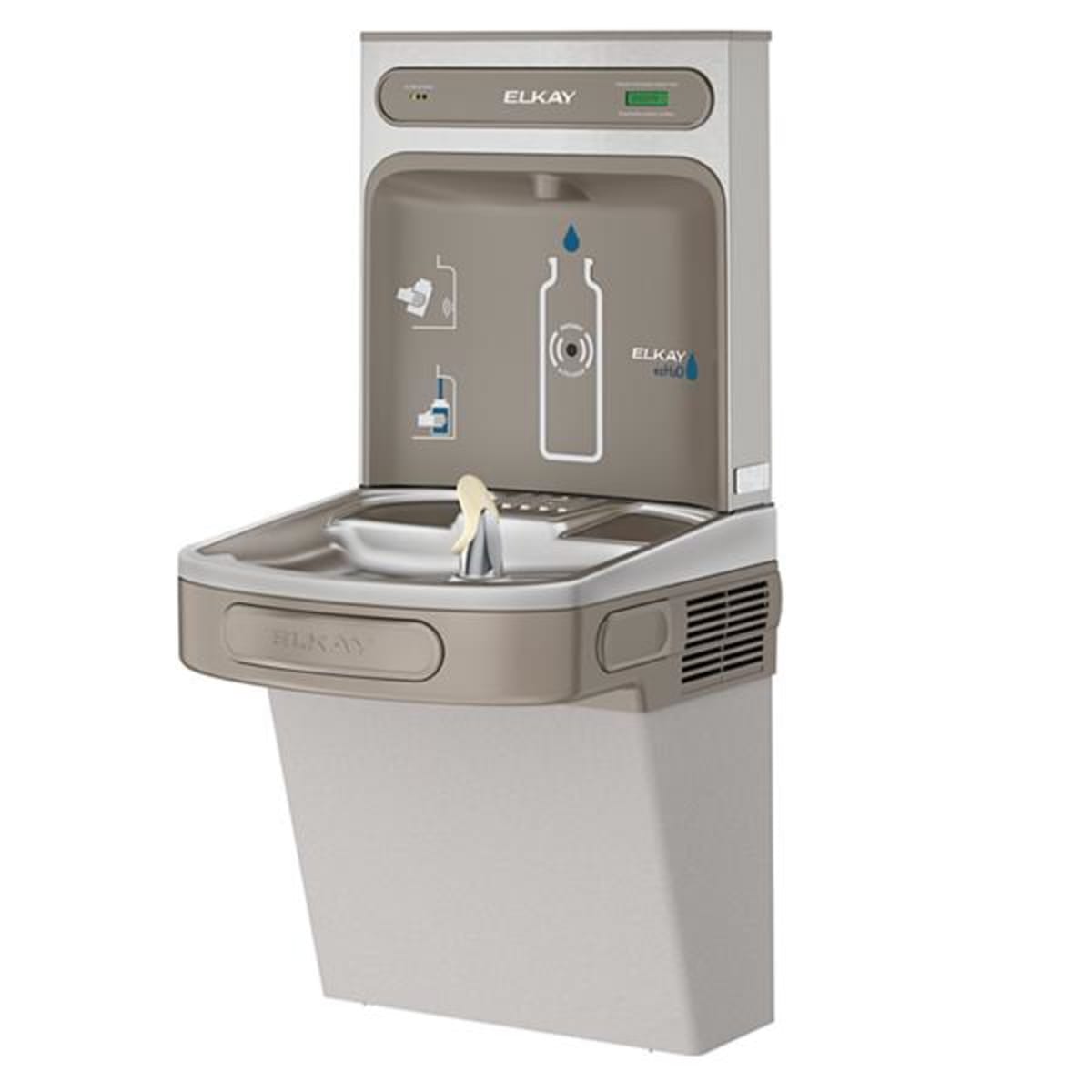

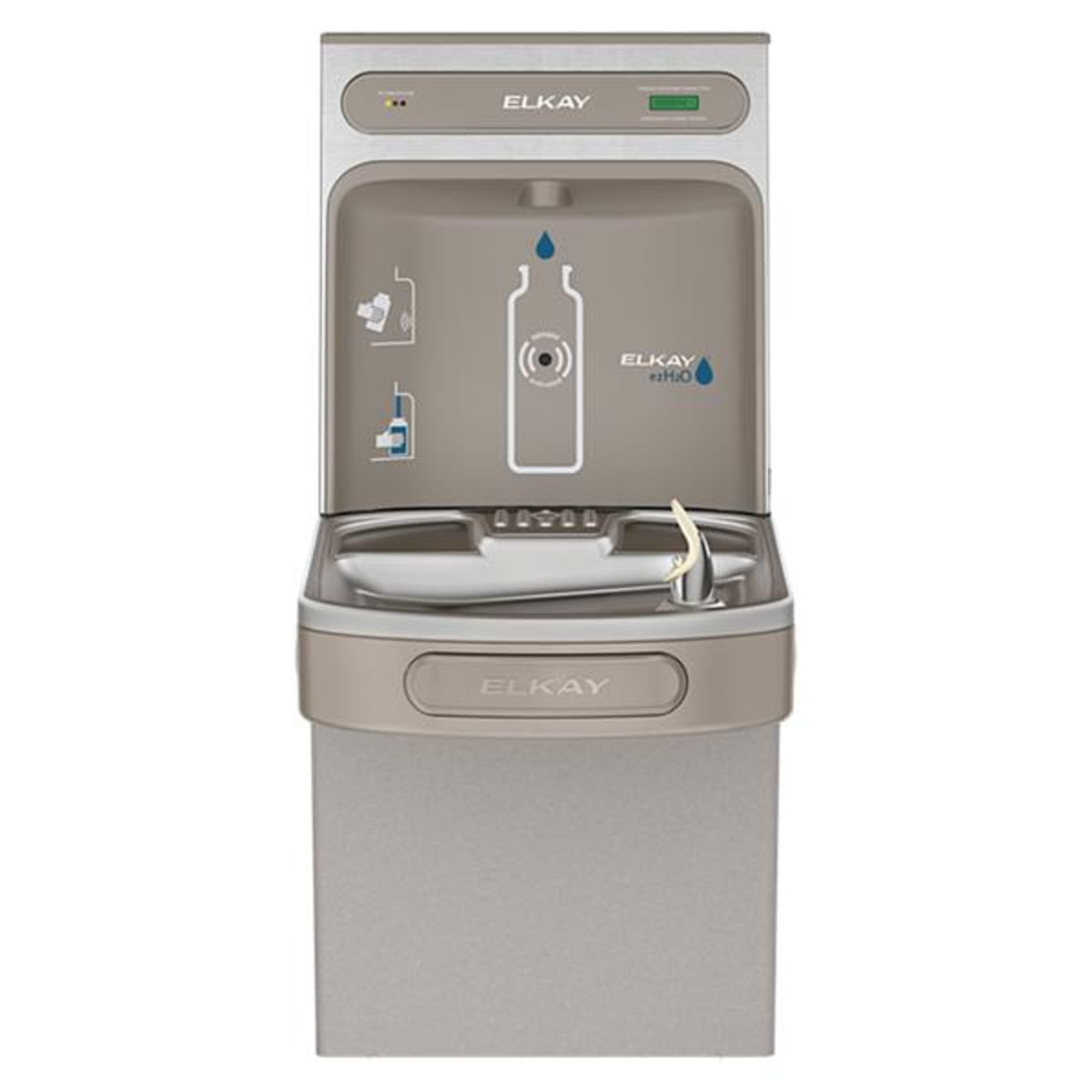

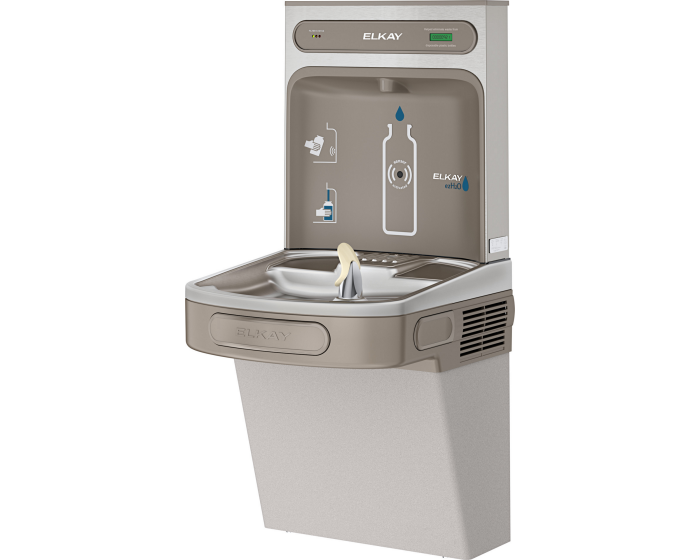

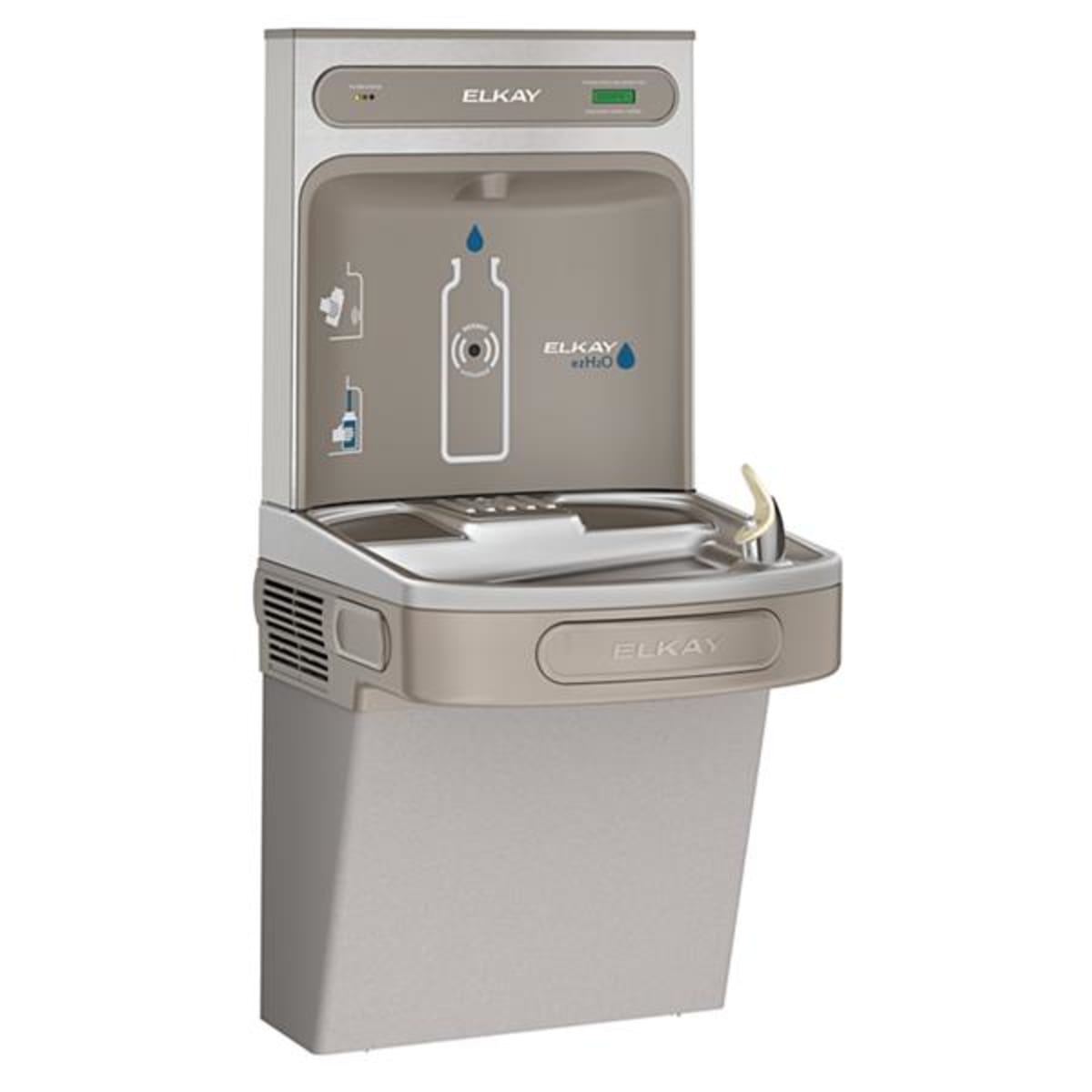

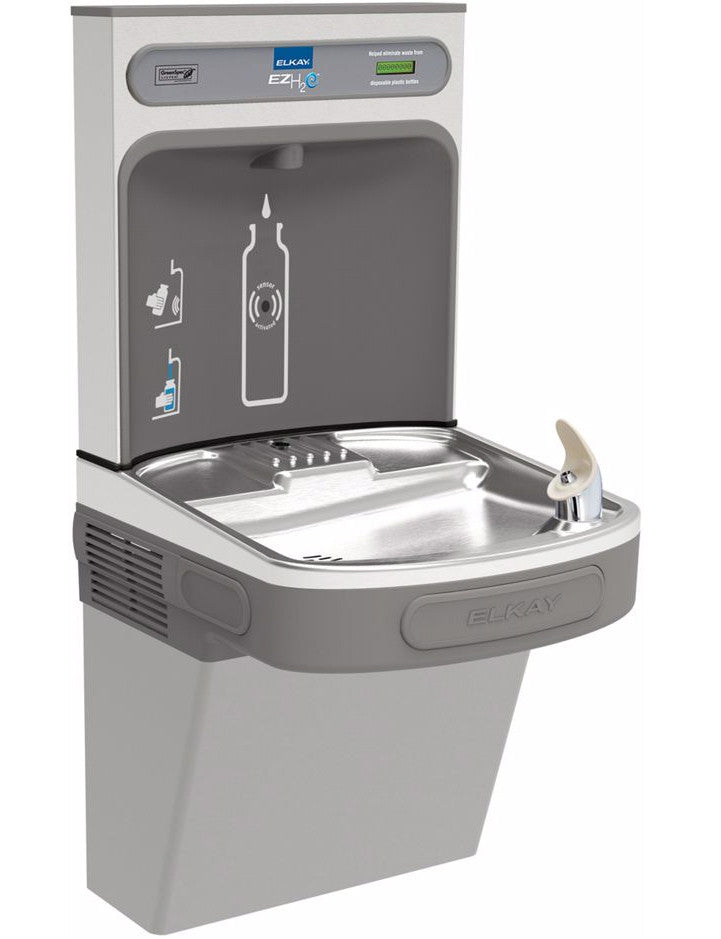

Elkay LZSDWSLK is an ezH2O wall-mounted bottle filling station with an integrated single ADA cooler and non-refrigerated, filtered bottle filler. The unit provides touchless sensor bottle filling with an automatic 20-second shut-off, a push-bar-activated bubbler, a WaterSentry 51300C 3,000-gallon filter certified to NSF 42 and 53, an LED filter status indicator and a Green Ticker bottle counter for indoor installations.

  • Touchless electronic bottle filler with 20-second automatic shut-off and laminar flow at 1.5 GPM
  • Includes WaterSentry 51300C 3,000-gallon filter (NSF 42 and 53) with LED visual filter monitor and Green Ticker
  • Wall-mount ADA compliant design with stainless steel basin, real drain to eliminate standing water, and push-bar bubbler

Product Highlights

Filtered, non-refrigerated wall-mounted ADA bottle filling station with touchless sensor, 3,000-gallon WaterSentry filter, LED filter status, Green Ticker counter, and 115V power.

Product Information

Standard Information

  • Brand: ELKAY
  • Manufacturer Part Number: LZSDWSLK
  • Country of Origin: United States
Technical Specifications
Brand
Elkay
Manufacturer Part Number
LZSDWSLK
Model
LZSDWSLK
Filter Model
WaterSentry 51300C
Filter Capacity
3,000-gallon
Filter Certifications
NSF 42; NSF 53
Refrigeration
Non-refrigerated (ambient water)
Mounting Type
Wall mount
ADA Compliant
Yes
Activation Method
Touchless electronic sensor (bottle filler); front/side push-bar (fountain)
Fill Rate
1.5 GPM
Flow Type
Laminar flow
Dimensions (L x W x H)
18.375 x 19.0 x 39.0625 inches
Unit Width
19 in
Unit Height
39.06 in
Unit Length
18.38 in
Input Voltage
115 V AC
Power Consumption
15 W
Full Load Amps
1.1 A (NOTE: value is inconsistent with 15 W at 115 V � see validation notes)
Weight
55 lb
Basin Material
Stainless steel
Chassis Material
Galvanized structural steel
Drain Connection
1 1/4 in OD
User Interface
LED filter status indicator; Green Ticker bottle counter
Antimicrobial Protection
Silver ion antimicrobial on key plastic components; Flexi-Guard antimicrobial bubbler
Standards and Certifications
NSF 42; NSF 53; ADA; UL 399; CAN/CSA 22.2 No. 120; ASME A112.19.3/CSA B45.4; NSF 61; NSF 372
Installation Location
Indoor
Operation
Electronic sensor for bottle filler; pushbar for fountain
Number of Fountains
1 (single ADA cooler with bottle filler)
