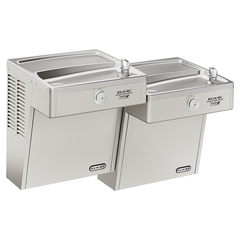

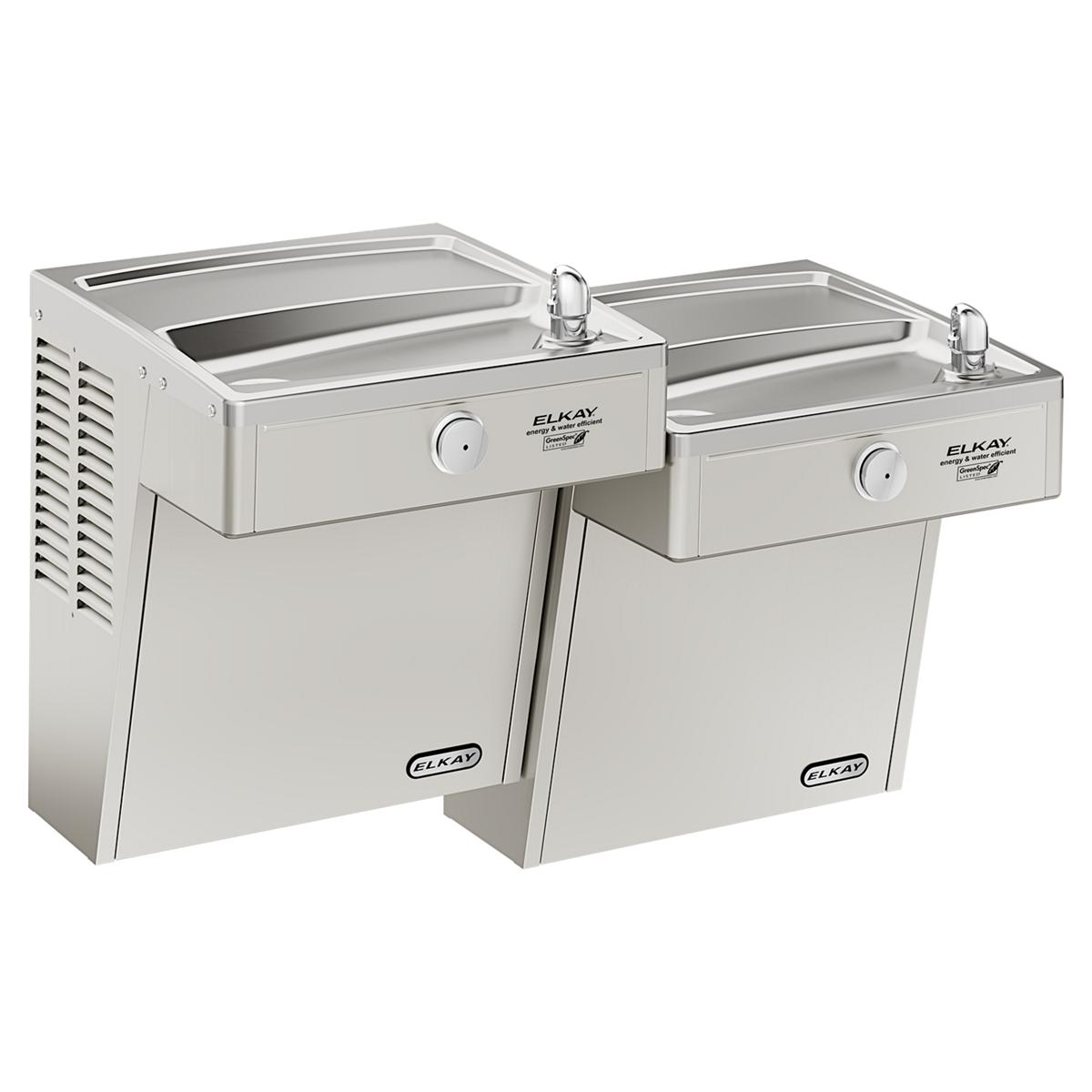

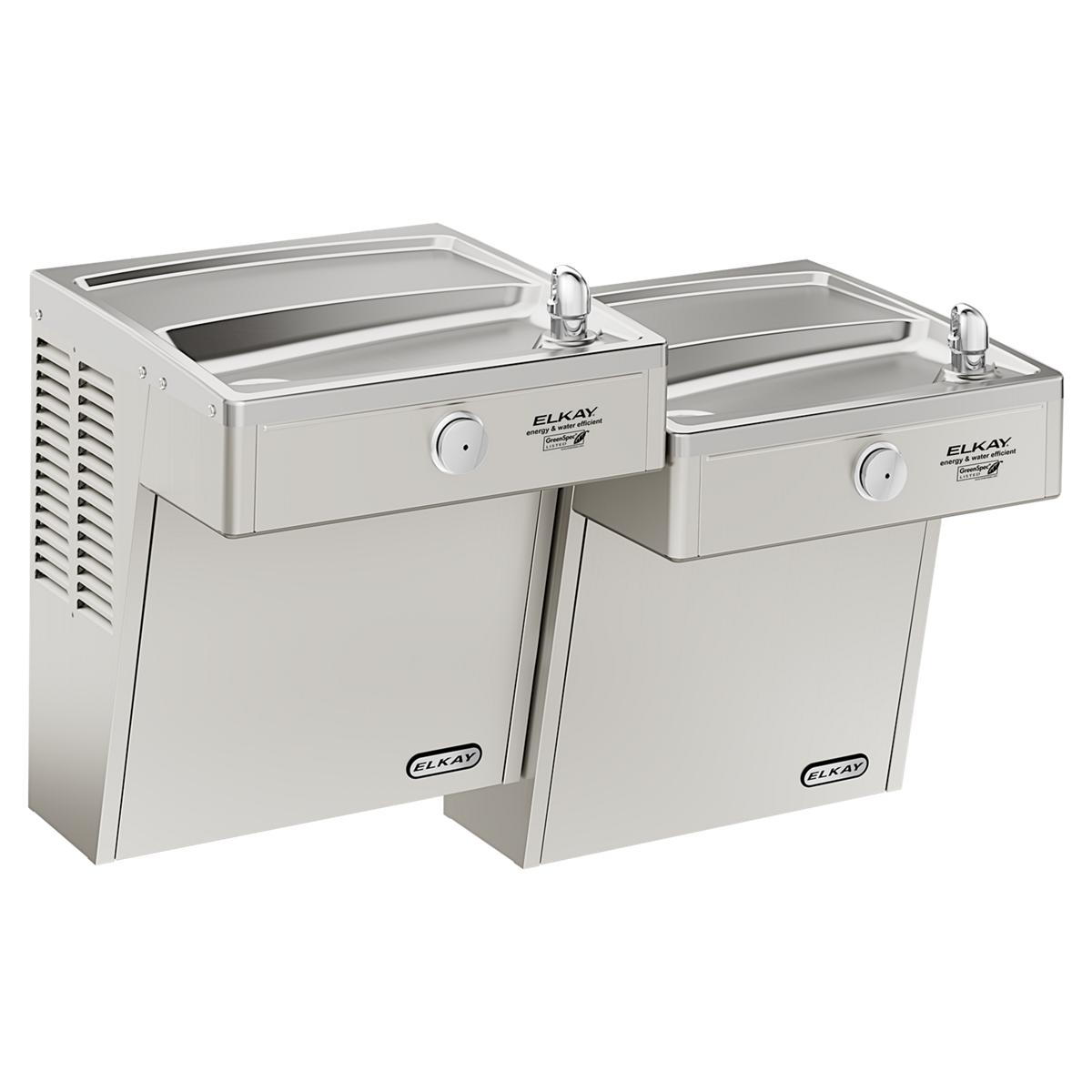

Elkay LVRCGRNTL8C Bi-level Ada Water Cooler 8 Gph

Product Description

The ELKAY LVRCGRNTL8C is a wall-mount, bi-level drinking water cooler built for high-traffic commercial and institutional environments. It delivers chilled, filtered water at a rated flow of 8 gallons per hour (GPH) and meets ADA accessibility requirements with its dual-height bubbler configuration. The unit is constructed in stainless steel and features vandal-resistant components designed to hold up in schools, transit facilities, correctional facilities, and similar demanding settings. A built-in filtration system reduces contaminants at the point of use. This cooler is installed by licensed plumbers and requires both a potable water supply connection and an electrical circuit.

The LVRCGRNTL8C is suited for wall-mount installation in commercial, institutional, and public-use buildings where ADA compliance is required. The bi-level design serves both standing users and wheelchair users from a single unit. Vandal-resistant construction makes it appropriate for high-abuse environments such as schools, correctional facilities, transit hubs, and parks. The integrated filter reduces particulates and common taste-and-odor compounds, supporting a consistent water quality standard without a separate filter housing.

Key Features

• Bi-level ADA-compliant design serves both standing and wheelchair-height users
• 8 GPH chilling capacity for high-traffic demand
• Vandal-resistant construction for high-abuse environments
• Integrated filtration at point of use
• Stainless steel construction for durability and cleanability
• Wall-mount configuration conserves floor space

Compatibility

Designed as an OEM wall-mount bi-level water cooler for commercial and institutional plumbing systems requiring ADA-compliant, filtered, refrigerated drinking water stations.

Installation Notes

Installation should be performed by a licensed plumber in accordance with applicable local plumbing codes and IPC requirements. Shut off the potable water supply and de-energize the electrical circuit before beginning work. The unit requires both a cold water supply line connection and a dedicated electrical supply; verify voltage and circuit requirements against the unit nameplate before wiring. ADA mounting height requirements must be confirmed during rough-in to ensure compliant bubbler positioning.

Technical Specifications

• Chilling Capacity: 8 GPH
• Configuration: Bi-Level
• Mounting Type: Wall Mount
• Material: Stainless Steel
• ADA Compliant: Yes
• Vandal Resistant: Yes
• Filtration: Integrated
• UPC: 094902629223

Standard Information

• Brand: ELKAY
• Manufacturer Part Number: LVRCGRNTL8C
