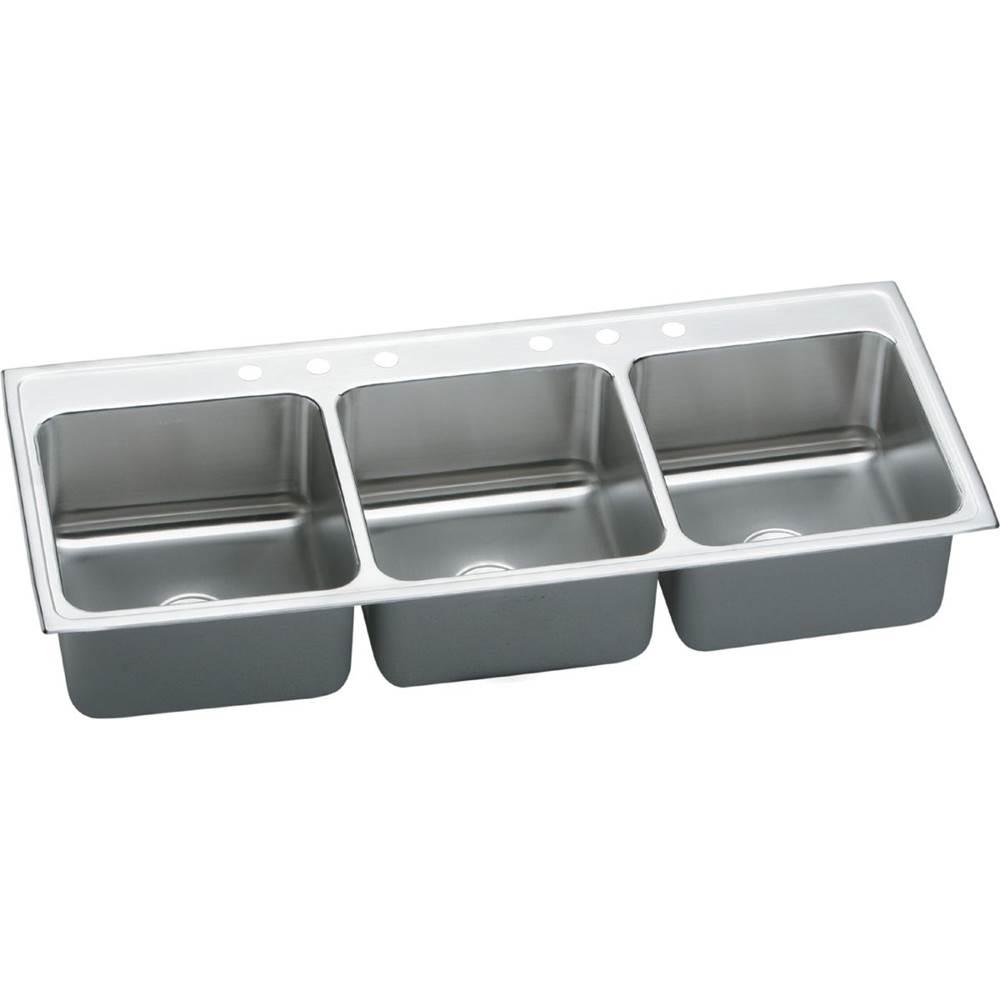

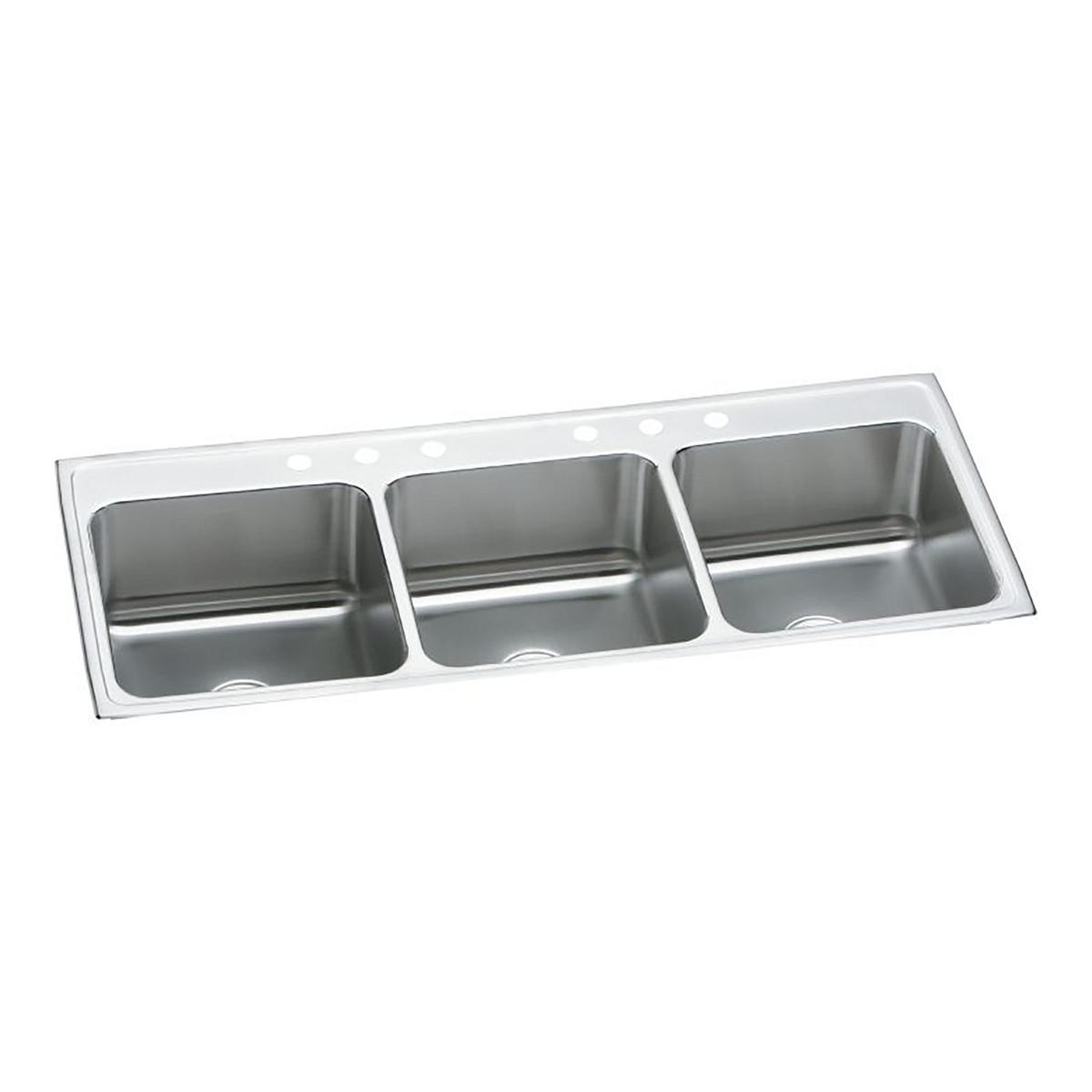

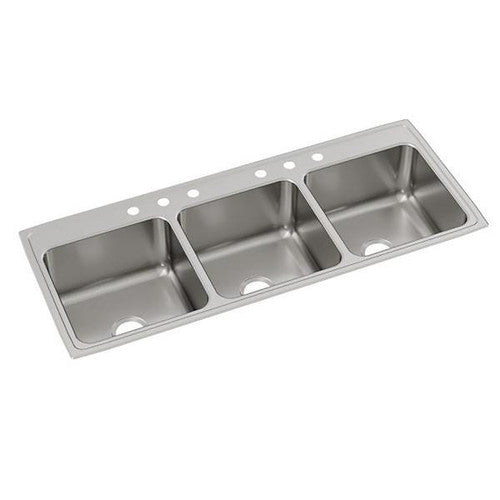

Elkay LTR6322106 Lustertone Classic Stainless Steel 63 inches x 22 inches x 10-1/8 inches Triple Bowl Drop-in Sink

Product Description

The Elkay LTR6322106 Lustertone Classic stainless steel sink looks as great on day 3,000 as it does on day one. The rich, uniform grain is scratch resistant for heavy-duty use. Light scratches blend into the finish with time, while deeper scratches are repairable with an Elkay stainless steel restoration kit. This drop-in sink features extra deep bowls and sound-deadening pads.

• Repairable finish is scratch resistant to heavy-duty use.
• Designed for drop-in installation.
• Made of 18-gauge Type 304 stainless steel for lasting durability.

Product Highlights

This Elkay Lustertone Classic sink offers lasting beauty and functionality for any kitchen, prep, bar, laundry, or commercial setting. Proudly made in the USA.

Product Information

Standard Information

• Brand: ELKAY
• Manufacturer Part Number: LTR6322106
• Country of Origin: USA

Technical Specifications

• Gauge: 18
• Width: 22"
• Height: 10.1250"
• Length: 63"
• Material: Stainless Steel
• Drain Size: 3.5"
• Basin Depth: 10.125"
• Finish Name: Lustrous Satin
• ADA Compliant: No
• Number of Bowls: 3
• Sink Basin Depth: 10" & Over Basin Depth
• Installation Type: Drop-In
• Sink Size Front Back: 22" - 24" Front to Back
• Sink Size Left Right: Over 49" Wide
• Number of Faucet Holes: 6
• Commercial or Residential: Primarily Residential
• Finish: Lustrous Satin
• Standards: ASME A112.19.3/CSA B45.4|Buy American Act
• Body Material: Stainless Steel
• Sound Deadening: Bottom only pads
• Minimum Cabinet Size: 66"
• Bowl 1 Dimensions: L: 19" W: 16" H: 10"
• Bowl 2 Dimensions: L: 19" W: 16" H: 10"
• Bowl 3 Dimensions: L: 19" W: 16" H: 10"
• Room: Kitchen
• Bowl Shape(s): Bowl 1: Rectangular, Bowl 2: Rectangular, Bowl 3: Rectangular
• Collection: Lustertone Classic
• Cutout Dimension: 62-3/8" x 21-3/8" (1584mm x 543mm) with 1-1/2" (38mm) corner radius
• Gallons to Overflow: 37.8
• Inner Depth: 10.125"
• Inside Bowl Dimensions: Bowl 1: 16" x 19" x 10", Bowl 2: 16" x 19" x 10", Bowl 3: 16" x 19" x 10"
• Made In USA?: Yes
• Mounting Hardware Included: Part # 64090008 included for countertops up to 3/4" (19mm) thick (2 qty)
• Shape: Rectangular
• Style: Traditional
• cUPC Certified?: Yes
• Product Type: Drop In Kitchen Sink
• Drain Position: Center
• Number of Basins: 3
• Holes: 6
• Bowl 1 Depth: 10.00
• Bowl 1 Length: 19.00
• Bowl 1 Shape: Rectangular
• Bowl 1 Width: 16.00
• Bowl 2 Depth: 10
• Bowl 2 Length: 19
• Bowl 2 Shape: Rectangular
• Bowl 2 Width: 16
• Bowl 3 Depth: 10
• Bowl 3 Length: 19
• Bowl 3 Shape: Rectangular
• Bowl 3 Width: 16
• Built In The Usa: Yes
• Buy American Act Compliant: Yes
• Certifying Agency: IAPMO (cUPC_sinks)
• Drain Placement Bowl 2: Center Center
• Drain Placement Bowl 3: Center Center
• Drain Size Bowl 1: 3.50
• Drain Size Bowl 2: 3.5
• Drain Size Bowl 3: 3.5
• Faucet Hole Config Of Sink: 6
• Installation Type Sinks: Drop In
• Product Compliance: ASME A112.19.3/CSA B45.4
• Room Designation: Kitchen
• Features: Sound Dampening
• Sink Gauge: 18
• Sink Shape: Rectangle
• Minimum Base Cabinet: 66
• Gauge of steel: 18
• Sound insulation: yes
• Basin Depth in Inches: 10"
• Low Lead Compliant: No
• Drain Hole Size: 3.5"
• Drain placement: Center
• Minimum cabinet size: 66 Inch
• Sink Dimensions Length: 63 Inch
• Sink Dimensions Width: 22 Inch
• Sink Dimensions Depth: 10-1/8 Inch
• Color/Finish: Lustertone
