Elkay LRAD3322601 Drop-in Ada Sink 33x22 Double Bowl

Product Description

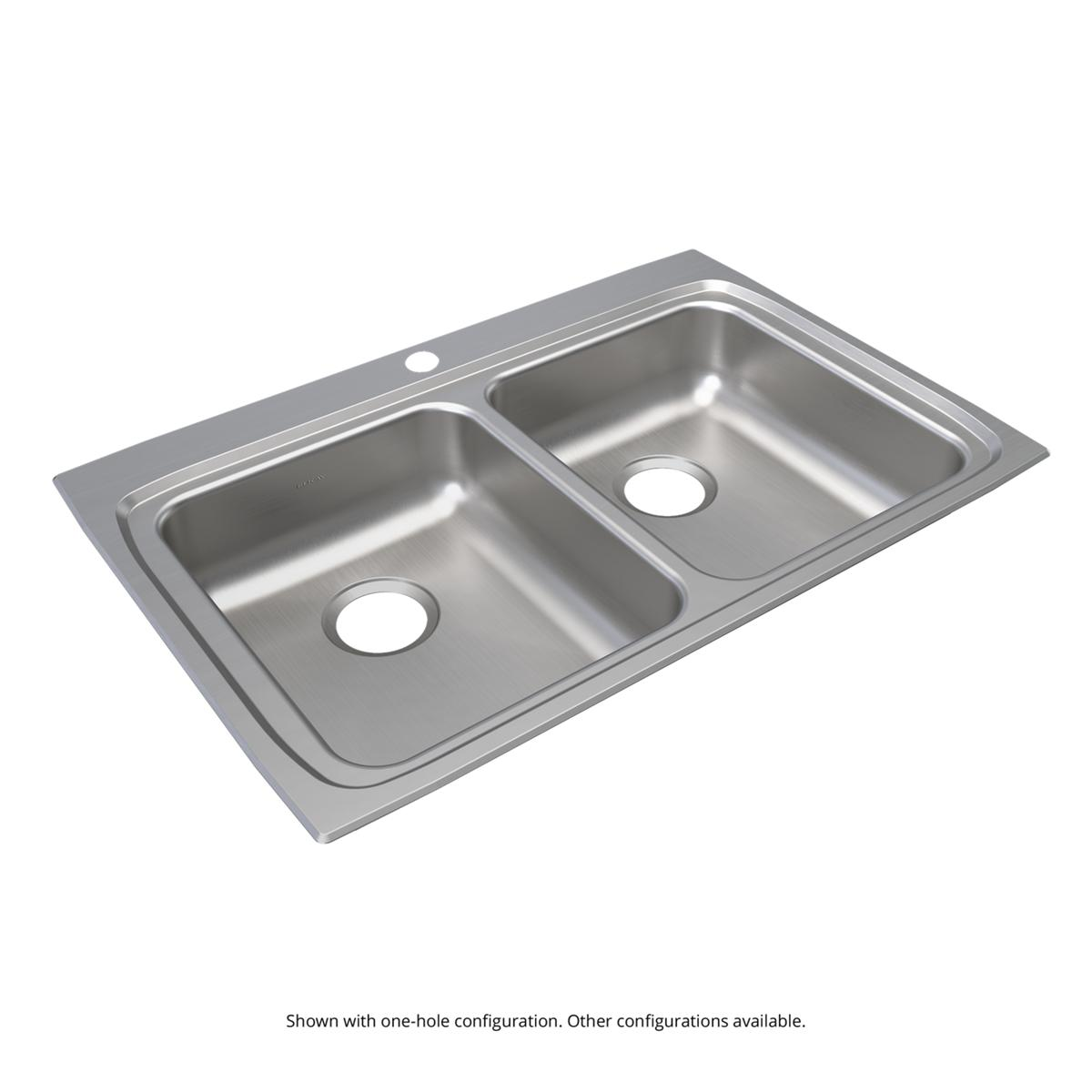

The ELKAY LRAD3322601 is a Lustertone Classic stainless steel drop-in sink designed for ADA-compliant installations in residential and light commercial settings. The sink measures 33 inches wide by 22 inches deep by 6 inches in bowl depth and features an equal double bowl configuration with a single pre-drilled faucet hole. The Lustertone finish is a brushed satin texture that resists scratches and maintains a consistent appearance over time. Licensed plumbers and finish carpenters typically handle installation in countertop cutout applications where ADA reach and clearance requirements must be met.

This sink is suited for kitchens and accessible restroom or utility areas where ADA compliance is required. The shallow 6-inch bowl depth is the defining ADA-relevant feature, keeping the drain and basin within required reach ranges for seated users. The drop-in mounting style fits standard countertop cutouts and works with laminate, solid surface, and tile countertop materials. The equal double bowl layout provides balanced workspace for food prep and cleaning tasks in residential kitchens or break room environments.

Key Features

• ADA-compliant 6-inch bowl depth supports required reach range for seated users
• Equal double bowl configuration provides two identically sized basins
• Single pre-drilled faucet hole accommodates most standard deck-mount faucets
• Drop-in mounting style installs into a standard countertop cutout
• Lustertone brushed stainless steel finish resists scratching and surface wear
• 33 x 22 inch overall dimensions suit standard 36-inch base cabinet installations

Compatibility

Designed as an OEM-style drop-in replacement or new installation sink for ADA-compliant residential and light commercial countertop applications requiring a 33 x 22 inch cutout footprint.

Installation Notes

Installation is typically performed by a licensed plumber in accordance with local IPC requirements and applicable ADA Standards for Accessible Design. Shut off water supply lines and disconnect drain plumbing before removing any existing sink. The drop-in rim seats on the countertop surface and is secured with mounting clips from below; apply a continuous bead of silicone sealant around the rim perimeter before seating to prevent water intrusion. Verify knee clearance and forward reach dimensions comply with ADA requirements before finalizing rough-in dimensions.

Technical Specifications

• Overall Dimensions: 33 x 22 x 6 inches
• Bowl Configuration: Equal Double Bowl
• Bowl Depth: 6 inches
• Faucet Holes: 1
• Mounting Type: Drop-In
• Material: Stainless Steel
• Finish: Lustertone Brushed Satin
• ADA Compliant: Yes
• UPC: 094902175522

Standard Information

• Brand: ELKAY
• Manufacturer Part Number: LRAD3322601
