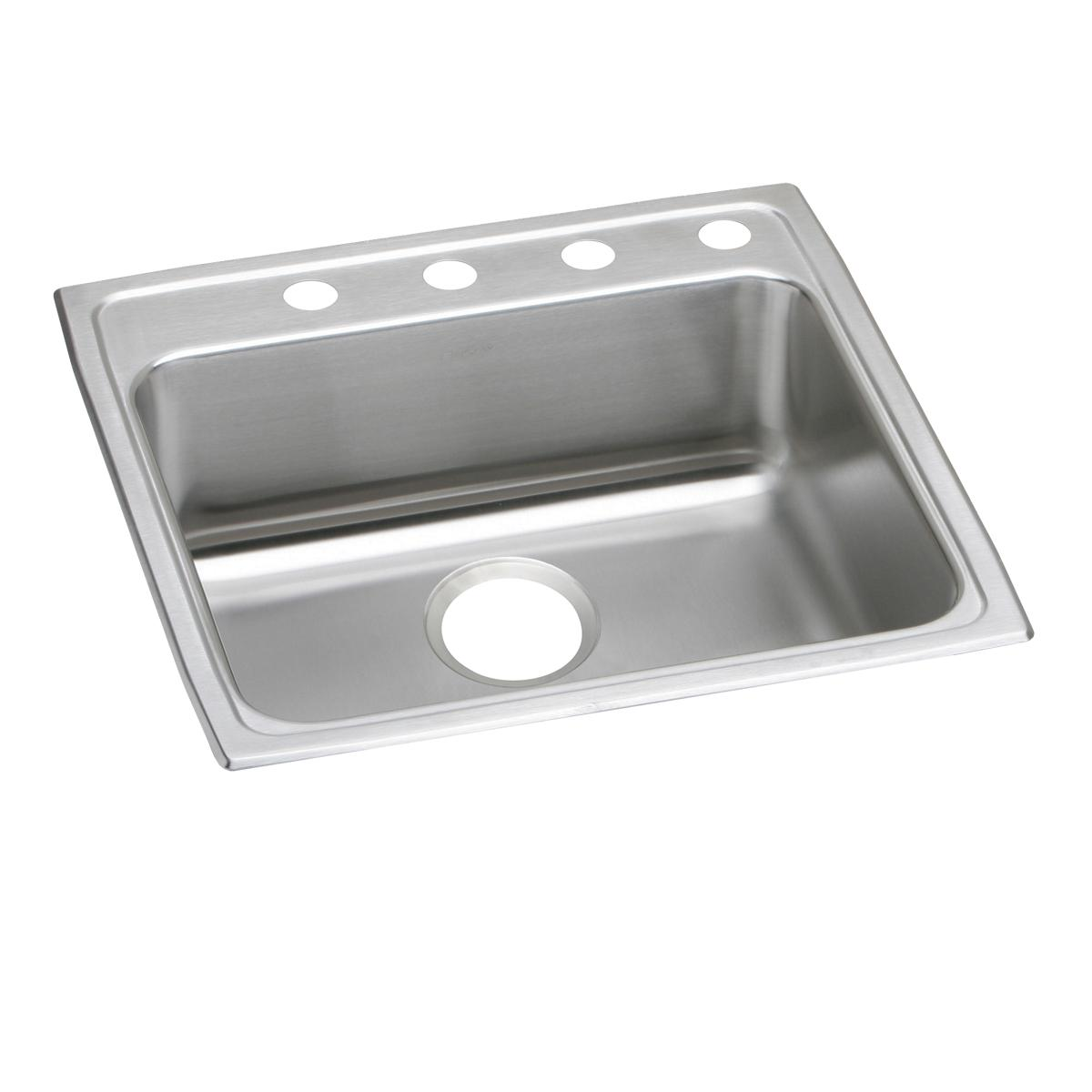

Elkay LRAD2222504 Single Bowl Drop-in Ada Sink 22x22x5

Product Description

The ELKAY LRAD2222504 is a stainless steel single bowl drop-in sink engineered to meet ADA accessibility requirements. Part of the Lustertone Classic line, it features a brushed satin finish typical of the Lustertone series, providing a clean, professional appearance suited to commercial and residential installations alike. The sink measures 22 inches x 22 inches x 5 inches and ships with a 4-hole configuration for faucet and accessory mounting. The shallow 5-inch bowl depth is a defining characteristic of ADA-compliant sink designs, keeping the drain accessible for users in wheelchairs or with limited mobility. Licensed plumbers and commercial contractors are the primary installers of this fixture.

This sink is designed for drop-in installation in countertop cutouts, making it appropriate for restrooms, break rooms, and accessible lavatory applications in both light commercial and residential settings. The 4-hole deck configuration supports a widespread faucet, soap dispenser, or similar accessories without additional drilling. The ADA-compliant bowl depth makes it a go-to choice for projects subject to accessibility codes, including ADA Standards for Accessible Design and applicable local plumbing codes.

Key Features

• ADA-compliant 5-inch bowl depth supports accessible installation requirements
• Drop-in mount fits standard countertop cutouts for straightforward replacement or new installation
• 4-hole deck configuration accommodates widespread faucets and accessories
• Single bowl layout maximizes usable basin space within the 22 x 22 inch footprint
• Stainless steel construction resists corrosion and withstands repeated commercial use

Compatibility

Designed as an OEM-style drop-in replacement for single bowl ADA sink applications requiring a 22 x 22 inch countertop cutout with a 4-hole deck configuration.

Installation Notes

Installation should be performed by a licensed plumber in accordance with applicable local plumbing codes and ADA Standards for Accessible Design. Shut off water supply lines and verify countertop cutout dimensions match the sink's 22 x 22 inch footprint before setting the sink. Apply a continuous bead of silicone sealant around the underside rim prior to drop-in placement to ensure a watertight seal. Do not overtighten mounting clips, as this can distort the sink rim or damage the countertop substrate.

Technical Specifications

• Bowl Configuration: Single Bowl
• Mount Type: Drop-In
• Overall Dimensions: 22 inches x 22 inches x 5 inches
• Number of Holes: 4
• Material: Stainless Steel
• ADA Compliant: Yes
• UPC: 094902594378

Standard Information

• Brand: ELKAY
• Manufacturer Part Number: LRAD2222504
