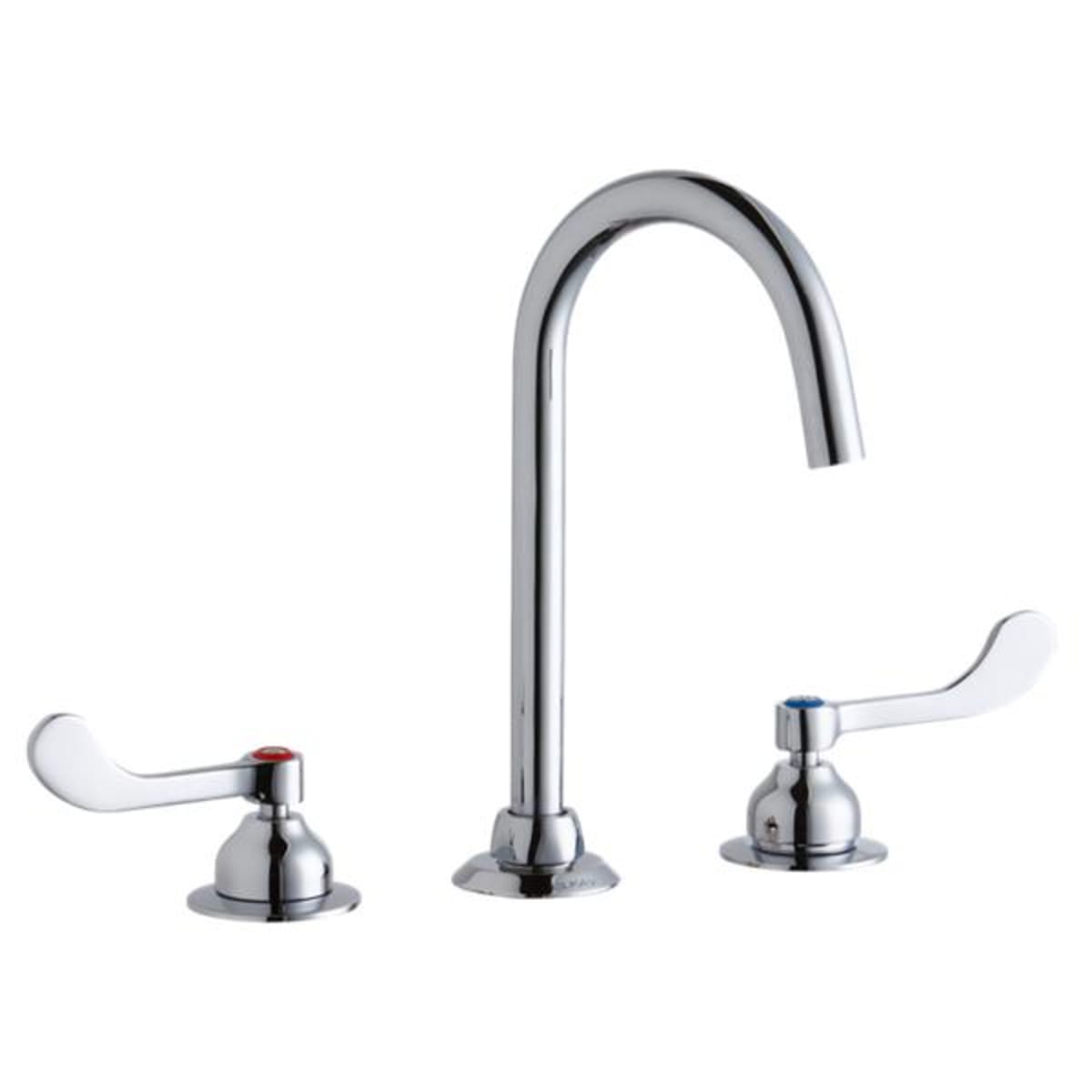

Elkay LK800LGN05T4 8 inches Centerset with Concealed Deck Laminar Flow Faucet with 5 inches Gooseneck Spout 4 inches Wristblade Handles

Product Description

The ELKAY LK800LGN05T4 commercial faucet combines performance and style for various applications, from commercial kitchens to classrooms. This faucet is designed for installation using three faucet holes. It is certified to NSF/ANSI/CAN 61 and 372 for low or no-lead products and ADA compliant.

• Lead-free compliant and ADA compliant
• Features solid brass construction for durability
• Includes water-saving features and a spout swing restrictor pin

Product Highlights

This centerset faucet features a gooseneck spout, wristblade handles, and solid brass construction.

Product Information

Standard Information

• Brand: ELKAY
• Manufacturer Part Number: LK800LGN05T4
• Country of Origin: United States

Technical Specifications

• GPM: 1.5
• Width: 7
• Height: 13.1250
• Length: 14.25
• Unit_Width: 7
• FinishColor: Polished Chrome
• Finish_Name: Chrome-plated Brass
• ADA_Compliant: Yes
• Buy_America_Act_Compliant: No
• Commercial_or_Residential: Primarily Commercial
• Handle Type: 4 inch Wristblade Handle
• Spout Height: 8 inch
• Spout Reach: 5 inch
• Flow Rate: 1.5 gpm
• Material: Chrome Plated Brass
• Brand: Elkay
• Mounting Type: Deck
• Country of Origin (subject to change): United States
• Spray Type: None
• Installation Type: Deck Mount
• Features: Low Flow, Solid Brass Construction, Spout Swing Restriction Pin
• Handle Quantity: 2
• Deck Clearance: 5-1/2"
• Spout Type: Flexible Spout
• Valve Connection: 3/8" Female Compression Hose Assembly
• ADA: Yes
• Code Compliance: ASME A112.18.1 CSA B125.1 cUPC NSF 61 NSF 372 CEC Listed IPC
• Cartridge Type: Quarter Turn Ceramic Disc
• Hole Drilling: 3
• Maximum Flow Rate (GPM): 1.5
• Overall Height: 8 Inch
• Valve Type: Quarter Turn Ceramic Disc
• Number of Handles: 2
• Category: Kitchen Faucets
