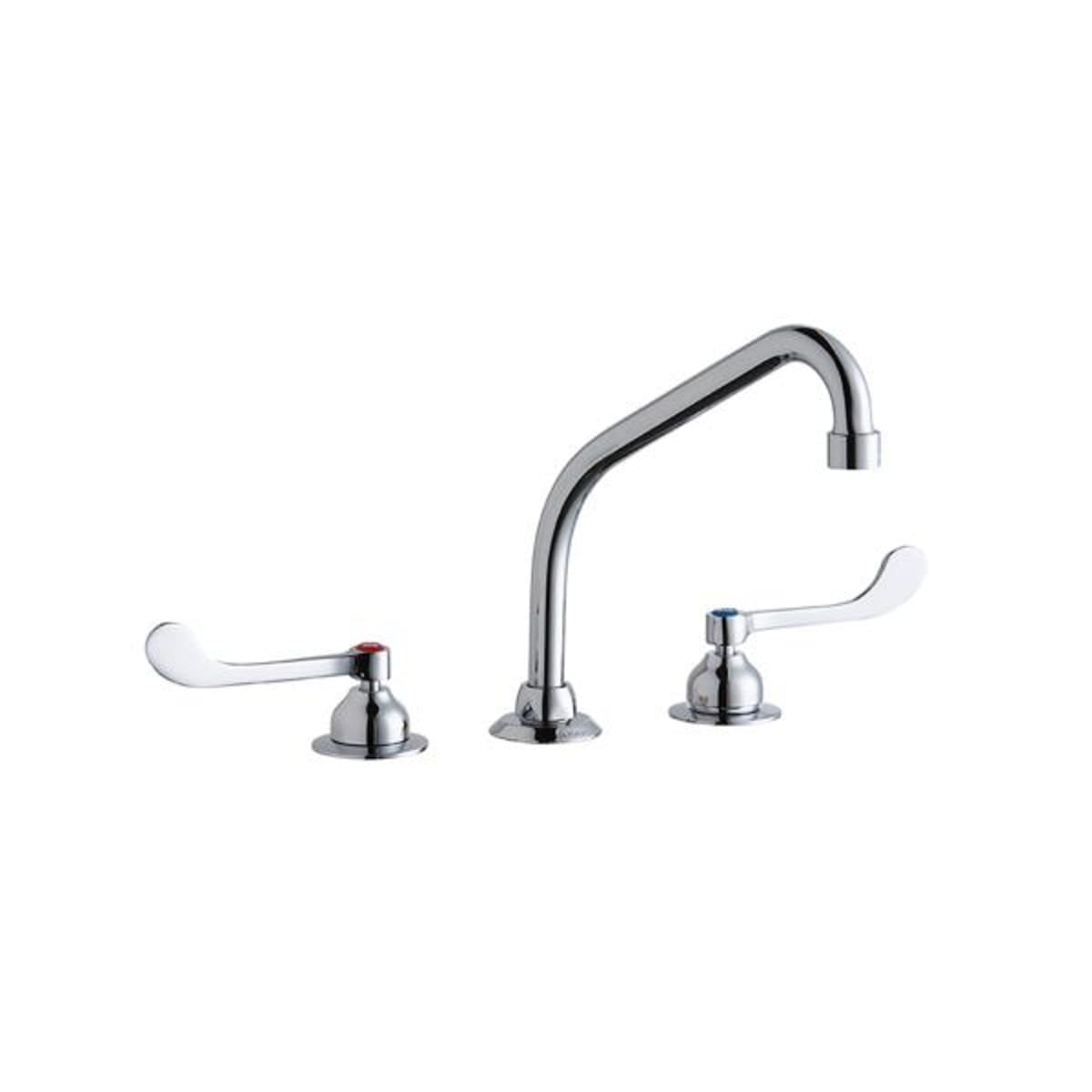

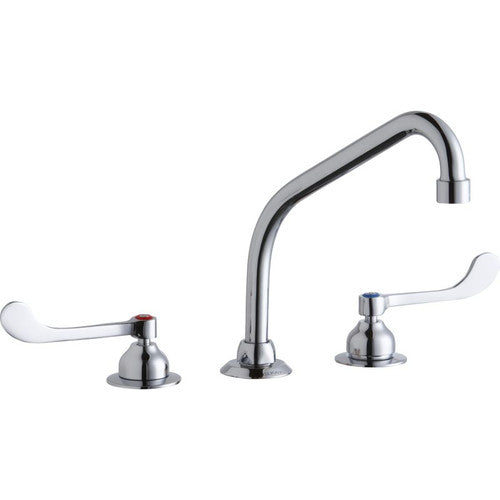

Elkay LK800HA08T6 8in Centerset Concealed Deck Faucet 8in High Arc Spout 6in Wristblade Handles (3-Hole)

Product Description

Elkay LK800HA08T6 is a commercial deck-mount faucet with an 8in centerset concealed deck configuration, an 8in high-arc spout and two 6in wristblade handles. The unit is solid brass with a chrome finish, designed for three-hole installation and quarter-turn ceramic valves. It includes a vandal-resistant 1.5 gpm aerator (2.2 and 0.5 gpm inserts included) and a spout swing restrictor pin for stationary positioning. Certified to NSF/ANSI 61 and 372 and ADA compliant.

• Construction: Solid brass body with chrome-plated finish; two 6in wristblade handles; quarter-turn ceramic valves
• Flow and aerator: Vandal-resistant 1.5 gpm aerator installed; 2.2 and 0.5 gpm aerator inserts included
• Configuration and connections: 8in centerset concealed deck, 3 faucet holes, spout reach 8in, spout swing restrictor pin, 3/8in compression hose valve connections

Product Highlights

Commercial deck-mount faucet; 8in high-arc spout; 1.5 gpm vandal-resistant aerator; ADA and NSF/ANSI 61 and 372 certified

Product Information

Standard Information

• Brand: ELKAY
• Manufacturer Part Number: LK800HA08T6
• Country of Origin: China

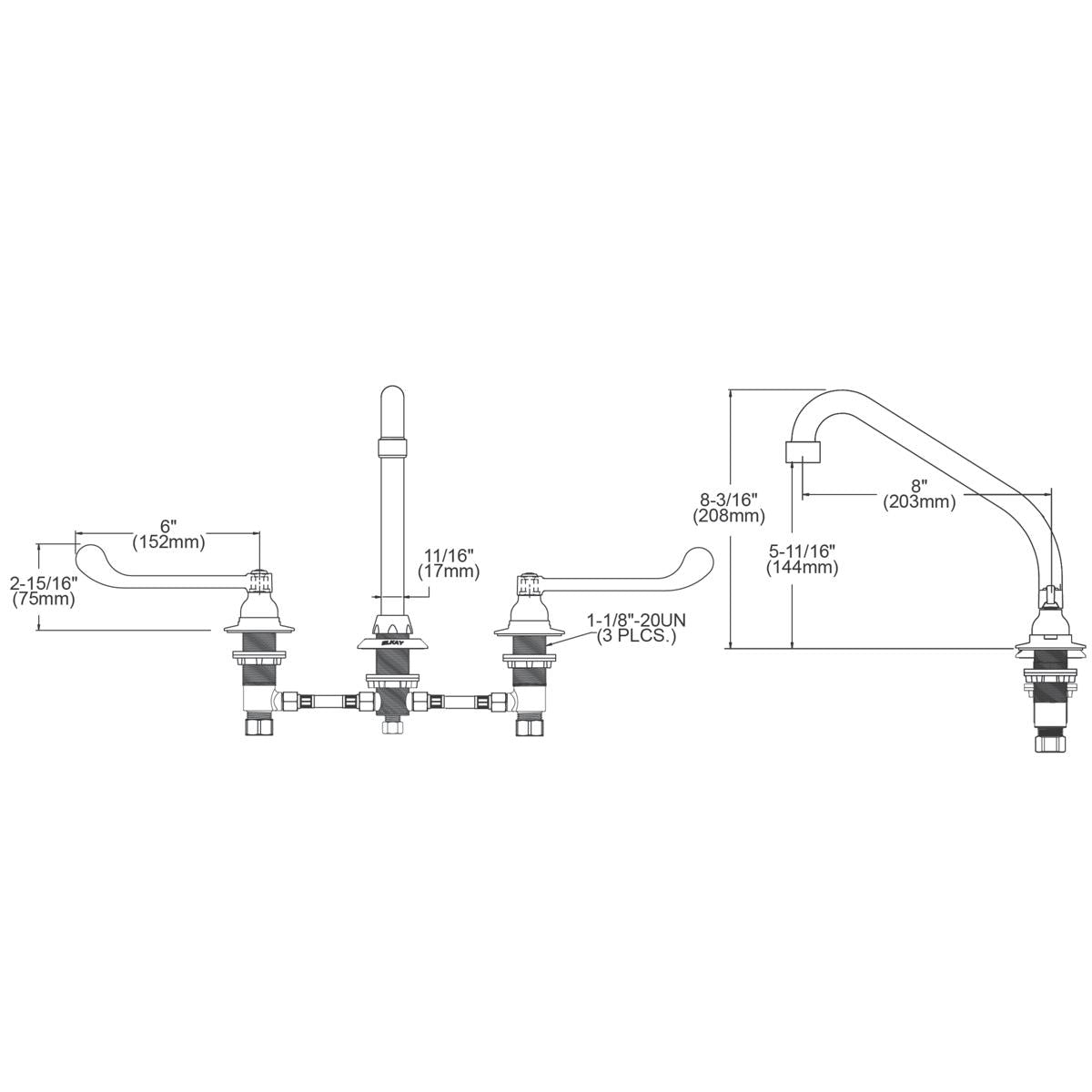

Technical Specifications

• Brand: Elkay
• MPN: LK800HA08T6
• UPC: 94902391984
• Product Type: Deck mount faucet
• Mounting/Configuration: 8in centerset, concealed deck, 3 faucet holes
• Material: Solid brass construction
• Finish: Chrome plated
• Spout Reach: 8 in
• Spout Height: 8.1875 in
• Spout Feature: High-arc spout with swing restrictor pin (swing/swivel)
• Handles: Two handles
• Handle Type: 6 in wristblade handles
• Valve Type: 1/4-turn ceramic valve
• Valve Connection: 3/8 in compression hose assembly
• Flow Rate: 1.5 gpm (vandal-resistant aerator installed); 2.2 gpm and 0.5 gpm aerator inserts included
• Aerator: Vandal-resistant aerator installed (1.5 gpm); additional 2.2 and 0.5 gpm inserts included
• Compliance / Certifications: ADA compliant; Certified to NSF/ANSI 61 and NSF/ANSI 372
• Application: Primarily commercial (kitchens, classrooms, scrub handwash)
• Spout Deck Clearance: 5.688 in
• Hole Drillings: 3
• Country of Origin: China
