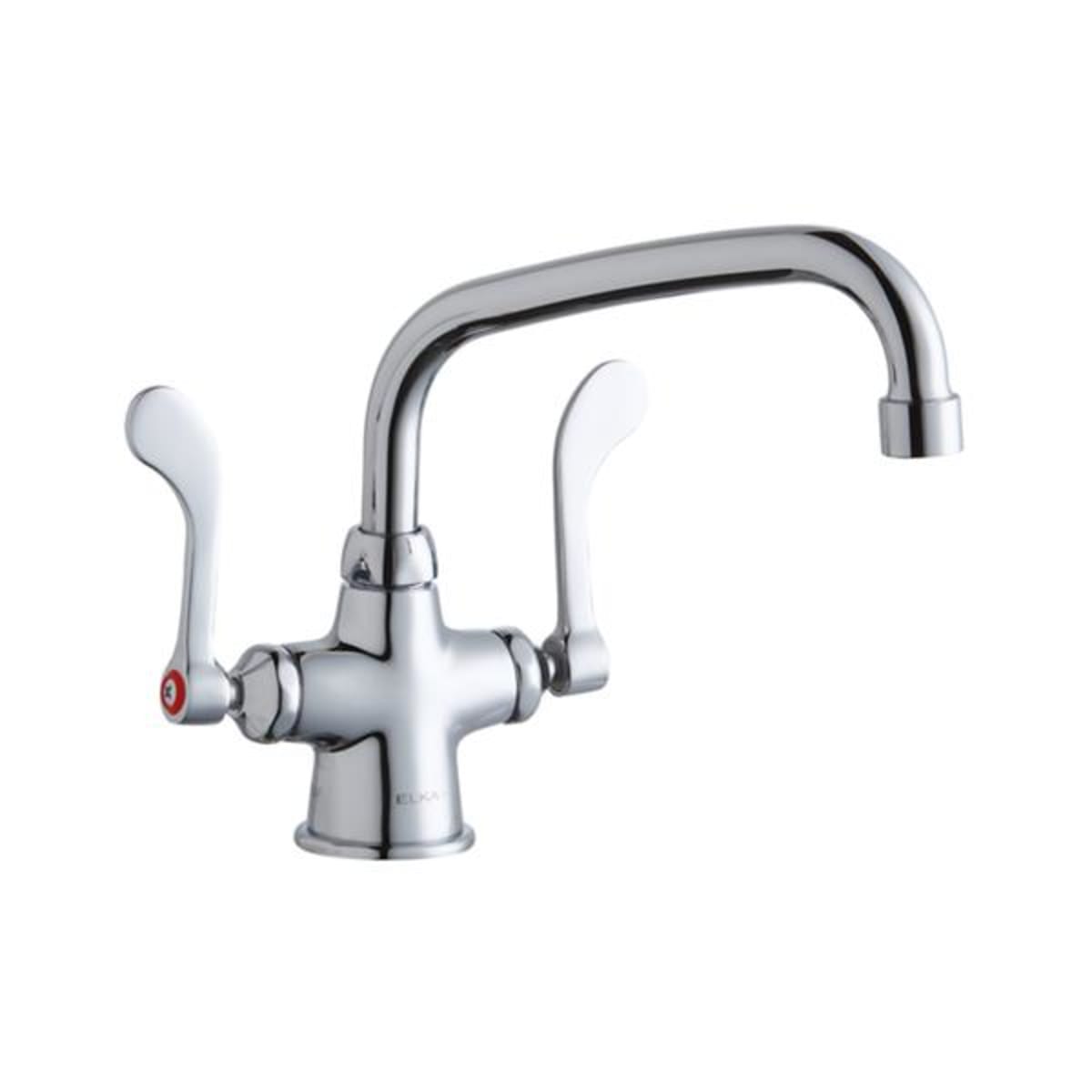

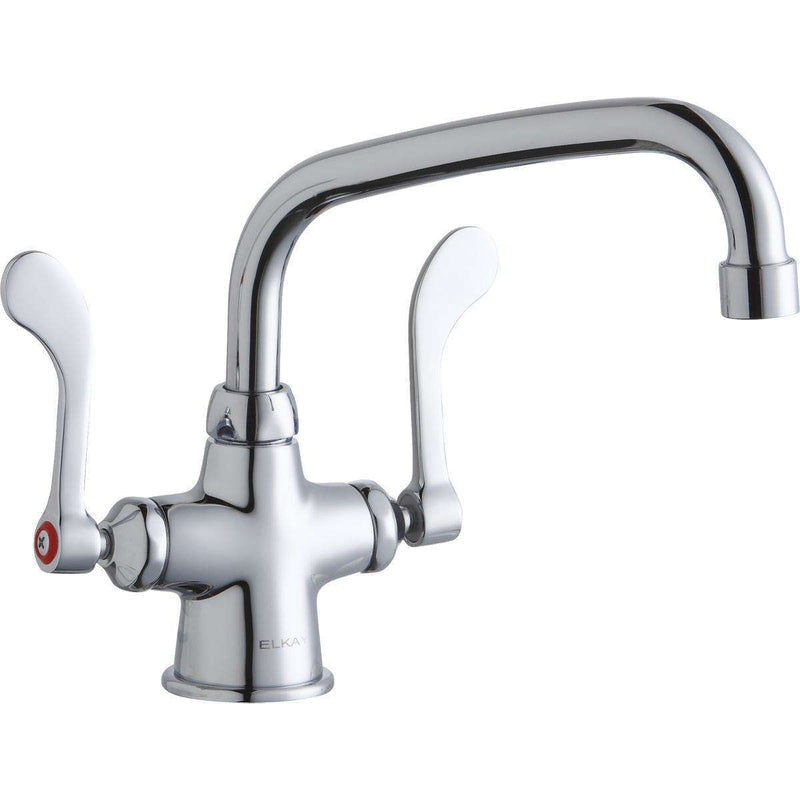

Elkay LK500AT08T4 Single Hole with Concealed Deck Faucet with 8 inches Arc Tube Spout 4 inches Wristblade Handles

Product Description

The Elkay LK500AT08T4 commercial faucet combines performance and style. From the commercial kitchen to the classroom, Elkay has faucets for a variety of applications. It is designed to be installed using one faucet hole. Includes a 1.5 GPM water-saving, vandal-resistant aerator with 2.2 and .5 GPM aerator inserts.

• ADA Compliant
• Lead-Free Compliant
• Low Flow
• Solid Brass Construction

Product Highlights

This single-hole deck faucet features solid brass construction for long-term durability and includes a vandal-resistant aerator.

Product Information

Standard Information

• Brand: ELKAY
• Manufacturer Part Number: LK500AT08T4
• Country of Origin: China

Technical Specifications

• GPM: 1.5
• Width: 9.6875
• Height: 9
• Length: 7.8925
• Unit_Width: 9.6875
• FinishColor: Polished Chrome
• Finish_Name: Chrome-plated Brass
• ADA_Compliant: Yes
• Buy_America_Act_Compliant: No
• Commercial_or_Residential: Primarily Commercial
• Handle Type: 4 inch Wristblade Handle
• Spout Height: 9.125 inch
• Spout Reach: 8 inch
• Material: Brass
• Brand: Elkay
• Item [Specifications]: Cncld Deck Faucet,1 Hole,8" Arc Tube Spout
• Finish [Specifications]: Chrome
• Flow Rate [Specifications]: 1.50 gpm
• Connection [Specifications]: 1 1/8" Unified Screw Thread, Standard Series
• Valve Type [Specifications]: Quarter Turn Ceramic Disc
• Body Material [Specifications]: Chrome-Plated Brass
• Mounting Type [Specifications]: Deck Mount
• Number of Holes [Specifications]: 1
• Faucet Operation [Specifications]: Wristblade Handle
• Number of Handles [Specifications]: 2
• Residential / Commercial [Specifications]: Commercial
• Mounting Hole Center to Center [Specifications]: Single Hole Only
• Faucet Mount: Deck
• Handle Length (in): 4
• Nozzle Length (in): 8
• Nozzle Type: Standard Swing
• Product: Manual Faucets
• Product Type: Commercial Sinks
• Rating: Better
• Is ADA Compliant: Yes
• Product Compliance: ADA & ICC A117.1| ASME A112.18.1/CSA B125.1| CEC| NSF 61| NSF 372 (lead free)
• NOZZLE LENGTH O.A.: 8"
• NOZZLE MOUNT: Swing/swivel
• VALVE TYPE: Mixing
• NOZZLE TYPE: Arched Spout
• Spray Type: None
• Installation Type: Deck-mount
• Features: Low Flow, Solid Brass Construction, Spout Swing Restriction Pin
• Handle Quantity: 2
• Deck Clearance: 6-1/2"
• Spout Type: Arc Tube
• Valve Connection: 1 1/8" Unified Screw Thread, Standard Series
• ADA: Yes
• Code Compliance: ASME A112.18.1 CSA B125.1 cUPC NSF 61 NSF 372 CEC Listed IPC
• Note: 1.5 GPM VR aerator installed with 2.2 and .5 GPM inserts included
