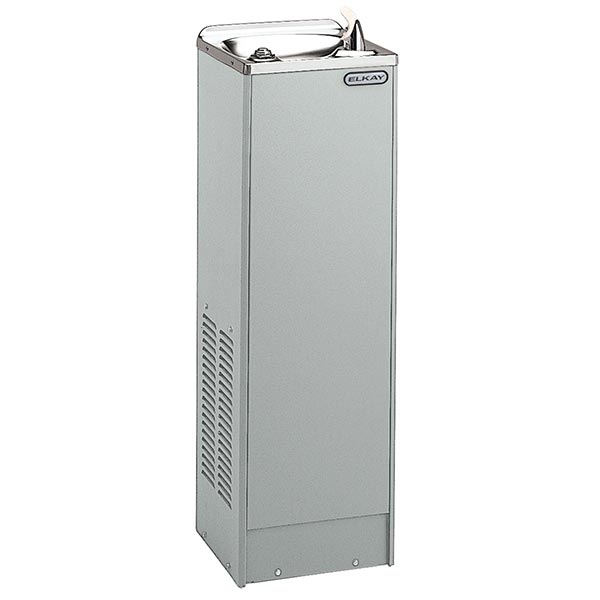

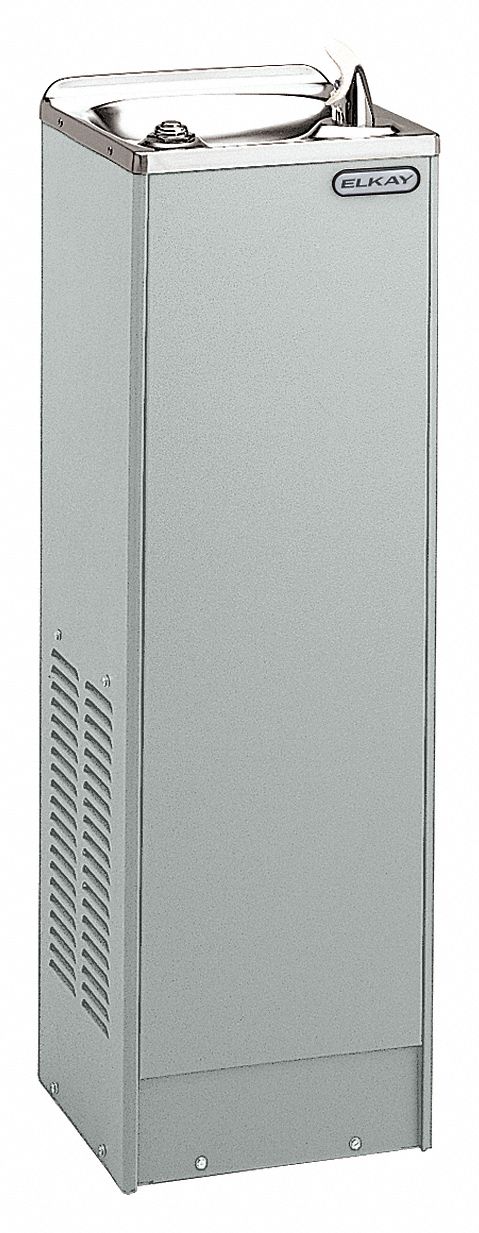

Elkay FD7005L1Z Space-Ette Collection Non-Filtered Cooler Refrigerated Chilling

Product Description

The Elkay FD7005L1Z Space-Ette Collection is a non-filtered cooler with refrigerated chilling, designed for indoor application. It features an extra deep basin to minimize splashing with an integral vandal-resistant strainer. The cooler also has an exclusive Flexi-Guard safety bubbler.

• Extra deep basin minimizes splashing with integral vandal-resistant strainer
• Exclusive Flexi-Guard safety bubbler
• Traditional small footprint floor mount design allows for space-saving installations.

Product Highlights

This Elkay Space-Ette water cooler offers a slim profile for space-saving installations and features a Flexi-Guard bubbler for safety.

Product Information

Standard Information

• Brand: ELKAY
• Manufacturer Part Number: FD7005L1Z
• Country of Origin: US

Technical Specifications

• Application: Indoor Application
• Chilling Option: Refrigerated
• Country of Origin: US
• Domestic/Import: Domestic
• Drain Connection: 1-1/4 in
• Electrical Ratings: 115 VAC 60 Hz
• Finish: Light Gray Granite
• Material: Galvanized Steel
• Mfg Standards/Approvals: ASME A112.19.3/CSA B45.4|CAN/CSA C22.2# 120|NSF/ANSI 61/372 (Lead Free)|UL 399 Listed
• Mounting Type: Floor/Freestanding
• Pressure Rating: 20 to 105 psi
• Refrigerant Type: R-134A
• Series: Space-Ette Collection
• Type: Non-Filtered
• Bubbler Style: Flexi-Guard Safety
• Brand: ELKAY
• Station Type: Single
• Fountain Environment: Indoor
• Mounting Location: Freestanding
• Fountain Actuation: Top Push Button
• Bi-Level Field Adjustable: Not Bi-Level Field Adjustable
• Refrigeration: Refrigerated
• Housing Material: Vinyl Clad Steel
• Housing Color: Gray
• Housing Finish: Vinyl Clad
• Overall Depth: 12 in
• Overall Height: 38 in
• Overall Width: 12 in
• Inlet Tube Outside Diameter: 1/4 in
• Drain Outside Diameter: 1-1/4 in
• Number of Bubblers: 1
• Chilling Capacity: 5 gph @ 50 00b0F
• Max. Cold Water Temperature: 50 00b0F
• Temperature Adjustment: Factory Set but Adjustable
• Min. Supply Line Pressure: 20 psi
• Constant Stream Pressure - Minimum: 20 psi
• Max. Constant Stream Pressure: 105 psi
• Number of Mounting Holes: 1
• Refrigerant: R134A
• Full Load Current: 3.5 A
• Operating Voltage: 115V AC
• Power Source: Electric Corded
• Power Consumption: 230 W
• Includes Water Filter: Water Filter Not Included
• Includes Pet Bowl: Pet Bowl Not Included
• Includes Back Panel: Back Panel Not Included
• Vandal Resistant: Not Vandal Resistant
• ADA Compliant: No
• Standards: ASME A112.19.3/CSA B45.4; CAN/CSA C22.2 No. 120; NSF/ANSI 372; NSF/ANSI 61; UL 399
• Manufacturer Part Number: FD7005L1Z
• UNSPSC: 48101710
• Item: Water Cooler
• Filtration System: None
• Water Dispenser Product Group: Water Cooler
• Indoor / Outdoor: Indoor
• Refrigerated / Non-Refrigerated: Refrigerated
• Dispenser Design: Free-Standing
• Number of Levels: 1
• Cold Water Capacity: 5 gph
• Dispenser Operation: Top Push Button
• Dispensing Temp.: Cold
• Inlet: 3/8 in OD Tube
• Voltage: 120 V AC
• Model: FD7005L1Z
• Description: Space-ette floor standing water cooler offers a slim profile for installations with limited space.
