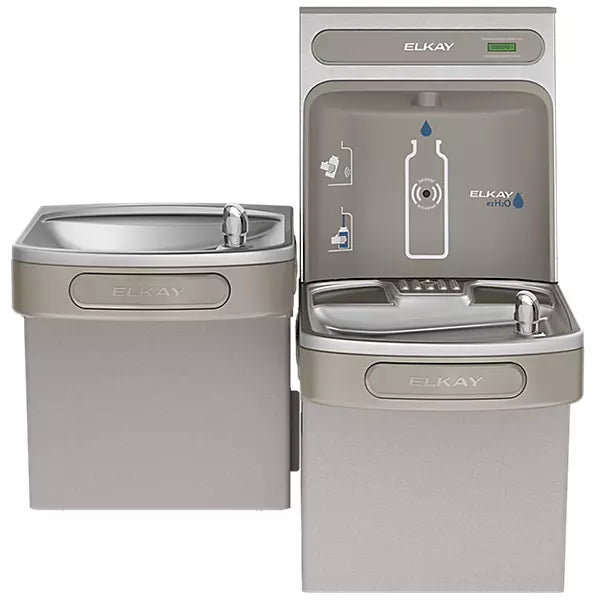

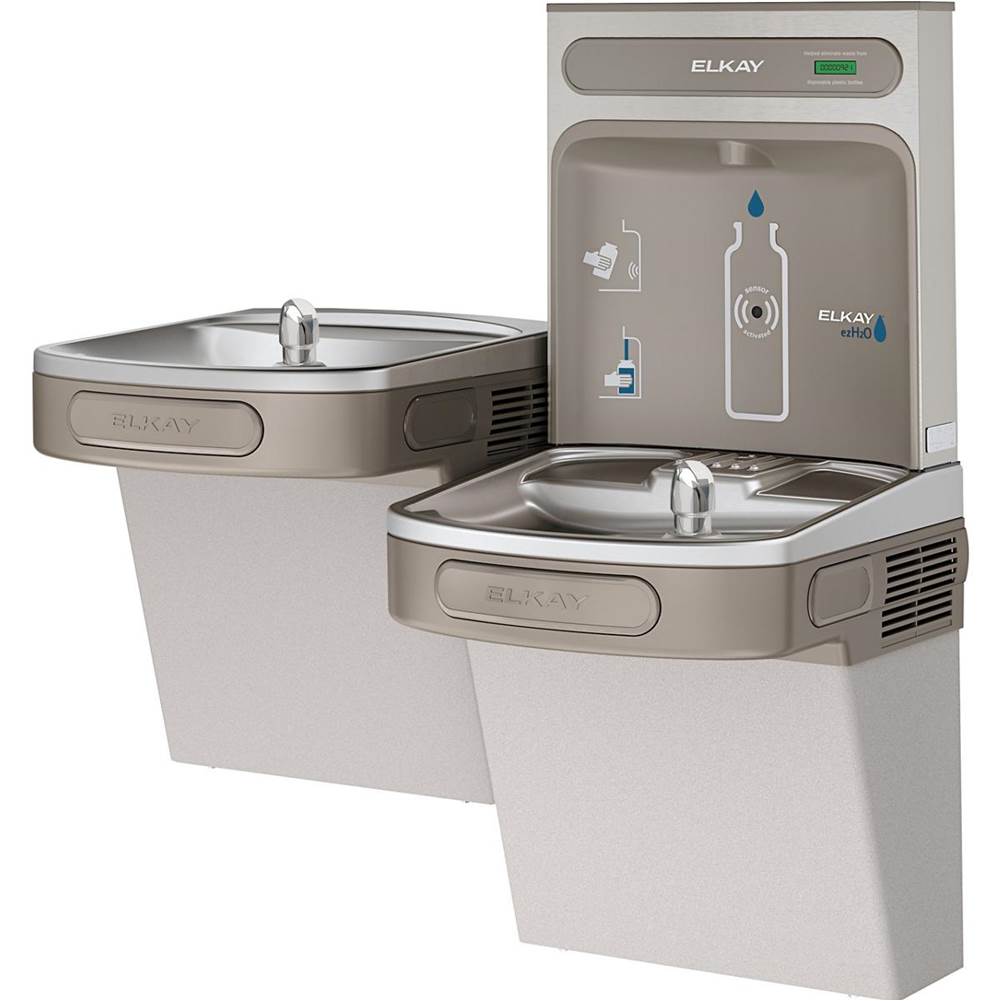

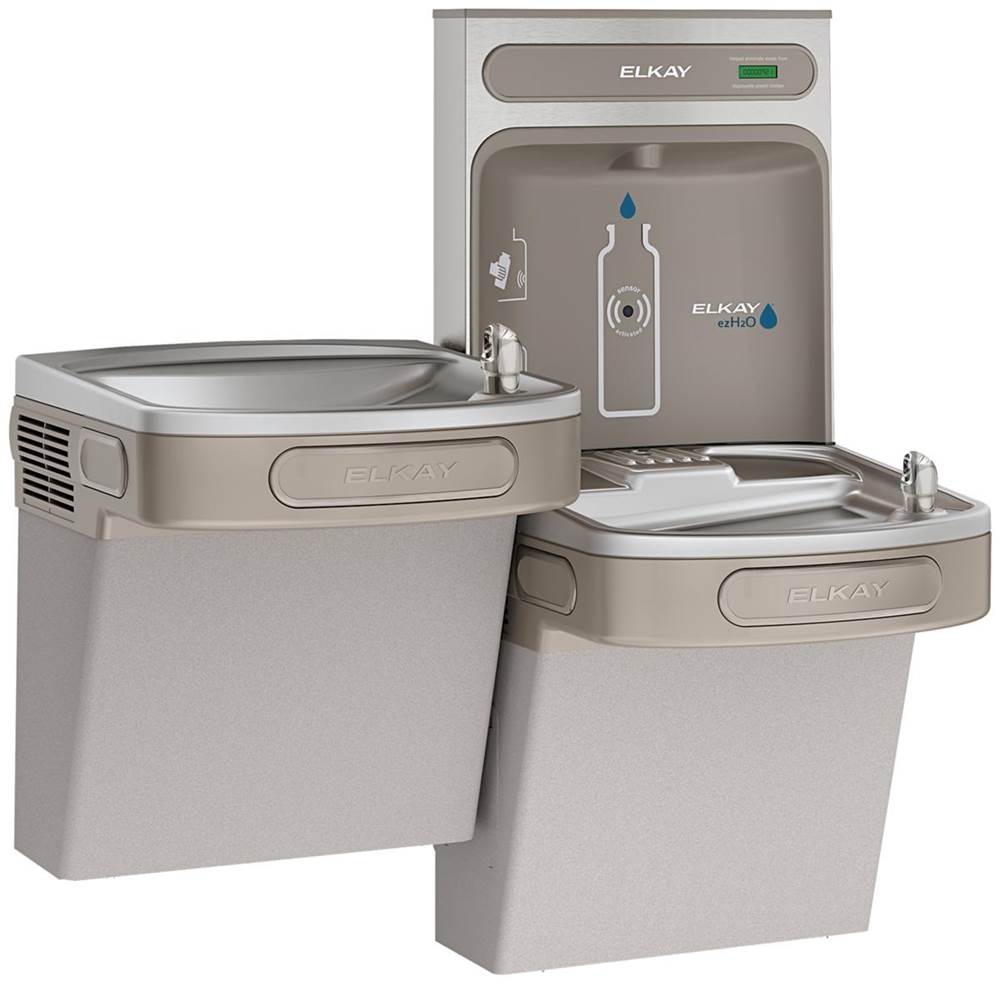

Elkay EZSTL8WSVRLK ezh2o bi-level water bottle filling station 8 gph vr bubbler

Product Description

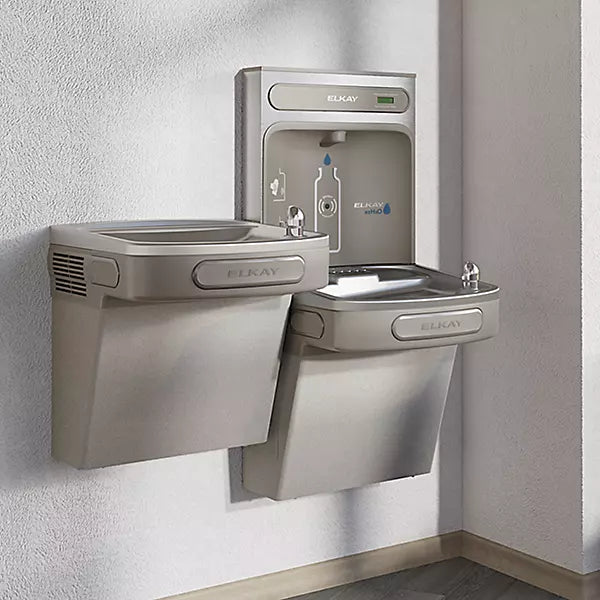

The Elkay EZSTL8WSVRLK EZH2O Bi-Level Water Bottle Filling Station delivers a clean and quick water bottle fill, enhancing sustainability by minimizing dependency on disposable plastic bottles. Complete with a cooler and bottle filling station in a space-saving ADA compliant design. The versatile bi-level cooler design allows for standard or reverse cooler installation.

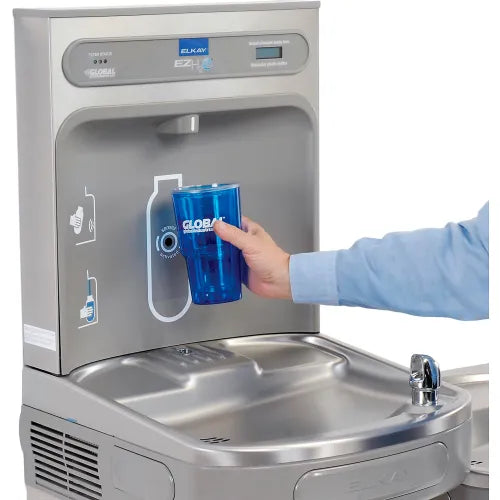

• Touchless, sensor activation (bottle filler) designed for easy use; easy-to-operate push-bar activation (bubbler).
• Fill rate is 1.1 GPM.
• Green Ticker informs user of number of 20 oz. plastic water bottles saved from waste.

Product Highlights

This bottle filling station features laminar flow, antimicrobial protection, and a real drain system. Vandal-resistant bubblers prevent contamination. It is rated for indoor use.

Product Information

Standard Information

• Brand: ELKAY
• Manufacturer Part Number: EZSTL8WSVRLK
• Country of Origin: United States

Technical Specifications

• Type: Water Refilling
• Brand: Elkay
• Hertz: 60 Hz
• Filter: No
• Bubbler: Flexible Bubbler
• Voltage: 115 V
• Amperage: 5 A
• Includes: Bottle Filling Station, Cooler
• Material: Stainless Steel
• Depth: 19 in
• Width: 18-3/8 in
• Height: 36-11/16 in
• Glass Filler: No
• Refrigerated: Yes
• For Outdoor Use: No
• Vandal Resistant: Yes
• Chilling Capacity: 8 gal/hr
• Installation Type: Wall
• Number of Stations: 2
• Hands Free Operation: No
• Water Refilling Stations: 1
• ADA Compliant: Yes
• NSF Certified: Yes
• Bottle Filling Activation: Sensor
• Manufacturers Part Number: EZSTL8WSVRLK
• Standard Bubbler Stations: 2
• Cooler/Fountain Activation: Easy-Touch Push Bars
• Green Accreditation: No
• Mounting Type: Wall Mount (On-Wall)
• Installation Location: Indoor
• Power: 110-120V (Standard)
• Product Type: Commercial Plumbing Supplies
• Refrigeration Type: Refrigerated
• Output: 1.1 GPM
• Application: Indoor
• Mount: Wall / Surface
• Operation: One (1) automatic (infra-red sensor) bottle filler| and two (2) push button drinking fountains
• Basin(s): Stainless Steel| Brushed Finish
• Cabinet(s): Vinyl Clad Steel (Light Gray Granite)
• Bubbler(s): Chrome Plated Vandal Resistant
• Cooled: Yes
• Status Display: LCD Green Ticker Bottle Counter
• Wattage: 370
