Elkay EZFMTLK Bi-Level Filter Maintenance Kit with Filter

Product Description

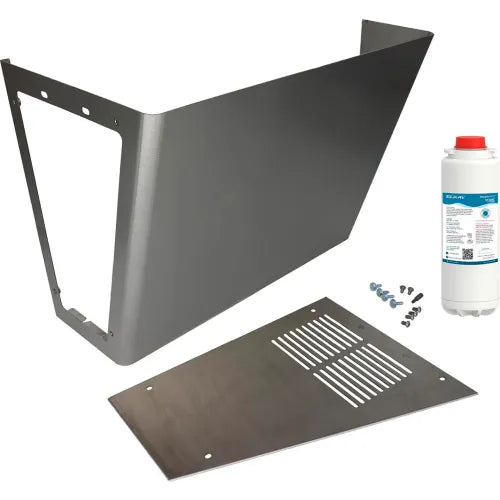

The Elkay EZFMTLK is a bi-level filter maintenance kit designed for efficient filter replacement for coolers and bottle filling stations. This retrofit kit features a side access panel, allowing quick access to the filter and shut-off valve without removing the entire wrapper. It is suitable for high-traffic environments like schools and hospitals.

• Integrated side panel for easy access to the filter and shut-off valve
• Compatible with Elkay EZ and LZ bi-level filtered coolers
• Includes WaterSentry 51300C filter, certified to reduce lead and other contaminants

Product Highlights

This kit simplifies maintenance and reduces downtime when changing filters.

Product Information

Standard Information

• Brand: Elkay
• Part #: WBB3159130

Technical Specifications

• Product Type: Water Filter Maintenance Kit
• Includes: One stainless steel wrapper with side access panel and filter
• Dimensions: Length 17.582 inches, Width 13.729 inches, Height 10.59 inches
• For Use With: Elkay Bi-Level Coolers and Bottle Filling Stations
• Flow Rate: 1.5 GPM (5.6 L/m)
• Temperature Range: 40-100°F (4-38°C)
• Initial Pressure Drop: 2-5 PSI (14-34 kPa)
• Maximum Pressure: 105 PSI (724 kPa)
• Minimum Pressure: 20 PSI (138 kPa)
• Water Inlet: 3/8 inch (9.5 mm) O.D. tube
• Water Outlet: 1/4 inch (6.4 mm) O.D. tube
