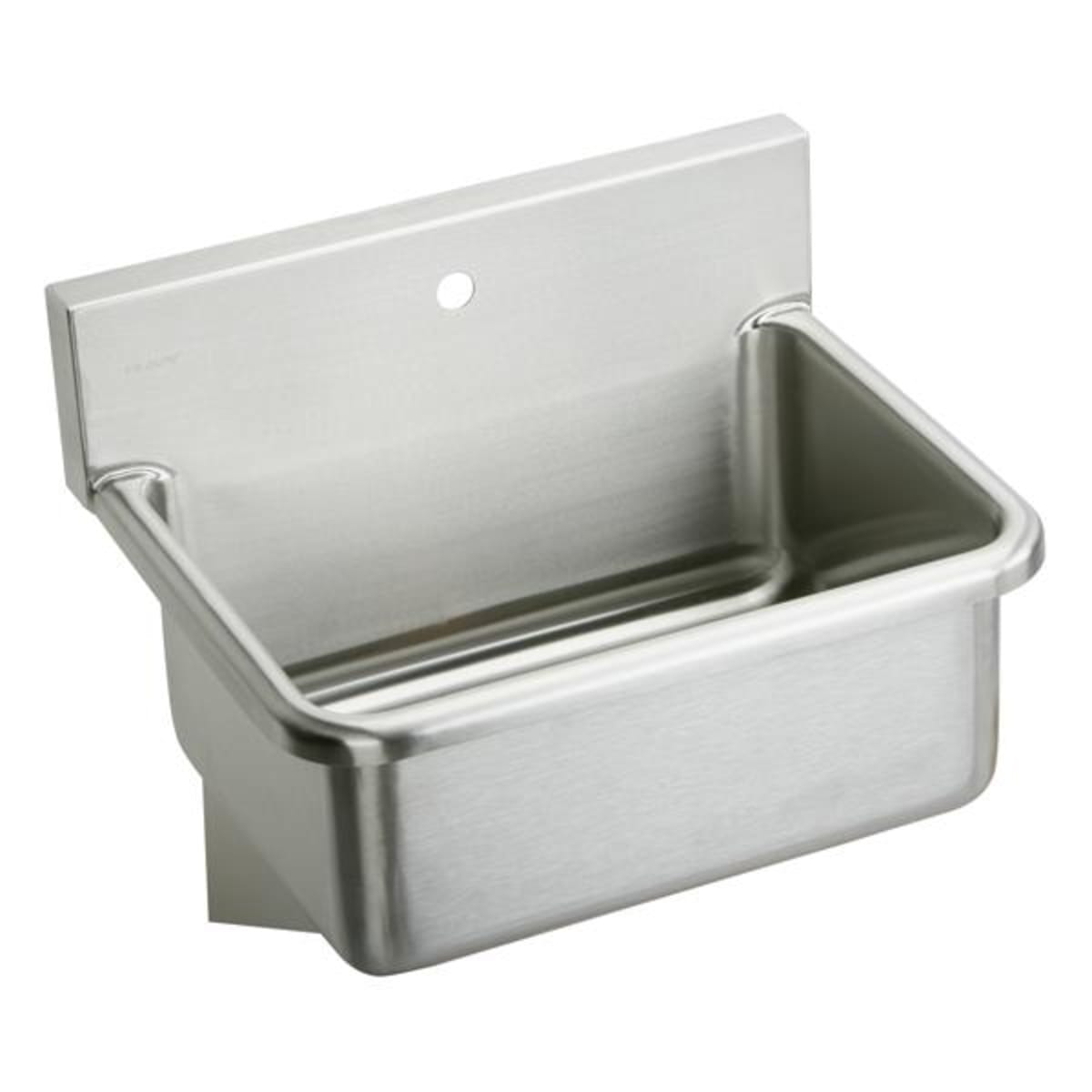

Elkay EWS31201 Hand Wash Sink 31 inches x 19.5 inches x 10-1/2 inches

Product Description

The ELKAY EWS31201 is a stainless steel, wall-hung single bowl hand wash sink. This commercial sink is made from 14-gauge, Type 304 stainless steel. It features 1-3/4" radius coved corners and 1-1/2" rolled rims. Sound-deadening material minimizes sound and vibration.

• Constructed from 14-gauge, Type 304 stainless steel
• Features 1-3/4" radius coved corners and 1-1/2" rolled rims
• Sound-deadening material minimizes sound and vibration

Product Highlights

This ELKAY hand wash sink is ideal for commercial settings, offering durability and noise reduction.

Product Information

Standard Information

• Brand: ELKAY
• Manufacturer Part Number: EWS31201
• Country of Origin: Belgium

Technical Specifications

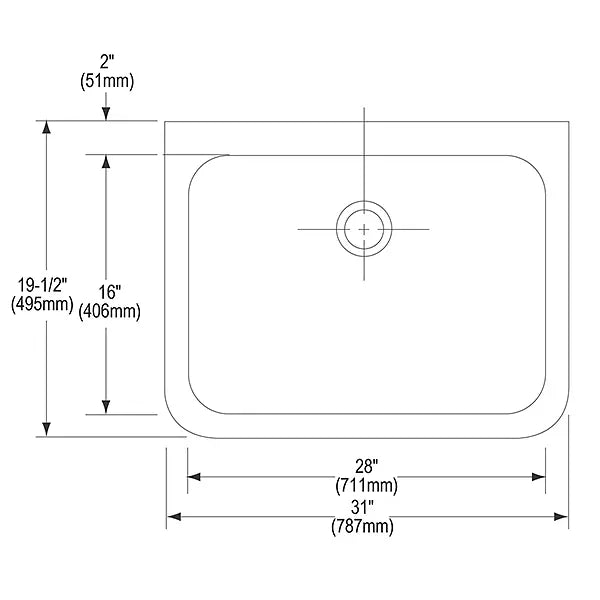

• Size: 31" x 19.5" x 10-1/2"
• Width: 19.50
• Height: 24.3750
• Length: 31"
• Unit_Width: 19.50
• Basin_Depth: 10.5"
• FinishColor: Stainless Steel Tones
• Finish_Name: Stainless Steel
• ADA_Compliant: No
• ASME_Standard: A112.19.3
• CSA_Standards: B45.4
• Installation_Type: Wall-Mount
• Sink_Size_Front_Back: 16" - 19" Front to Back
• Sink_Size_Left_Right: Over 25" Wide
• Buy_America_Act_Compliant: Yes
• Commercial_or_Residential: Primarily Commercial
• Material: stainless steel
• Number of Bowls: 1
• Bowl Size: 28" x 16"
• Bowl Depth: 10-1/2"
• Bowl Shape: Rectangle
• Drain Opening: 3-1/2"
• Mounting Type: Wall Hung
• Overall Width: 19-1/2"
• Overall Height: 24-3/8"
• Overall Length: 31"
• Number of Holes: 1
• With Faucet / Without Faucet: Without Faucet
• Gauge: 14
• Minimum Cabinet Size: 0"
• Bowl 1 Dimensions: L: 28"
• Hole Drillings: 1
• Drain Size Bowl 1: 3-1/2"
• Code Compliance: ASME A112.19.3 CSA B45.4 cUPC IPC
• Corner Radius: 1-3/4"-radius coved corners
• Rim: 1-1/2" rolled rims
• Backsplash: 6"-high, full-length backsplash
• Faucet Holes: 1
• Basin Depth: 10.5 in.
• Basin Length: 28 in.
• Basin Width: 16 in.
• Drain Hole: 3.5 in.
• Faucet Hole Size: 1.25 in.
• Drain Placement: Center
• Sink Material: Stainless Steel
• Sink Shape: Rectangular
• ADA: No
• Approved for Commercial Use: Yes
• Brand: Elkay Manufacturing
• Domestic/Import: Import
• Drain Opening Size: 3-1/2 in
• Finish/Color: Buffed Satin
• Number of Basins: 1
• Number of Faucet Holes: 2
• Overall Dimensions: 31 in W x 19-1/2 in D x 10-1/2 in H
• Shape: Rectangle
