Product Description

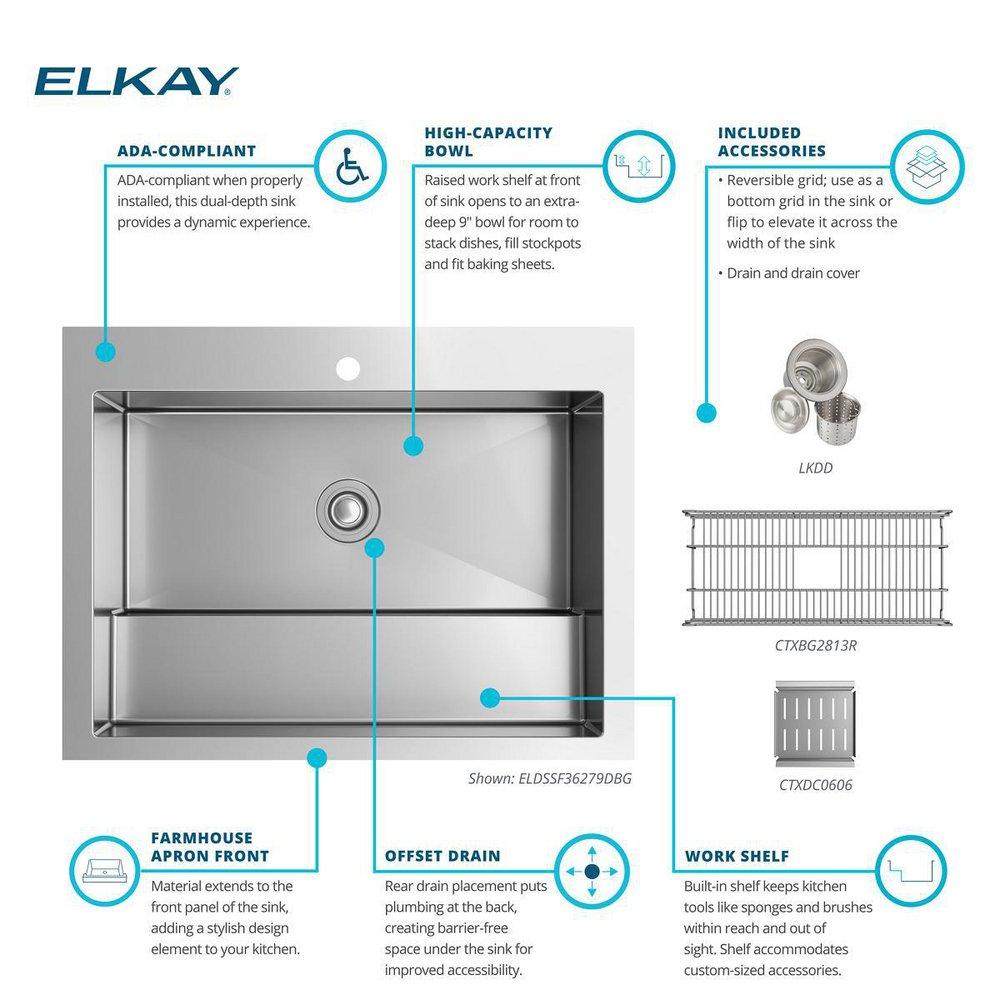

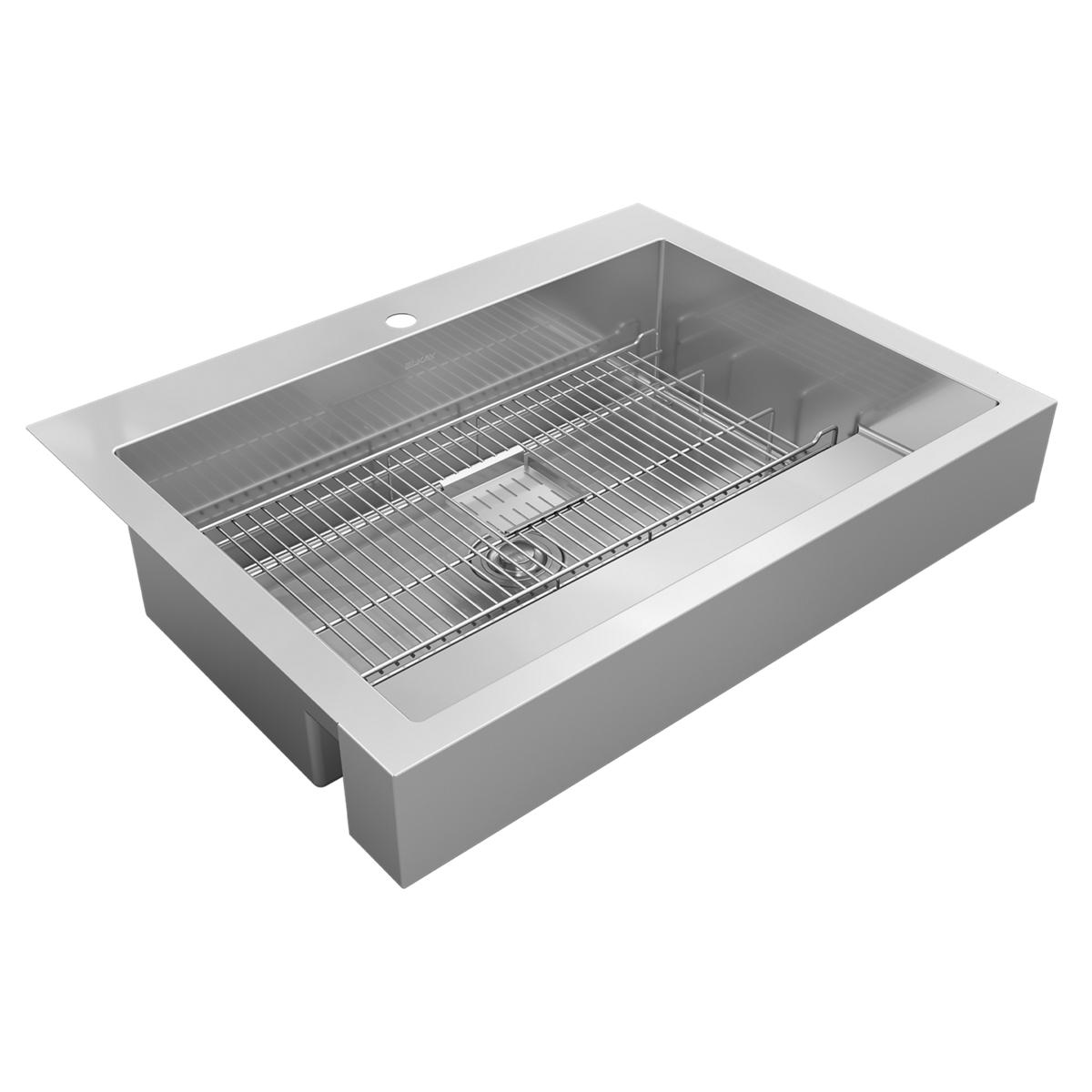

The Elkay ELDSSF36279DBG Dart Canyon sink is an ADA stainless steel farmhouse sink designed to comply with ADA accessibility guidelines. It features a raised work shelf at the front, allowing for kitchen tasks to be completed while seated. The extra-deep back bowl offers more room for stacking and soaking dishes.
- ADA compliant when properly installed.
- Rear drain placement puts plumbing at the back for wheelchair accessibility.
- Raised work shelf at front of sink opens to extra-deep 9" bowl.
Product Highlights

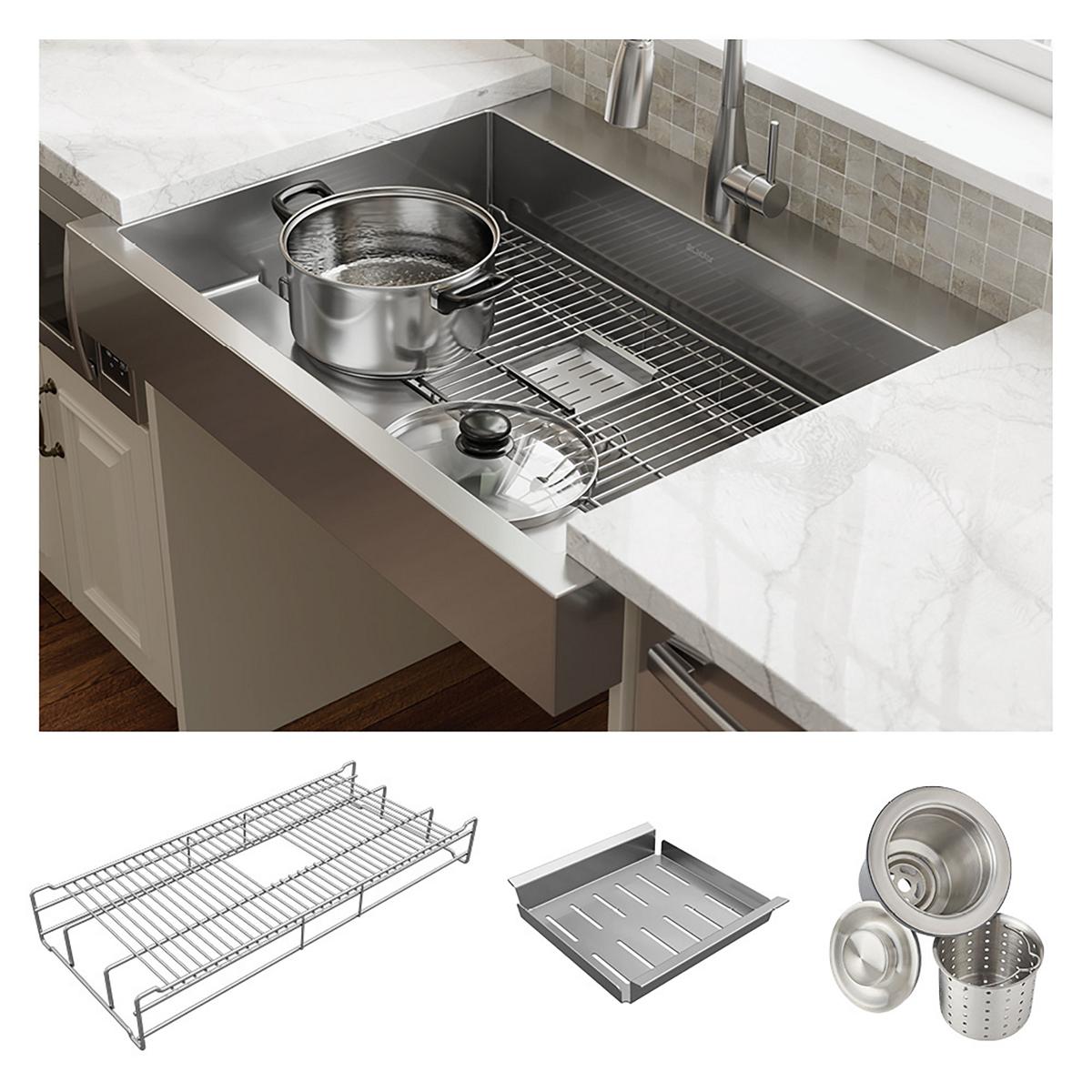

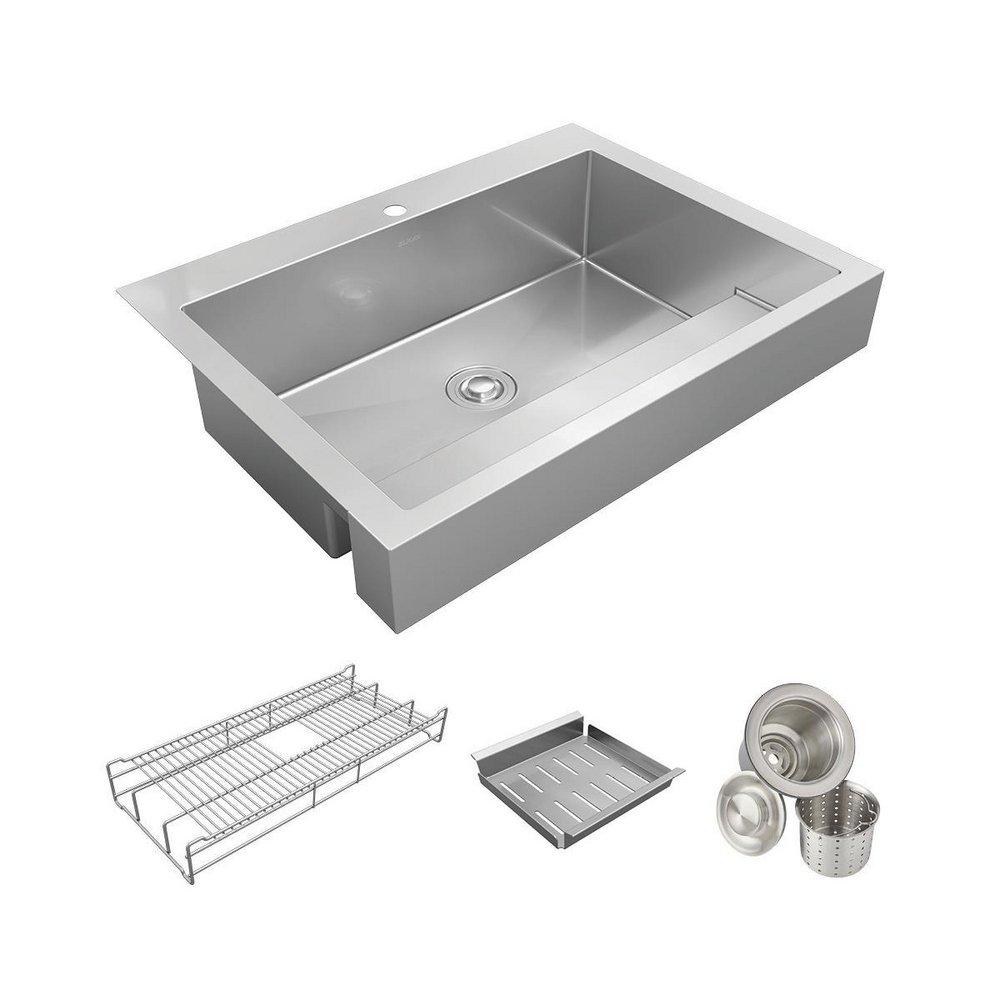

This dual-depth workstation sink with accessories brings accessibility to the kitchen.
Product Information
Standard Information
-
Brand: ELKAY
-
Manufacturer Part Number: ELDSSF36279DBG
Technical Specifications
-
Category: ADA Sink
-
Guage: 16
-

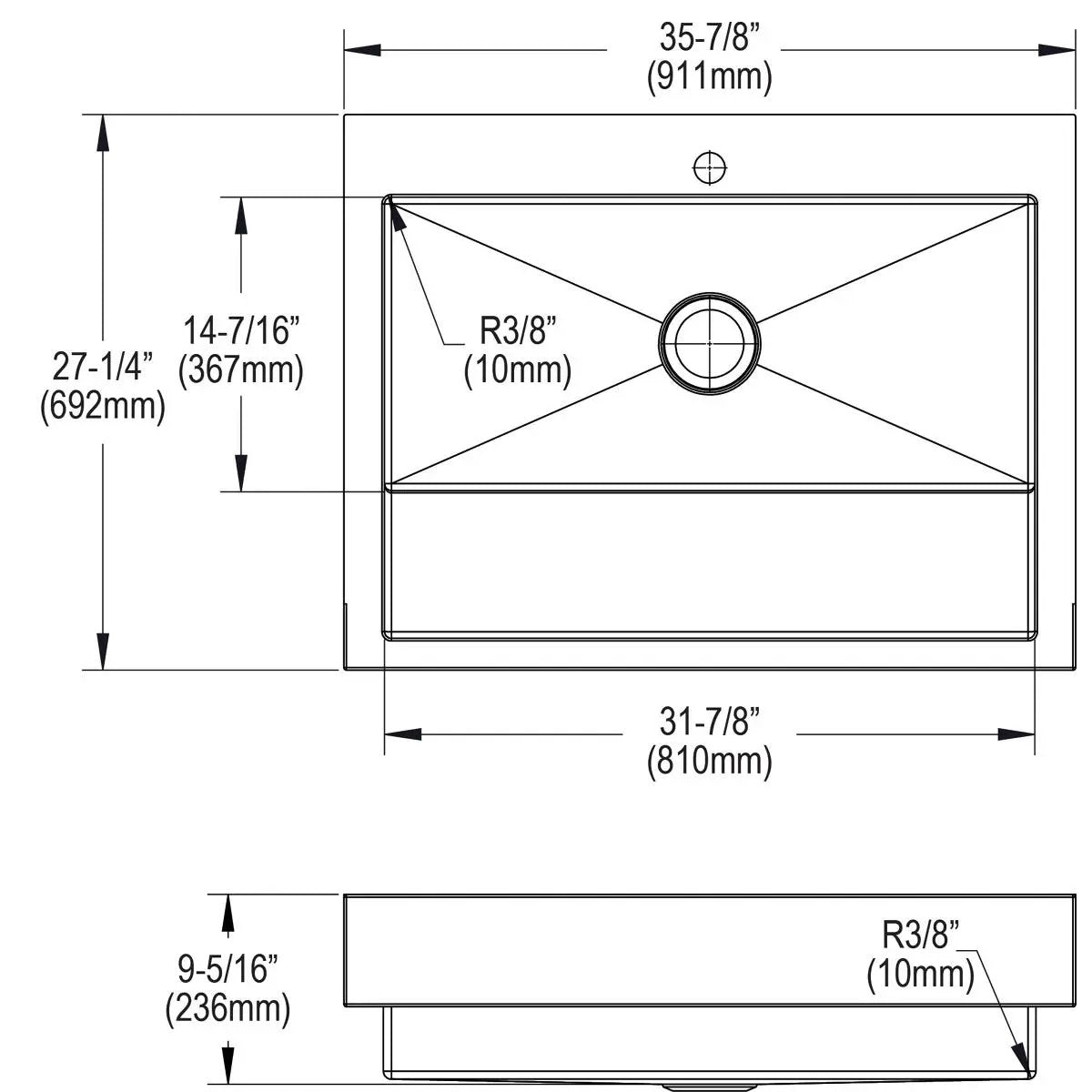

Overall Dimensions (L x W x H): 35-7/8 x 27-1/4 x 9-5/8
-
Sink Depth: 9.625
-
Brand: Elkay
-
Material: Stainless Steel
-
Installation Type: Farmhouse
-
Sink Kits: Yes
-
Features: Work Shelf, Workstation
-
Sound Deadening: Full spray sides and bottom with Sides and Bottom pads
-
Number of Bowls: 1
-
Minimum Cabinet Size: 36"
-
Dimensions: L: 35-7/8"
W: 27-1/4"
H: 9-5/8"
-
Bowl 1 Dimensions: L: 31-7/8"
W: 14-7/16"
H: 9-5/8"
-
Hole Drillings: 1
-
Drain Size Bowl 1: 3-1/2"
-
ADA: Yes
-
Code Compliance: ASME A112.19.3
ASME A112.18.2
CSA B45.4
CSA B125.2
cUPC
IPC
-
Room: Kitchen
