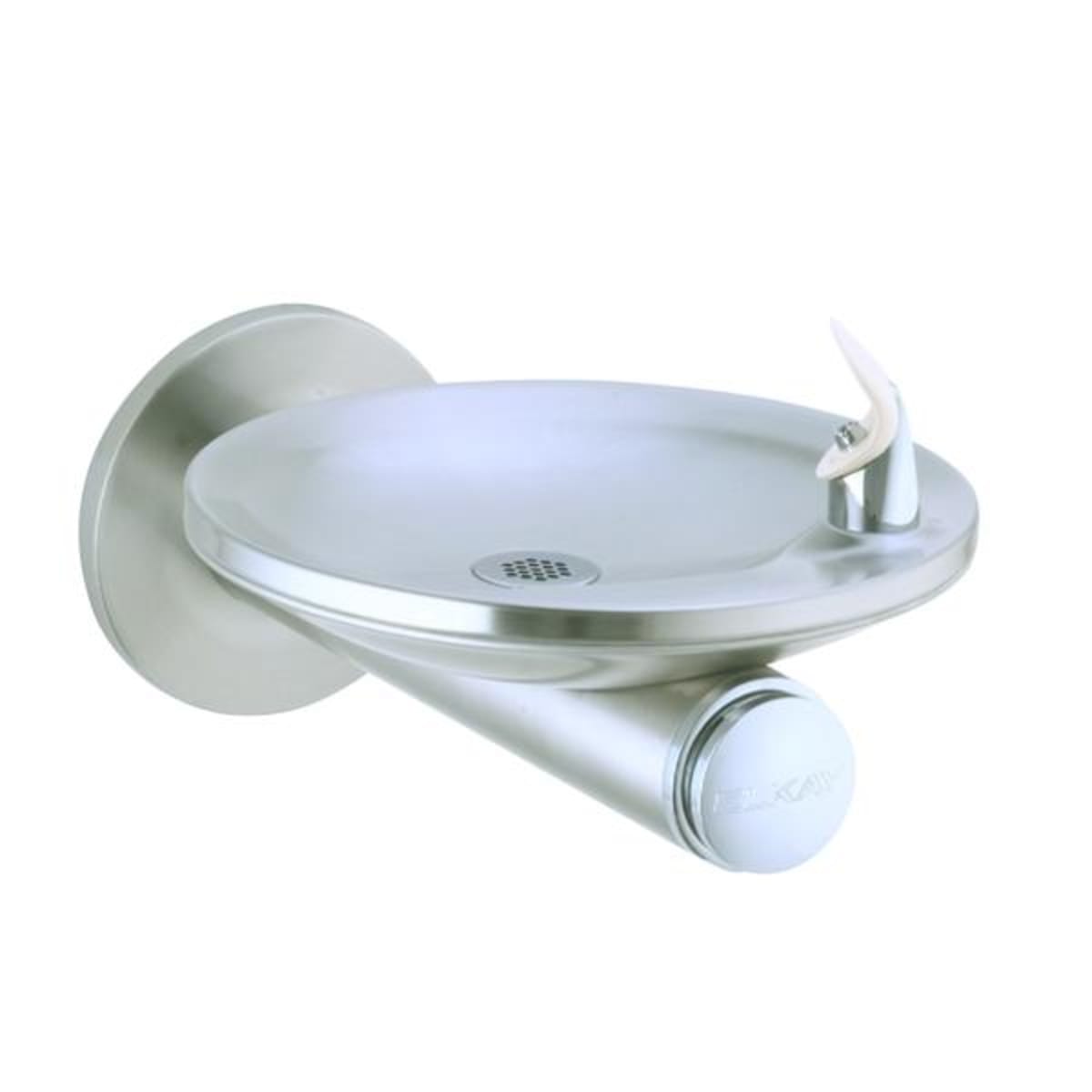

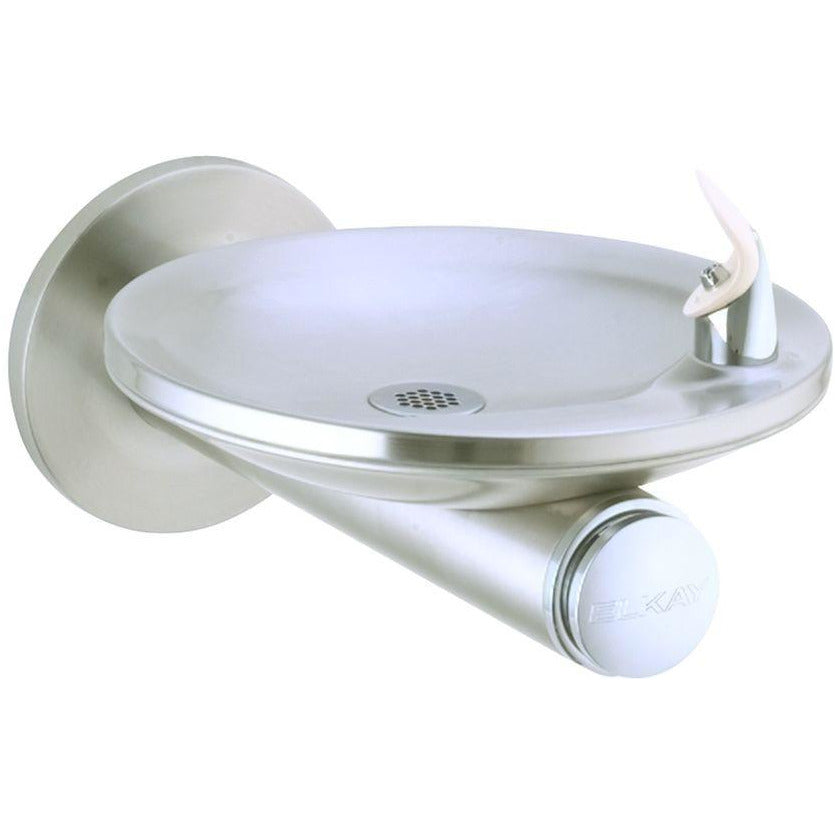

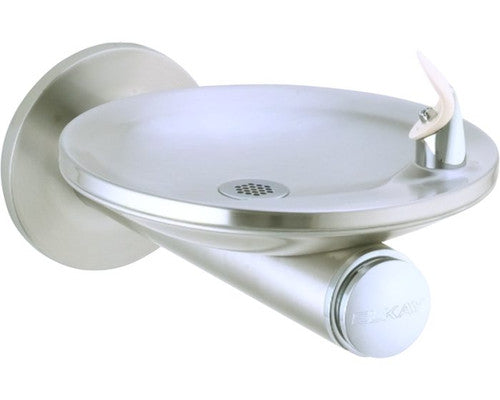

Elkay EDFPB114C SwirlFlo Single Fountain Non-Filtered Non-Refrigerated Stainless

Product Description

The ELKAY EDFPB114C SwirlFlo architectural drinking fountain features sleek styling with a Contoured oval basin designed to provide a splash-resistant surface. The patented stainless steel design enhances any architectural design. It is rated for indoor or outdoor use. Mechanical bubbler push button continues to provide water when electrical service is interrupted.

• Sleek styling with a Contoured oval basin
• Splash-resistant surface
• Patented stainless steel design
• Mechanical bubbler push button

Product Highlights

The ELKAY EDFPB114C drinking fountain features a Flexi-Guard bubbler that provides a flexible antimicrobial mouth guard. The stainless steel finish is corrosion resistant. One-piece back panel eliminates unsightly seams.

Product Information

Standard Information

• Brand: ELKAY
• Manufacturer Part Number: EDFPB114C
• Country of Origin: United States

Technical Specifications

• Width: 18.3750
• Height: 11.3125
• Length: 14
• FinishColor: Stainless Steel Tones
• Finish_Name: Stainless Steel
• ADA_Compliant: Yes
• Buy_America_Act_Compliant: No
• Commercial_or_Residential: Primarily Commercial
• Category: Drinking Water Fountain
• Bubbler Style: Flexi-Guard ® Safety Bubbler
• Brand: Elkay
• Type: Single Drinking Fountain
• Material: Stainless Steel
• Operation: Push Bar Fountain
• Standards: ADA and ICC A117.1, ASME A112.19.3/CSA B45.4, Buy American Act, NSF/ANSI 372, NSF/ANSI 61
• Environment: Indoor
• Power Source: No Electrical Required
• Refrigerated: No
• Station Type: Single Fountain
• Antimicrobial: No
• Housing Color: Gray
• Mounting Type: On-Wall
• Overall Depth: 18 3/8 in
• Overall Width: 14 in
• Refrigeration: Non-Refrigerated
• Housing Finish: Plain
• Overall Height: 11 3/8 in
• Housing Material: Stainless Steel
• Vandal Resistant: No
• Includes Pet Bowl: No
• Fountain Actuation: Front Push Button
• Number of Bubblers: 1.0
• Bottle Filler Depth: Not Applicable
• Includes Water Filter: No
• Inlet Connection Type: IPS
• Water Filter Included: Non-Filtered
• Drain Outside Diameter: 1 1/4 in
• Mounting Hole Diameter: 3/8 in
• Housing Material Finish: Gray Stainless Steel Plain
• Number of Mounting Holes: 10
• Bi-Level Field Adjustable: No
• Drinking Fountain Operation: Push Bar Fountain
• Minimum Supply Line Pressure: 20 psi
• Fountain and Bottle Filler Type: Single Fountain
• Maximum Constant Stream Pressure: 105 psi
• Minimum Constant Stream Pressure: 20 psi
• Country of Origin (subject to change): United States
• Brand Name (Brand + SubBrand + Series): ELKAY
• Fountain and Bottle Dispenser Operation: Front Push Button
• Number of Stations: 1
• Power: No Electrical Required
• Chilling Capacity: Non-refrigerated
• Installation Location: Indoor
• Included With Product: Fountain
• Filtered: No
• Code Compliance: ASME A112.19.3/CSA B45.4 CSA B45.4 NSF REG4 NSF 61 NSF 372
• FILTERED?: No
• COOLER CABINET FINISH: Stainless Steel
• BUBBLER OPTION: FlexiGuard Safety
• MOUNTING DETAILS: Wall Mount (On-Wall)
• CHILLING DETAILS: Non-refrigerated
• NUMBER OF STATIONS: Single Stations
• PRODUCT COMPLIANCE: ADA Compliant, NSF 61, NSF 372 (lead free), CAN/CSA 22.2 120, Buy American Act, ASME A112.19.3/CSA B45.4
• Kully Item #: 106889
• Manufacturer: Elkay
• Model #: EDFPB114C
• UPC Code: 094902328263
• Mounting Location: Wall Mounted
• Finish: Stainless Steel
• Mounting Option: Wall Mount (On Wall)
• Code Compliance Drinking Solutions: ADA & ICC A117.1 ASME A112.19.3/CSA B45.4 NSF 372 (lead free) NSF 61
• Code Compliance International: NSF REG4
• Surface Mounting: Yes

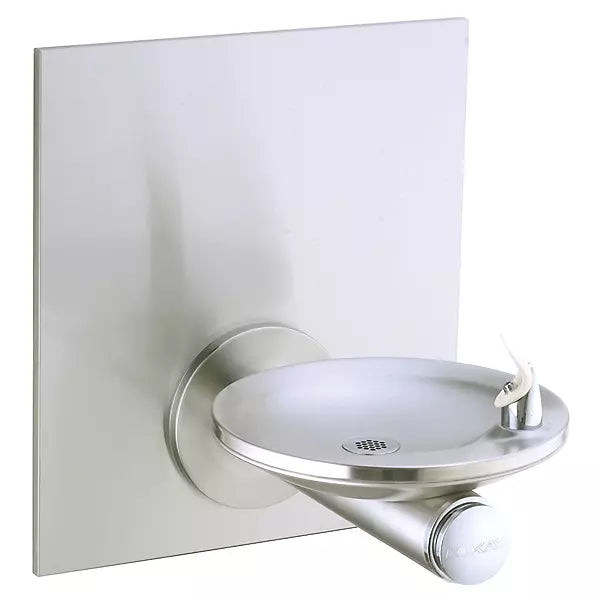

• Included with Product: Fountain with Back Plate
• Note: If rear access is not available front access panels may be required such as ACCESS12X38-5 or AP99
