Product Description

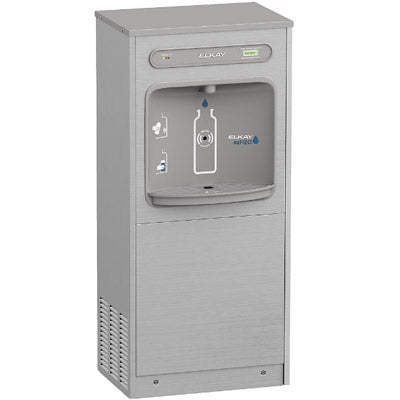

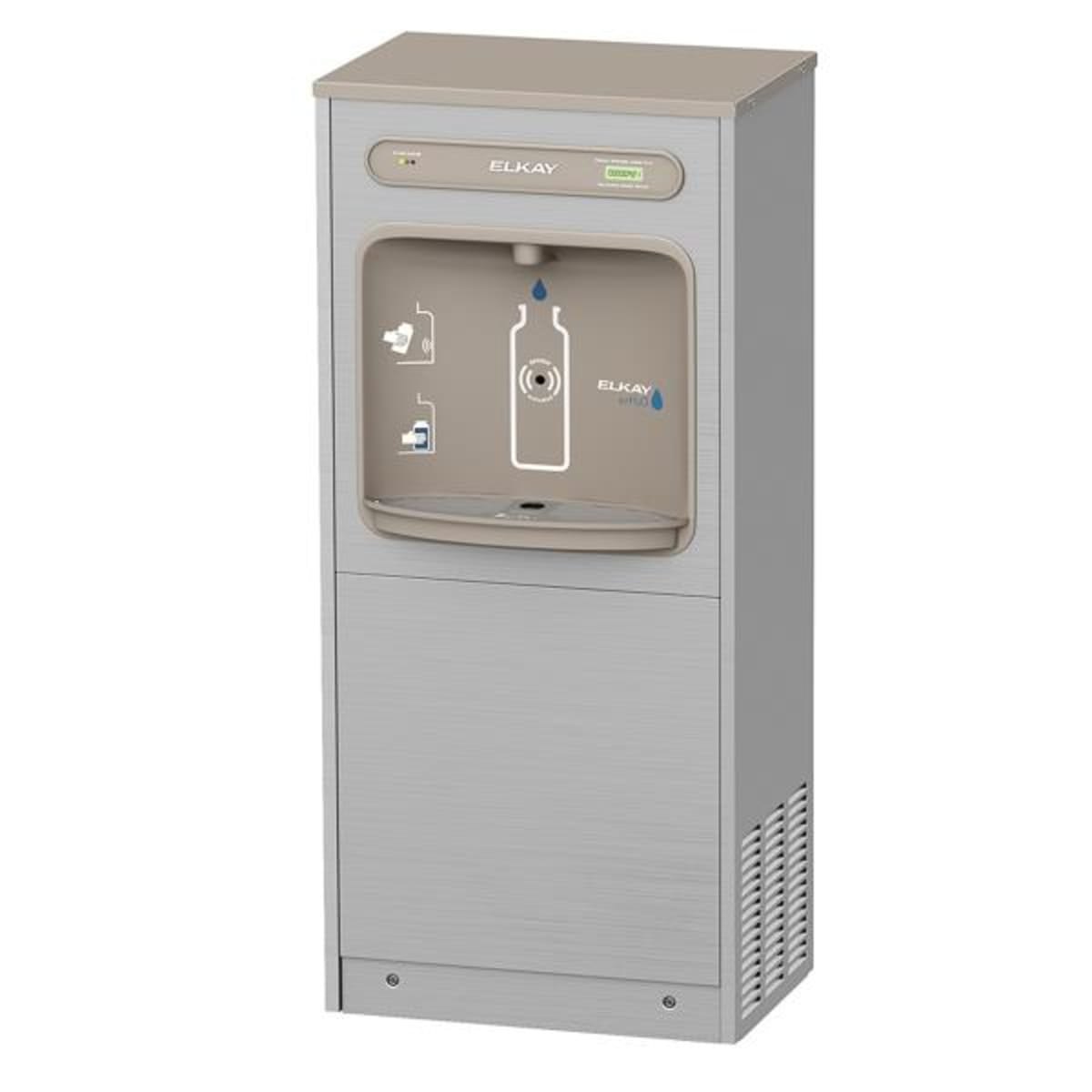

The Elkay DSSBF8S ezH2O floor-standing bottle filling station delivers a clean, quick water bottle fill and enhances sustainability by minimizing dependency on disposable plastic bottles. It can be installed in any indoor location where there is a water supply and drain. Sanitary no-touch sensor activation features an automatic 20-second shut-off timer.
- Touchless, sensor-activated bottle filler, designed for easy use; retrofits existing EFA and LAFE 115V style coolers.
- Traditional floor mount design allows for floor-standing or wall backed installations.
- Green Ticker informs user of number of 20 oz. plastic water bottles saved from waste.

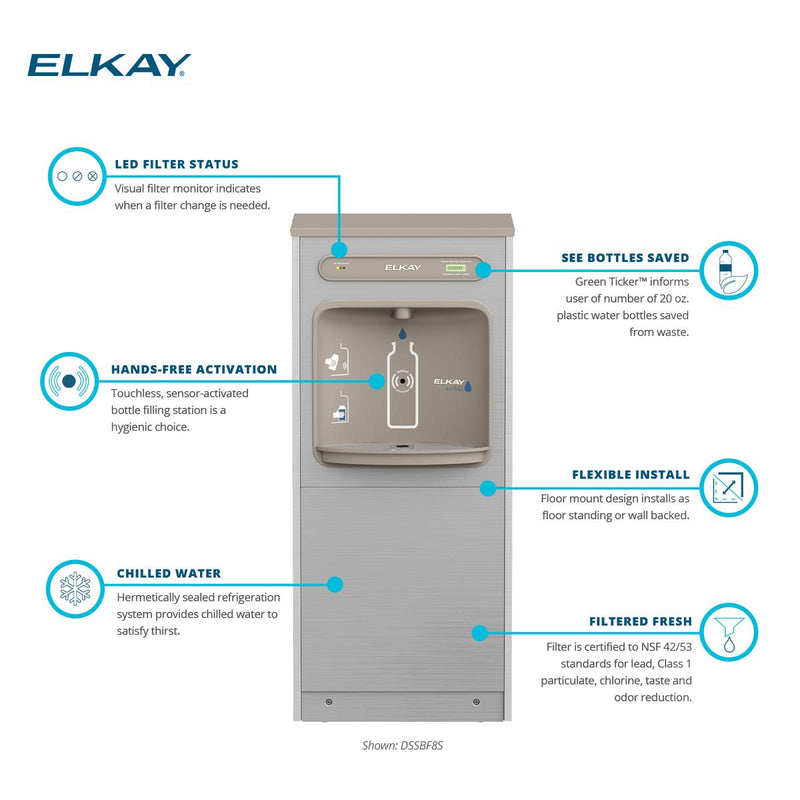

Product Highlights
This floor-standing bottle filling station features a sensor-activated bottle filler, a filter, and a refrigeration system. It is ADA compliant and includes a visual filter monitor.
Product Information
Standard Information
-
Brand: ELKAY
-
Manufacturer Part Number: DSSBF8S
-
Country of Origin: United States
Technical Specifications
-
Width: 15
-
Height: 48
-
Length: 21.50
-
ADA Compliant: Yes
-
Buy_America_Act_Compliant: No
-
Commercial_or_Residential: Primarily Commercial
-
Item [Specifications]: Bottle Filler
-
Finish [Specifications]: Silver Plain
-
Features [Specifications]: Provides Chilled Water, Green Ticker, Hands Free, Laminar Flow, Visual Filter Monitor
-
Environment [Specifications]: Indoor
-
Power Source [Specifications]: Electric Corded
-
Antimicrobial [Specifications]: Yes
-
Housing Color [Specifications]: Silver
-
Overall Depth [Specifications]: 21 1/2 in
-
Overall Width [Specifications]: 15 in
-
Refrigeration [Specifications]: Refrigerated
-
Housing Finish [Specifications]: Plain
-
Overall Height [Specifications]: 48 in
-
Cooling Capacity [Specifications]: 8 gph @ 50 Degrees F
-
Housing Material [Specifications]: Stainless Steel
-
Refrigerant Type [Specifications]: R134A
-
Operating Voltage [Specifications]: 115V AC
-
Chiller Compatible [Specifications]: Yes
-
Dispenser Actuation [Specifications]: Sensor
-
Includes Water Filter [Specifications]: Yes
-
Water Filter Included [Specifications]: Filtered
-
Drain Outside Diameter [Specifications]: 1 1/2 in
-
Includes Water Chiller [Specifications]: Yes
-
Temperature Adjustment [Specifications]: Adjustable
-
Filter Status Indicator [Specifications]: Yes
-
Maximum Cold Water Temperature [Specifications]: 50 Degrees F
-
Country of Origin (subject to change) [Specifications]: United States
-
Number of Stations: 1
-
Features: Antimicrobial, Chilled Water, Energy Savings, Filtered, Green Ticker , Hands Free, Laminar Flow, Visual Filter Monitor
-
Power: 115V/60Hz
-
Bubbler Style: No Bubbler
-
Mounting Type: Floor Mount/Freestanding
-
Chilling Capacity: 8.0 GPH
-
Installation Location: Indoor
-
Application: Classroom
-
Included With Product: Bottle filler, filter
-
ADA: Yes
-
Filtered: Yes
-
Code Compliance: CSA C22.2 No. 120, NSF 42, NSF 53, NSF 401, UL 399, FCC & ISED, NSF 61, NSF 372
-
Brand: Elkay
-
MPN: DSSBF8S
-
GTIN: 0094902133140
-
UPC: 0094902133140
-
Installation Type: Free-Standing
-
Number of Faucets: 1 Faucet
-
Model: DSSBF8S
-
Item: Water Cooler
-
Indoor/Outdoor Use: Indoor
