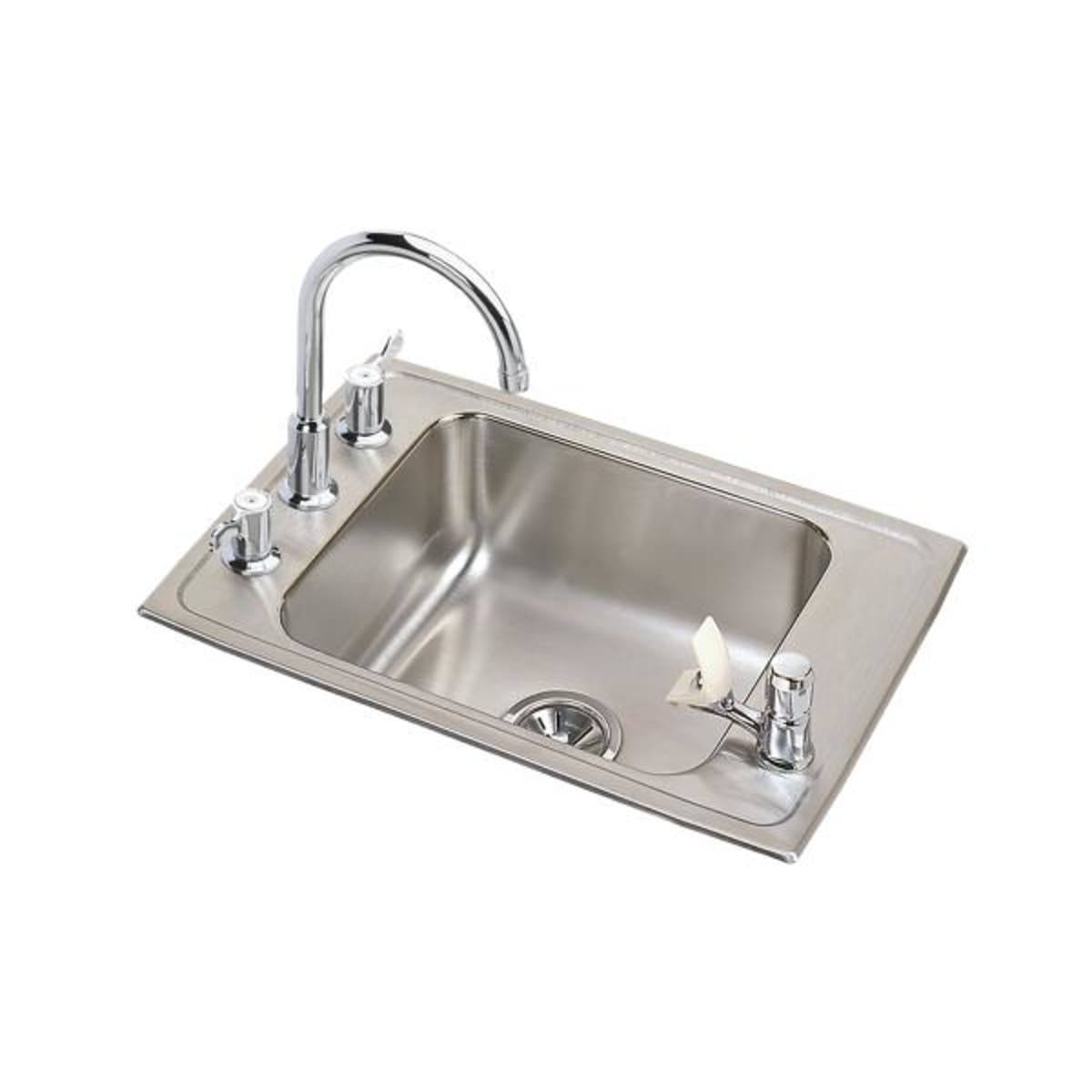

Elkay DRKR3119C Lustertone Classic Stainless Steel 31 inches x 19-1/2 inches x 7-5/8 inches 4-Hole Single Classroom Sink + Faucet/Bubbler Kit

Product Description

The Elkay DRKR3119C Lustertone Classic stainless steel sink looks great. The scratch-resistant, uniform grain is suitable for heavy-duty use in kitchens, bars, laundry rooms, or commercial settings. Light scratches blend naturally over time, while deeper scratches can be repaired with a restoration kit. This kit includes LKD2439C faucet, LK1141A bubbler, and LK35 strainer.

• Scratch resistant finish stands up to everyday use and is repairable.
• Drop-in installation makes the sink a focal point of your room.
• Constructed of 18-gauge Type 304 stainless steel for lasting durability.

Product Highlights

This Elkay Lustertone Classic sink features a sound-deadening pad, U-channel installation, and a 3-1/2" drain opening compatible with standard garbage disposals. Minimum cabinet size is 27".

Product Information

Standard Information

• Brand: ELKAY
• Manufacturer Part Number: DRKR3119C
• Country of Origin: United States

Technical Specifications

• Size: 31" x 19-1/2" x 7-5/8"
• Gauge: 18
• Width: 19.50"
• Height: 7.6250"
• Length: 31"
• Material: Stainless Steel
• Drain_Size: 3.5"
• Basin_Depth: 7.625"
• FinishColor: Stainless Steel Tones
• Finish_Name: Lustrous Satin
• ADA_Compliant: No
• Number_of_Bowls: 1
• Installation_Type: Drop-in/Sink Kits
• Number_of_Faucet_Holes: 4
• Commercial_or_Residential: Primarily Residential
• Overall Dimensions (L x W x H): 31 x 19-1/2 x 7-5/8
• Finish: Lustrous Satin
• Category: Sink
• Includes: LKD2439C Faucet, LK1141A Bubbler, LK35 Strainer
• Standards: ASME A112.19.3/CSA B45.4
• Overall Width: 19.5 in
• Overall Height: 7.625 in
• Overall Length: 31 in
• Country of Origin (subject to change): United States
• Manufacturer: Elkay
• Manufacturer #: DRKR3119C
• Parts Town #: ELKDRKR3119C
• Units: Each
• Sink Height: 7-5/8"
• Basin Width: 16"
• Basin Length: 22"
• Basin Depth: 7-1/2"
• Installation Type: Drop In
• Drain Outlet Connection: 3-1/2"
• Minimum Base Cabinet Width: 36"
• Faucet Overall Height: 11"
• Faucet Spout Height: 7"
• Faucet Spout Reach: 7"
• Faucet Flow Rate: 2.5 GPM (gallons per minute)
• Faucet Maximum Deck Thickness: 1-1/4"
• Bubbler Height: 3-11/16"
• Bubbler Depth: 3-1/4"
• Bubbler Spout Height: 1-7/8"
• Water Connection: 1/2"
• Faucet Centers: 8 in.
• Faucet Hole Size: 1.25, 1.5 in.
• Max Deck Thickness: 1.25 in.
• Minimum Cabinet Size: 36 in.
• Nominal Length: 31 in.
• Nominal Width: 20 in.
• Model: DRKR3119C
• Description: Elkay DRKR3119C Lustertone Classic Stainless Steel 31" x 19-1/2" x 7-5/8", 4-Hole Single Classroom Sink with Faucet and Bubbler Kit
• Product Type: Drop In Laundry And Utility Sink
• Depth: 7.63"
• Collection: Lustertone® Classic
• UPC: 094902007366
• Online Product ID: 83707
• Product Line: Elkay Residential
• Introduction Date: 6/3/12
• Style: Traditional
• Low Lead Compliant: Yes
• Drain Position: Center
• Number of Basins: 1
• Mounting: Drop-in, Sink Kits
• Holes: 4
• Sink Depth: 7.625"
• ASME: Yes
• CEC: Yes
• Unit Of Measure: Each
• Application: Classroom
• Base Sink Less Hole Drilling: DRKR3119C
• Countertop Cutout Dimensions: 30-3/8'' x 18-7/8'' (772mm x 479mm) with 1-1/2'' (38mm) Corner Radius
• Csa Standards: CSA B45.4, CSA B125.1, CSA B125.2
• Depth Bowl 1: 7.5
• Drain Placement Bowl 1: Center Center
• Drain Size Bowl 1: 3.5
• Drainboard Type: No Drainboard
• Faucet Hole Number: 4
• Gallons To Overflow: 10.8
• Include With Product: LKD2439C faucet, LK1141A bubbler, LK35 strainer
• Included Accessories: LK1141A, LK35
• Includes Msds: No
• Lead Law Third Party Certified: Yes
• Lead Leaching Nsf61 Ab100 Applicable Marked: Yes
• Lead Leaching Nsf61 Ab100 Compliant: Yes
• Lead Leaching Nsf61 Ab100 Third Party Certified: Yes
• Length Bowl 1: 22
• Minimum Cabinet Size Inches: 36
• Mount Hardware Included: Part No. 64090014 Included for Countertops up to 3/4'' (19mm) Thick
• Mounting Hardware Qty: 1
• Npcc: Yes
• Nsf Standard 372: Yes
• Nsf Standard 61: Yes
• Related Item Id: DRKR31194
• Shape Bowl 1: Rectangle
• Sound Deadening: Sides and Bottom Pads
• Substitution Item: DRKR31194
• Upc Listed: cUPC
