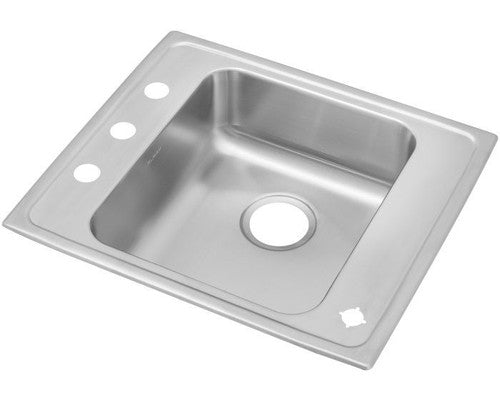

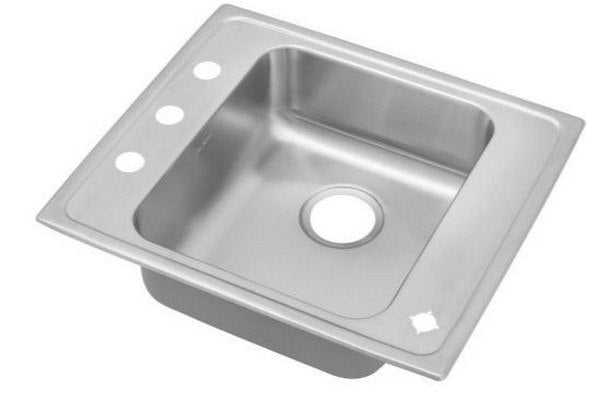

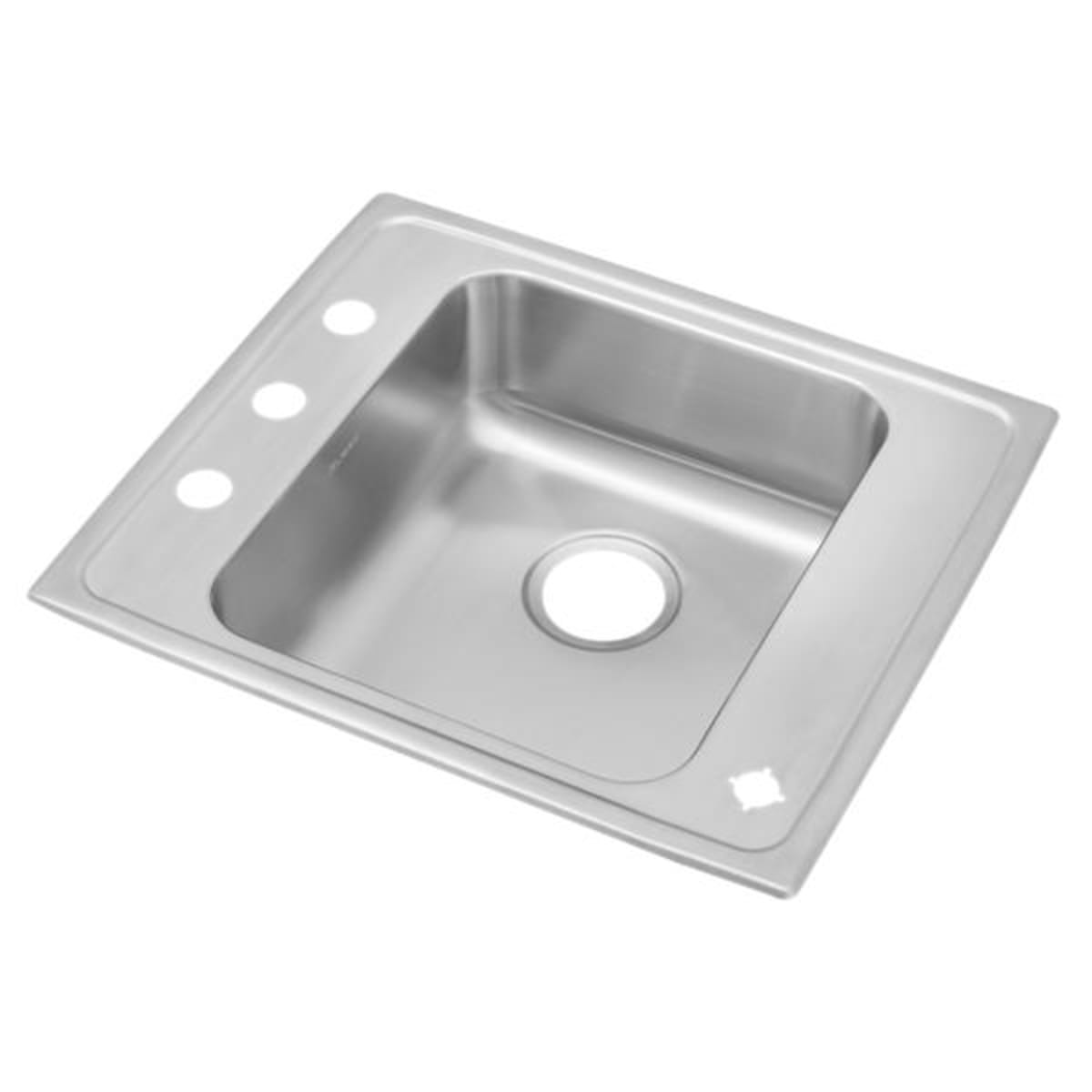

Elkay DRKAD222055FR4 Lustertone Classic Stainless Steel 22 inches x 19-1/2 inches x 5-1/2 inches Single Bowl Drop-in Classroom ADA Sink

Product Description

The ELKAY DRKAD222055FR4 Lustertone Classic Stainless Steel Single Bowl Drop-in Classroom ADA Sink is an 18-gauge Type 304 stainless steel sink designed for heavy-duty use in educational or commercial settings. Measuring 22" x 19-1/2" x 5-1/2", its scratch-resistant finish maintains its appearance over time, with light scratches blending into the lustrous satin grain. This ADA compliant sink features a drop-in installation and a 3-1/2" drain opening, suitable for standard garbage disposals.

• ADA compliant design ensures accessibility when properly installed.
• Constructed from 18-gauge Type 304 stainless steel for durability and scratch resistance.
• Features Sound Guard Technology with large pads for enhanced sound deadening.

Product Highlights

Durable 18-gauge stainless steel ADA compliant sink with scratch-resistant finish and sound-deadening technology.

Product Information

Standard Information

• Brand: ELKAY
• Manufacturer Part Number: DRKAD222055FR4
• Country of Origin: USA

Technical Specifications

• Overall Length: 22"
• Overall Width: 19.50"
• Overall Height: 5.50"
• Bowl Depth: 5.5"
• Material: 18-Gauge Type 304 Stainless Steel
• Gauge: 18
• Installation Type: Drop-In
• Number of Bowls: 1
• Drain Opening: 3.5"
• Finish: Lustrous Satin
• ADA Compliant: Yes
• Number of Faucet Holes: FR4
• Application: Classroom ADA Sink
• Bowl Shape: Rectangle
• Faucet Included: Without Faucet
• Country of Origin: United States
• Collection: Lustertone Classic
• Cutout Dimension: 21-3/8" x 18-7/8" (543mm x 479mm) with 1-1/2" (38mm) corner radius
• Gallons to Overflow: 7
• Inside Bowl Dimensions: 16" x 13.5" x 5.375"
• Made In USA: Yes
• Minimum Cabinet Size: 27"
• Mounting Hardware Included: Part # 64090012 included for countertops up to 3/4" (19mm) thick (1 qty)
• Sound Deadening: Bottom only pads
• Drain Placement: Rear Center
• Faucet Hole Size: 1.5
• ASME Compliant: Yes
• NSF Certified: No
