Elkay DRKAD2220554 Lustertone Classic Stainless Steel 22 inches x 19-1/2 inches x 5-1/2 inches Single Bowl Drop-in Classroom ADA Sink

Product Description

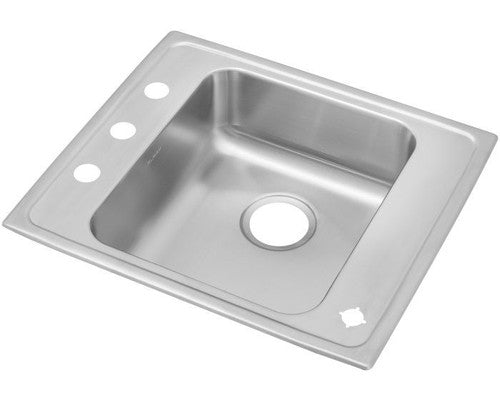

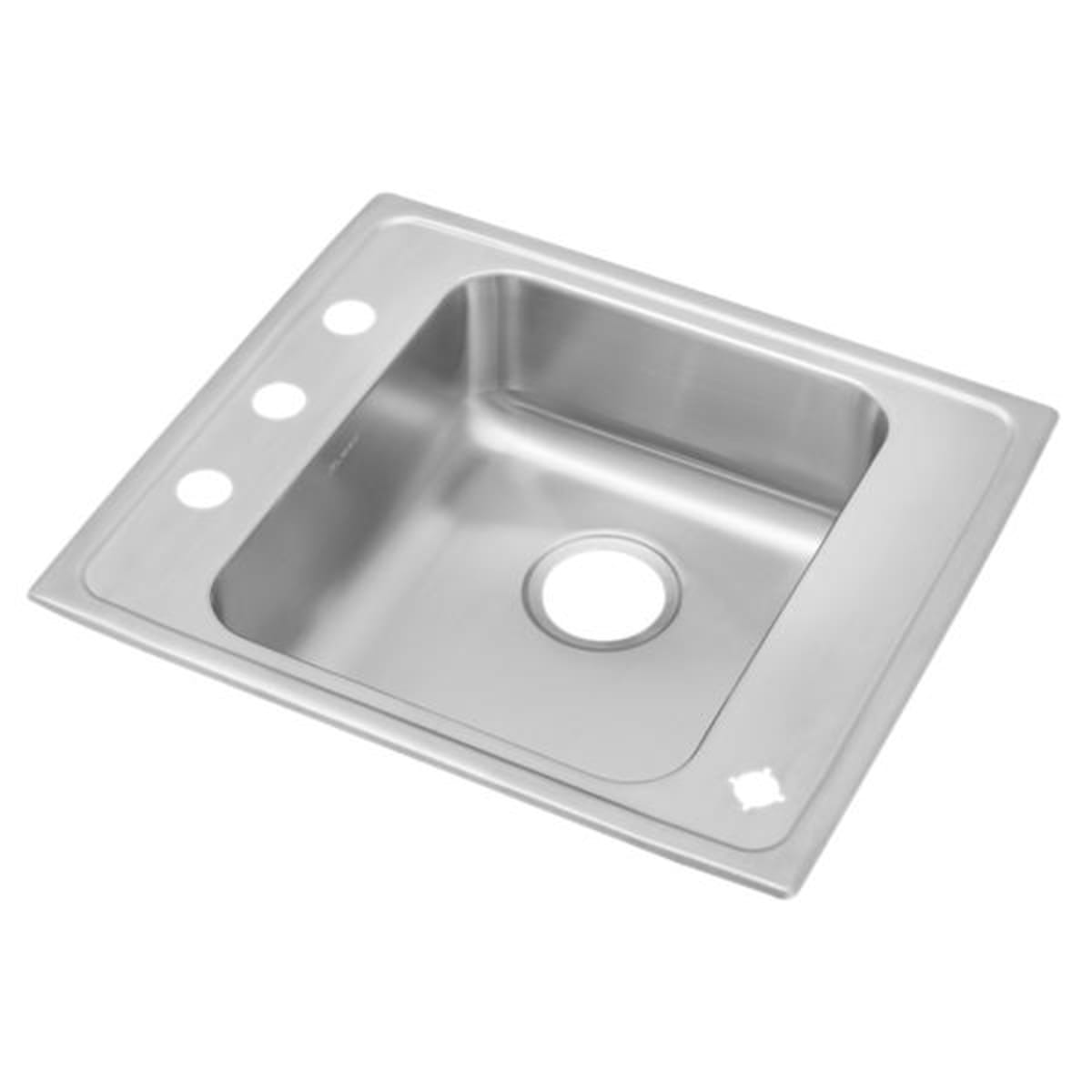

The ELKAY DRKAD2220554 Lustertone Classic Stainless Steel Sink is a single bowl drop-in classroom ADA compliant sink, measuring 22" x 19-1/2" x 5-1/2". Constructed from 18-gauge Type 304 stainless steel, it features a scratch-resistant finish with a uniform grain. Light scratches blend into the finish over time, and deeper scratches are repairable. Sound-deadening pads minimize noise, and an offset drain provides more usable basin space.

• ADA compliant when properly installed for accessibility.
• Scratch-resistant finish with repairable deep scratches for lasting appearance.
• Designed for drop-in installation above the countertop.

Product Highlights

Constructed from 18-gauge Type 304 stainless steel for durability.

Product Information

Standard Information

• Brand: ELKAY
• Manufacturer Part Number: DRKAD2220554
• Country of Origin: USA

Technical Specifications

• Installation Type: Drop-In
• Gauge: 18
• Width: 19.50"
• Height: 5.50"
• Length: 22"
• Material: Lustertone Classic Stainless Steel, 18-Gauge Type 304
• Drain Size: 3.5"
• Basin Depth: 5.5"
• Finish: Lustrous Satin
• ADA Compliant: Yes
• Number of Bowls: 1
• Number of Faucet Holes: 4
• Commercial or Residential: Primarily Residential
• Item: Classroom Sink
• With Faucet / Without Faucet: Without Faucet
• Country of Origin: United States
• Series: Lustertone
• Drain Placement: Rear Center
• Collection: Lustertone Classic
• UPC: 94902176123
• Product Line: Elkay Residential
• Made in USA: Yes
• Application: Classroom
• Buy American Act Compliant: Yes
• Certifying Agency: IAPMO (cUPC_sinks)
• Countertop Cut Out Dimensions: 21-3/8'' x 18-7/8'' (543mm x 479mm) with 1-1/2'' (38mm) corner radius
• Minimum Cabinet Size: 27"
• Mounting Hardware Included: Part No. 64090012 included for countertops up to 3/4'' (19mm) thick
• Product Compliance: ICC A117.1, ASME A112.19.3/CSA B45.4
• Sound Deadening: Bottom only pads
• Bowl Shape: Rectangle
• Bowl Dimensions: 13-1/2" X 16" X 5-1/2"
