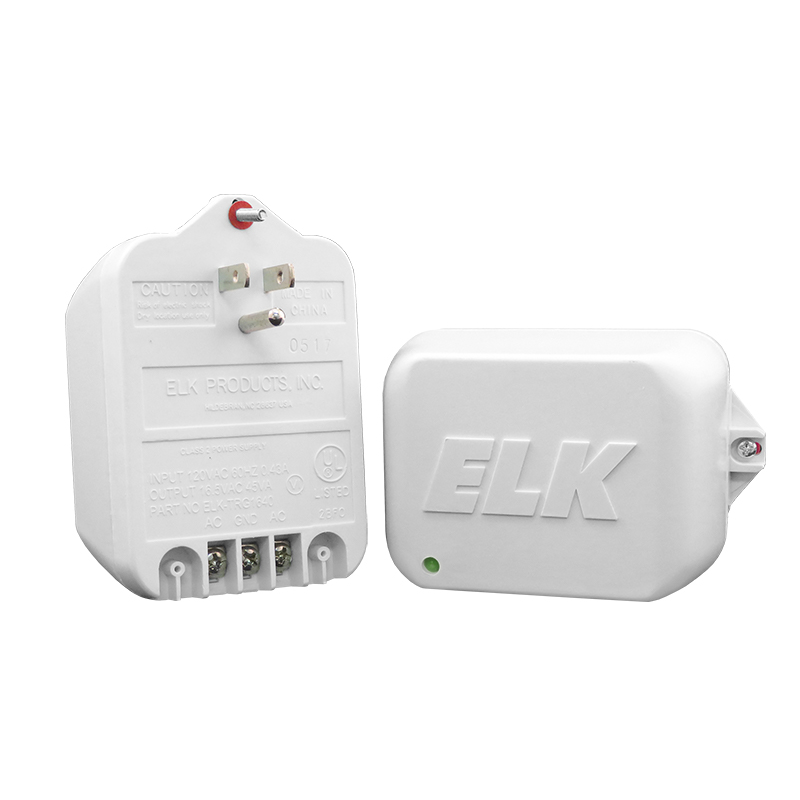

Elk Elk-TRG1640 AC Transformer 16.5VAC, 45 VA

Product Description

The ELK ELK-TRG1640 AC Transformer delivers 16.5VAC at 45 VA. Features include an auto-resetting (PTC) fused secondary and a green power LED indicator. Designed with a grounding prong and terminal, it also has an electrical outlet mounting tab. UL listed and includes wire strain relief.

• Auto-Resetting (PTC) Fused Secondary
• Green Power On LED
• Grounding Prong & Terminal
• Electrical outlet mounting tab

Product Highlights

Professional grade step down transformer for low voltage systems, such as Access Control, Security & CCTV.

Product Information

Standard Information

• Brand: ELK
• Manufacturer Part Number: ELK-TRG1640
• Country of Origin: China

Technical Specifications

• Brand: ELK
• Power Source: Corded Electric
• Mounting Type: Wall Mount
• Current Rating: 2.73 Amps
• Specification Met: UL
• Input Voltage: 120 VAC, 60Hz, .43A
• Output Voltage: 16.5 Volts A.C.
• Output Power: 45 VA
• ADI Part Number: EK-TRG1640
• Manufacturer: ELK Products, Inc
• Manufacturer Part Number: ELK-TRG1640
• Product Model: ELK-TRG1640
• Product Name: Step Down Transformer
• Product Type: Plug-in
• Sector: Intrusion
• Input Receptacle Type: AC Power
• Output Receptacle Type: Screw Terminal
• Form Factor: Plug-in
• Maximum Line Current: 430mA
• Power Rating: 45VA
• Installation Type: Commercial, Residential
• Compatibility: CCTV, Access Control, Low Voltage Systems, Security
• Environmental Certification: RoHS
