Elk Elk-M1KP2 Low Profile LCD Keypad for M1 Controls

Product Description

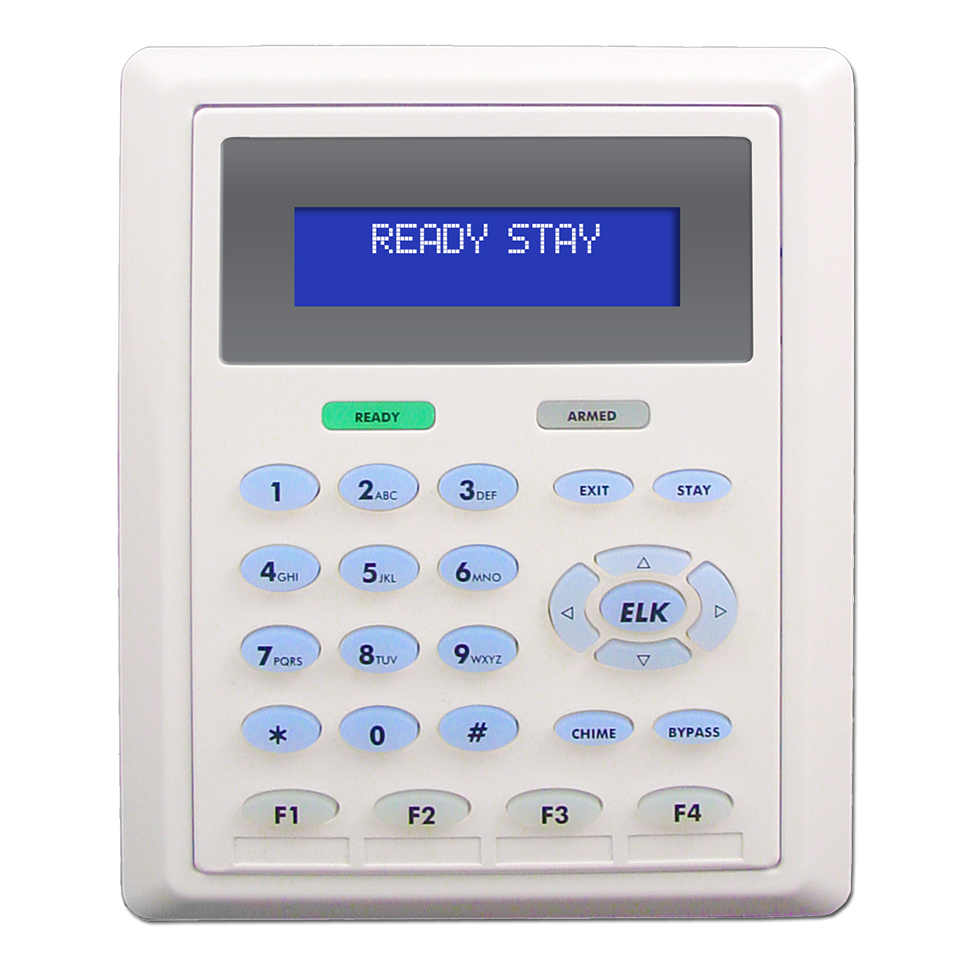

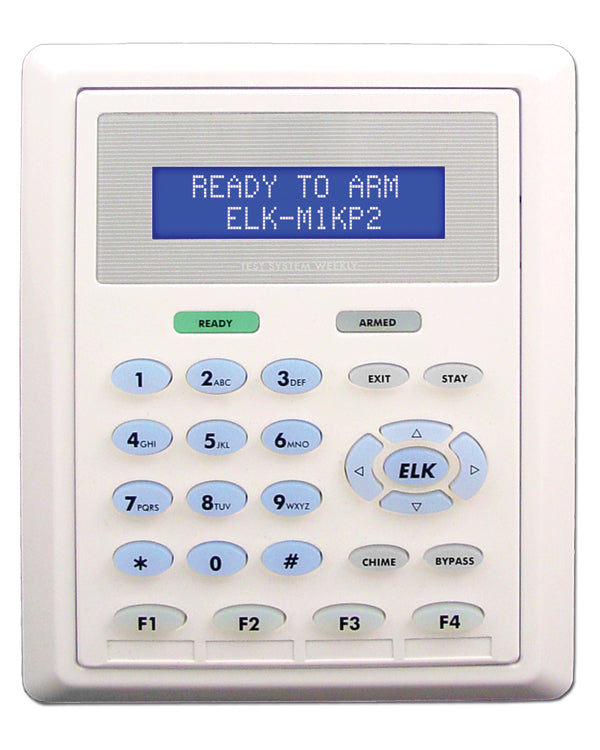

The ELK ELK-M1KP2 is a low profile, addressable LCD Keypad for the M1 family of Cross Platform Controls. It features a 32 character blue/white backlighted display, blue lighted keys and 4 programmable function keys, along with the ELK menu navigation keys. It is compatible with external 26 bit Wiegand compatible proximity readers.

• Blue/white Backlighted Hi-Contrast LCD Display
• Four (4) Programmable Function Keys
• Unique Menu Navigation/Direction Keys

Product Highlights

The ELK-M1KP2 keypad operates from the M1/EZ8 RS-485 Data Bus and has a built-in Piezo sounder with adjustable pitch. It surface mounts to a standard 1 or 2 gang electrical box.

Product Information

Standard Information

• Brand: ELK
• Manufacturer Part Number: ELK-M1KP2
• Country of Origin: United States

Technical Specifications

• Connection: 6 Pin Plug-in "Flying Lead" Connector (Included)
• Operating Voltage: 13.8 VDC
• Current Draw: ~30 mA Idle (low back light level, sounder silent) ~85mA Fully Active (max. back light & sounder active)
• Brand: Elk
• Type: Control Panels & Keypads
• Model: M1KP2
• UPC: 762158550478
• MPN: M1KP2
• Featured Refinements: Keypad
