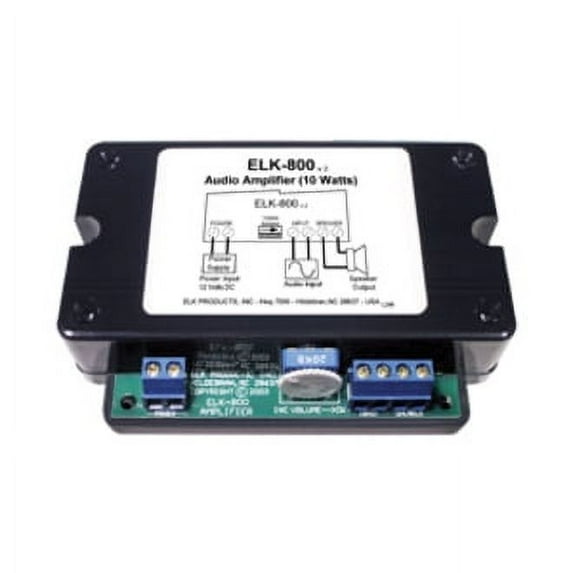

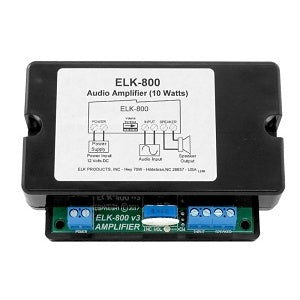

Elk Elk-800 10 Watt Audio Amplifier

Product Description

The ELK ELK-800 is a compact, low cost audio amplifier designed for paging (public address) applications. It can be centrally or remotely installed and operates on low voltage, saving money by requiring only 22-24 gauge telco or alarm type wire. It can drive multiple speakers and features short circuit protection and built-in volume adjust.

• Small, Compact Public Address Amplifier
• Expanded Telephone System Paging
• Amplified Telephone Ringer Where Speaker Tone Signaling Is Available

Product Highlights

This compact amplifier is designed for paging applications and features short circuit protection and a built-in volume control.

Product Information

Standard Information

• Brand: ELK
• Manufacturer Part Number: ELK-800
• Country of Origin: Spojené státy americké

Technical Specifications

• Output Rating: 10 Watts
• Speaker (Output) Load: 2 to 16 Ohms
• Power Input: 12 to 18 Volts AC or DC
• Current Draw: 50 to 800 mA
• Input Impedance: 1000 Ohms nominal
• Voltage: 12 to 18 Volts
• Manufacturer: ELK
• Maximum Supply Voltage: 18 Volts
• Minimum Supply Voltage: 12 Volts
• Mounting Type: Surface Mount
• Brand: ELK
• Number of Channels: 2
• Output Power: 10 Watts
• Rms power rating: 10 W
• Rec. use: PA Systems
• Inputs/Outputs: telephone system paging output, a microphone, or even an ordinary single line phone set
• ADI Part Number: EK-800
• Brand Name: ELK Products
• Manufacturer Part Number: ELK800
• Product Model: ELK-800
• Product Name: 10 Watt Audio Amplifier
• Product Type: Amplifier
• RMS Output Power: 10W
• TAA Compliant: No
• Depth: 3"
• Height: 1.2"
• Width: 4.5"
• Country of Origin: CN
• Environmental Certification: RoHS
• Indoor/Outdoor: Indoor
