Elite Lighting LD6IC-AT-DIMTR-120 Round IC Housing 120 to 277 VAC

Product Description

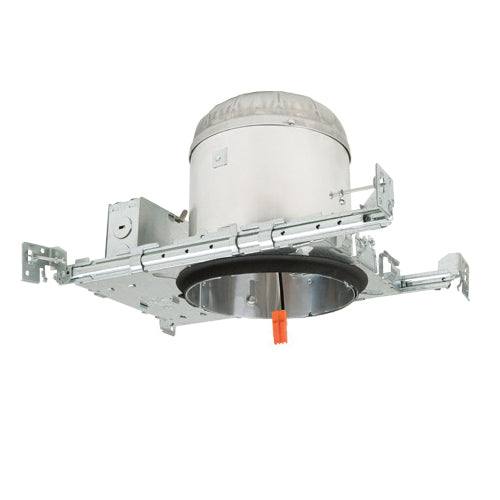

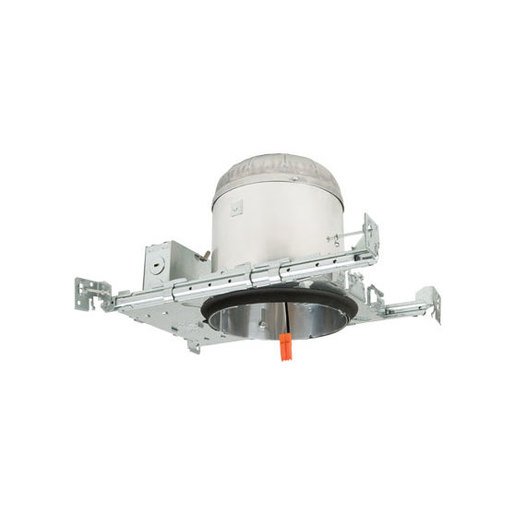

Elite Lighting LD6IC-AT-DIMTR-120 is a round IC housing. It operates on 120 to 277 VAC and has a six-inch ceiling opening. This housing is designed for use with LED lamps and provides insulation contact. The unit is suitable for use in both insulated and non-insulated ceilings. It features an EZ connect wiring system that facilitates efficient installation.

• Designed for new construction installations
• Compatible with multiple LED retrofit modules
• UL Listed for safety compliance

Product Highlights

The LD6IC-AT-DIMTR-120 is engineered to meet California Title 24 standards and has applications in residential lighting setups.

Product Information

Standard Information

• Manufacturer: Elite Lighting
• Voltage Rating: 120 to 277 VAC

Technical Specifications

• Application: Residential Applications
• Ceiling Opening Diameter: 6 inches
• Height: 7-1/4 inches
• Width: 7 inches
• Housing Material: Aluminum/Steel
• Lamp Type: LED
• Mounting Type: Ceiling
• Standards/Approvals: UL Listed, IC Certified, California Title 24
• Suitable For Use With: REL633, REL633-CCT, REL637, RL607, RL611, RL631, RL665, RL630 LED Retrofit Modules
