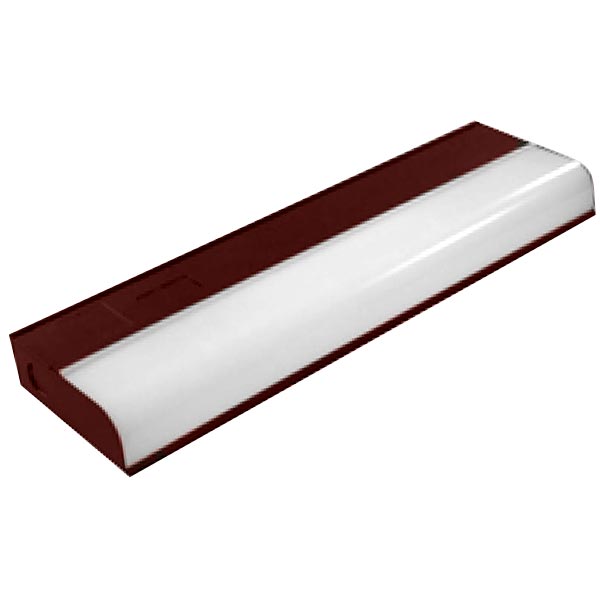

Elite Lighting EULED18600LBZ-3CCT High Performance Slim Link Profile Under Cabinet Lighting Fixture

Product Description

The Elite Lighting EULED18600LBZ-3CCT is a high performance slim link profile under cabinet lighting fixture. This unit is designed for energy-efficient lighting in various applications such as retail displays, gondolas, cove, and undercabinet areas.

• Easy fit cover channel attachment
• Toolless wire way access
• Detachable channel cover for quick installation

Product Highlights

This lighting fixture provides soft lumens through a linear prismatic diffuser that enhances visual comfort. Its design incorporates knockouts in the back, side, and rear for straightforward installation.

Product Information

Standard Information

• Brand: Elite Lighting
• MPN: EULED18600LBZ-3CCT

Technical Specifications

• Application: Retail Displays, Gondolas, Coves, and Undercabinet Applications
• Average Life: 50000 hr
• Ballast Type: Triac Dimming
• Color: Bronze
• Color Rendering Index (CRI): 90+
• Color Temperature: 3000/3500/4100 K
• Dimensions: 18 inches L x 3-1/2 inches W x 1-1/8 inches H
• Housing Finish: Polyester Powder Coated/White
• Housing Material: Steel
• Includes: Romex/BX Conduit Connector
• Lamp Type: LED
• Lamp Wattage: 9 W
• Lens Type: Polycarbonate
• Lumens: 720 Lumens
• Mfg Standards/Approvals: California Title 24 | cETLus Listed | ENERGY STAR Certified | ETL Listed | TUV SUD Approved | LM-79 | LM-80
• Series: EU-LED
• Type: High Performance Slim Link Profile
• Voltage Rating: 120 V
• Warranty: 5 years Limited
