Elite Lighting ELX-LED-703-R-W LED Exit/Emergency Light Combination 120/277 Volt

Product Description

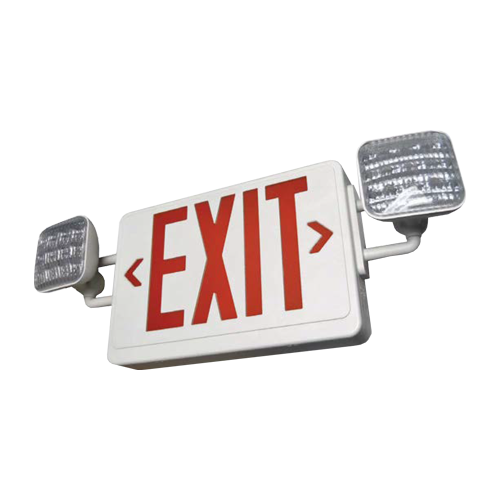

The ELITE LIGHTING ELX-LED-703-R-W is an LED exit/emergency light combination unit, ideal for applications requiring both an exit sign and emergency lighting. It features a swivel-and-point LED head for directional control and a test switch to monitor charge and diagnostic states. The LED and PC circuits are rated for approximately 25 years without illumination drop, ensuring reliable performance for egress lighting.

• Ideal when both an exit sign and an emergency light are required
• Suitable for use above doors or in other tight spaces
• Full-range control of direction with swivel-and-point design of the LED head

Product Highlights

This combination unit offers long-lasting LED illumination and battery backup for emergency egress, ensuring safety and compliance.

Product Information

Standard Information

• Brand: ELITE LIGHTING
• Manufacturer Part Number: ELX-LED-703-R-W

Technical Specifications

• Light Source: LED
• Input Voltage AC: 120-277V
• Output Voltage DC: 6V
• Material: Thermoplastic
• Color: White/Red
• Power Consumption: 3.8W
• Battery Type: 9.6V Ni-CD AA700mAh
• Emergency Illumination Duration: 90 minutes minimum
