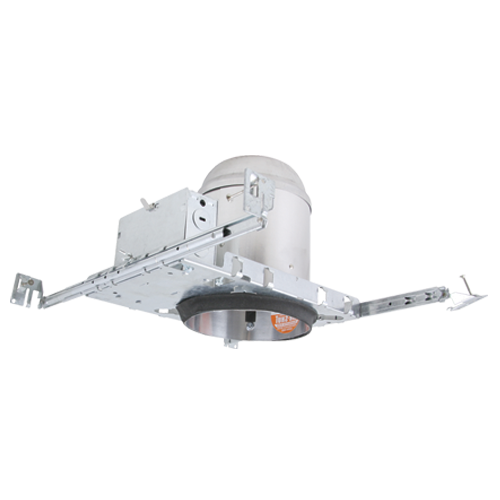

Elite Lighting B5IC-AT-W 5 Inch Airtight Loose Socket and Wago Connector Universal IC Housing

Product Description

Elite Lighting B5IC-AT-W is a five-inch airtight loose socket universal housing designed for new construction. It features thermally protected and IC rated specifications. This recessed housing accommodates various lamp types, including up to seventy-five watt PAR30 and R30 lamps, sixty watt A19 lamps, and sixty-five watt BR30 lamps. It is also compatible with the RL series LED retrofit modules.

• Designed for new construction
• IC rated and thermally protected
• Compatible with multiple lamp types

Product Highlights

The housing is suitable for installation in ceilings with openings ranging from half an inch to one and three-eighth inches.

Product Information

Standard Information

• Brand: Elite Lighting
• MPN: B5IC-AT-W

Technical Specifications

• Type: IC, Recessed
• Voltage: 110-125 Volt
• Lamp Type: R/PAR30/A19/BR30 Incandescent
• Lamp Wattage: 75 W
• Aperture Size: 5 in
• Housing Material: Aluminum
• Number of Lamps: 1
• Depth: 24 in
• Height: 7 in
• Width: 7 in
• Ceiling Opening: 1/2 to 1-3/8 in
• Insulation Type: IC
• Standard & Approvals: cULus/cETLus Listed
