Elite Components BC1-0037EG 3/8 Sm Di Univ Beam Clamp Eg

Product Description

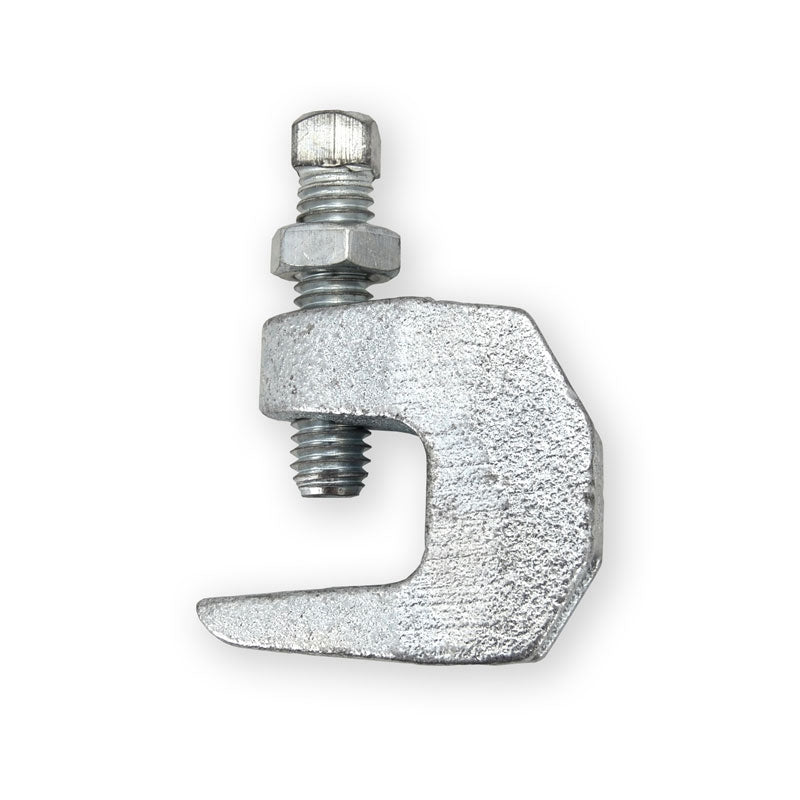

The ELITE COMPONENTS BC1-0037EG 3/8 SM DI UNIV BEAM CLAMP EG provides a structural attachment to the top or bottom of metal beams, purlins, channel, or angle iron. The set screw is made of hardened steel and the clamp is made of electro-galvanized malleable iron for maximum durability.

• Structural attachment to top or bottom of metal beams, purlins, channel, or angle iron.
• Set screw made of hardened steel
• Complied with Federal Specification A-A-1192A (Type 19) and MSS SP-69 (Type 19)

Product Highlights

This beam clamp is ideal for providing secure and durable structural attachments in various construction and industrial applications.

Product Information

Standard Information

• Brand: ELITE COMPONENTS
• Manufacturer Part Number: BC1-0037EG

Technical Specifications

• Brand: ELITE COMPONENTS
• SKU: BC1-0037EG
• Finish: Electro-Galvanized
• Size: 3/8"
• Max Top Load: 250 LBS
• Complies with Federal Specification: A-A-1192A and MSS SP-69
