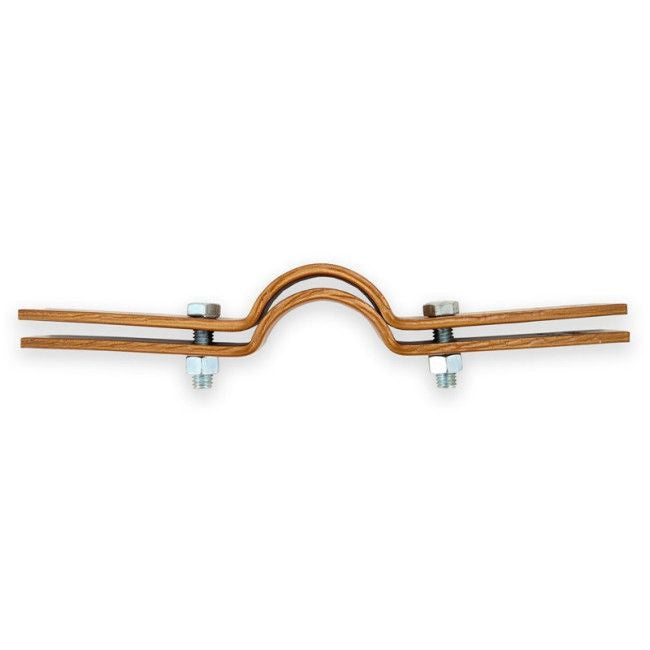

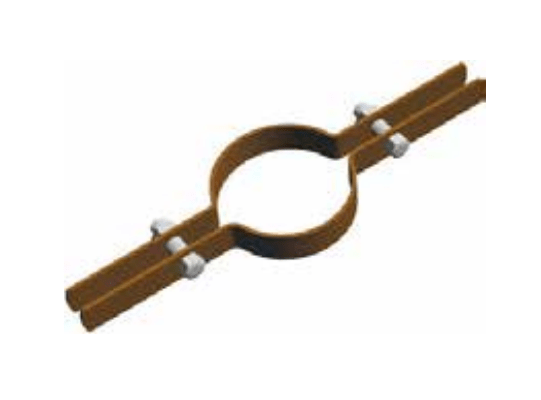

Elite Components 6400-0200PC Standard Riser Clamp 2 inches

Product Description

The ELITE COMPONENTS 6400-0200PC is a 2" standard riser clamp designed for standard iron pipe. It is constructed from carbon steel with a copper-colored epoxy finish. This riser clamp complies with Federal Specifications A-A-1192A (Type 8), WW-H-171-E (Type 8), ANSI/MSS SP-69 AND MSS SP-58 (Type 8).

• Maximum temperature plain 650° F, galvanized 450° F
• Designed for standard iron pipe
• Complies with Federal Specifications A-A-1192A (Type 8), WW-H-171-E (Type 8), ANSI/MSS SP-69 AND MSS SP-58 (Type 8)

Product Highlights

Standard riser clamp made of carbon steel with a copper-colored epoxy finish, designed for standard iron pipe.

Product Information

Standard Information

• Brand: ELITE COMPONENTS
• Manufacturer Part Number: 6400-0200PC

Technical Specifications

• Brand: ELITE COMPONENTS
• SKU: 6400-0200PC
• Maximum temperature Plain: 650° F
• Maximum temperature Galvanized: 450° F
• Complies with Federal Specifications: A-A-1192A (Type 8), WW-H-171-E (Type 8), ANSI/MSS SP-69 AND MSS SP-58 (Type 8)
• Finished: Copper-Colored Expoxy (PC)
• Material: Carbon steel
• Size Range: 1/2" thru 4"
• Size: 2"
• Finish: Copper-Colored Epoxy
• Max Temp: 450 F
• Max Load: 150 LBS
• Complies with: Federal Specification A-A-1192A, ANSI/SP-69, and SP-58
