Elite Components 6400-0100pc 1 inches Standard Riser Clamp

Product Description

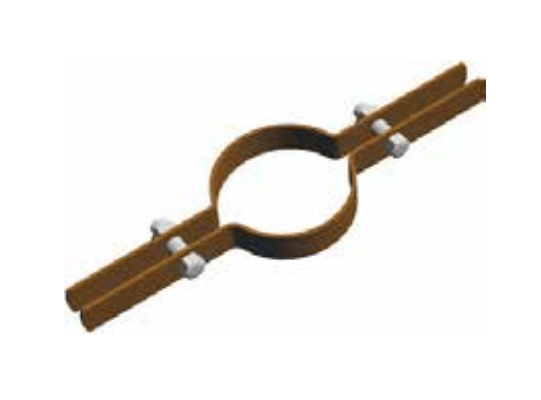

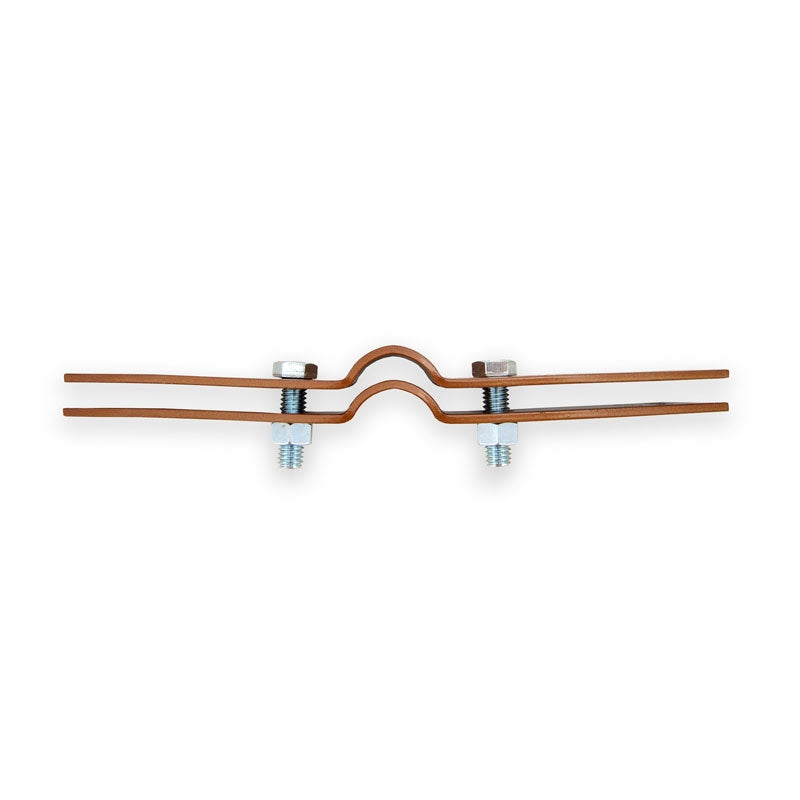

The ELITE COMPONENTS 6400-0100PC is a 1" standard riser clamp designed for standard iron pipes. It is constructed from carbon steel with a copper-colored epoxy finish. This riser clamp complies with Federal Specifications A-A-1192A (Type 8), WW-H-171-E (Type 8), ANSI/MSS SP-69 AND MSS SP-58 (Type 8).

• Maximum temperature plain 650° F, galvanized 450° F.
• Designed for standard iron pipe.
• Complies with Federal Specifications A-A-1192A (Type 8), WW-H-171-E (Type 8), ANSI/MSS SP-69 AND MSS SP-58 (Type 8)

Product Highlights

The ELITE COMPONENTS standard riser clamp is made of carbon steel and is suitable for standard iron pipe applications.

Product Information

Standard Information

• Brand: ELITE COMPONENTS
• Manufacturer Part Number: 6400-0100PC

Technical Specifications

• Brand: ELITE COMPONENTS
• SKU: 6400-0100PC
• Maximum Temperature Plain: 650° F
• Maximum Temperature Galvanized: 450° F
• Designed For: standard iron pipe
• Complies with Federal Specifications: A-A-1192A (Type 8), WW-H-171-E (Type 8), ANSI/MSS SP-69 AND MSS SP-58 (Type 8)
• Finish: Copper-Colored Epoxy
• Material: Carbon steel
• Size: 1"
• Maximum Load: 120 LBS
• Size in Inches: 1 inch
