Elite Components 5200-0075PC 3/4 inches Copper Coated Split Ring Hanger

Product Description

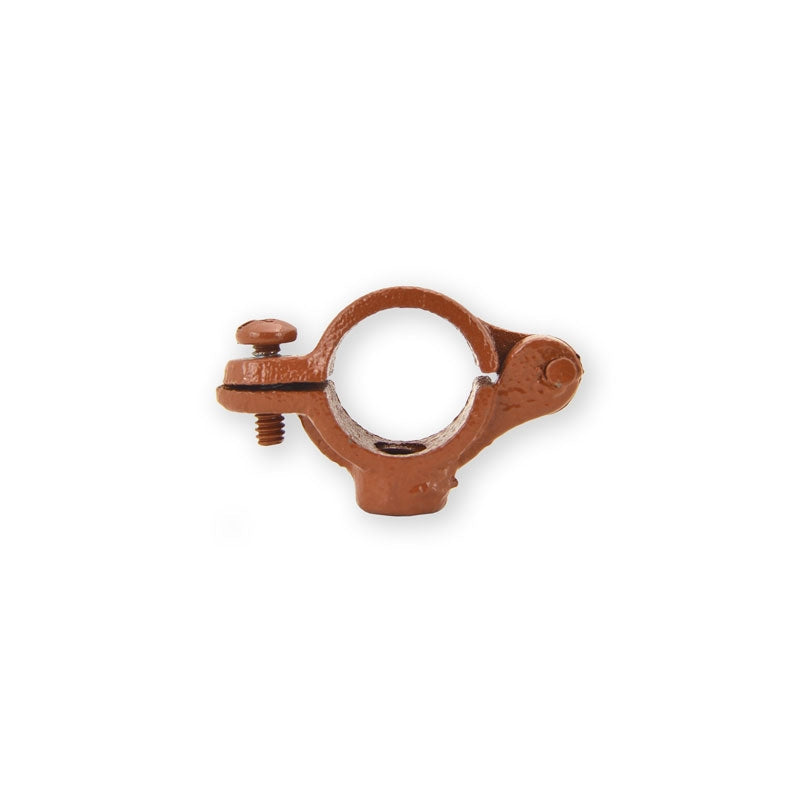

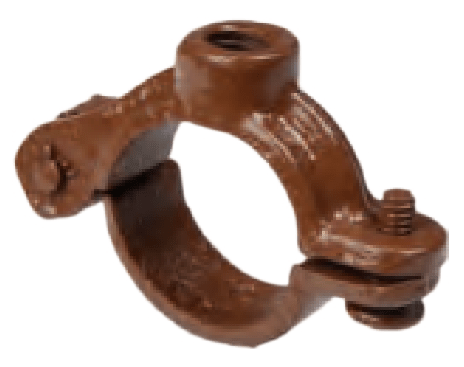

The ELITE COMPONENTS 5200-0075PC is a 3/4" split ring pipe hanger with a hinged design for economical installation. The body is made of malleable iron with a copper-colored epoxy coating. The bolt and rivet are made of carbon steel. Designed to provide a tight fit on standard copper pipe.

• Hinged design for economical installation
• Designed to provide a tight fit on standard copper pipe
• Bolt and rivet are made of carbon steel

Product Highlights

This 3/4" split ring hanger features a copper-colored epoxy coating and complies with Federal Specification WW-H-171, MSS SP-58, and MSS SP-69.

Product Information

Standard Information

• Brand: ELITE COMPONENTS
• Manufacturer Part Number: 5200-0075PC

Technical Specifications

• Size: 3/4"
• Brand: Elite Components
• Finish: Copper-Colored Epoxy
• Max Load: 300 LBS
• SKU: 5200-0075PC
• Complies with: Federal Specification WW-H-171, MSS SP-58, and MSS SP-69
• Size in Inches: 3/4 inch
• Features: Bolt and rivet are carbon steel. Hinged design provides for economical installation. Designed to provide a tight fit on standard steel pipe.
