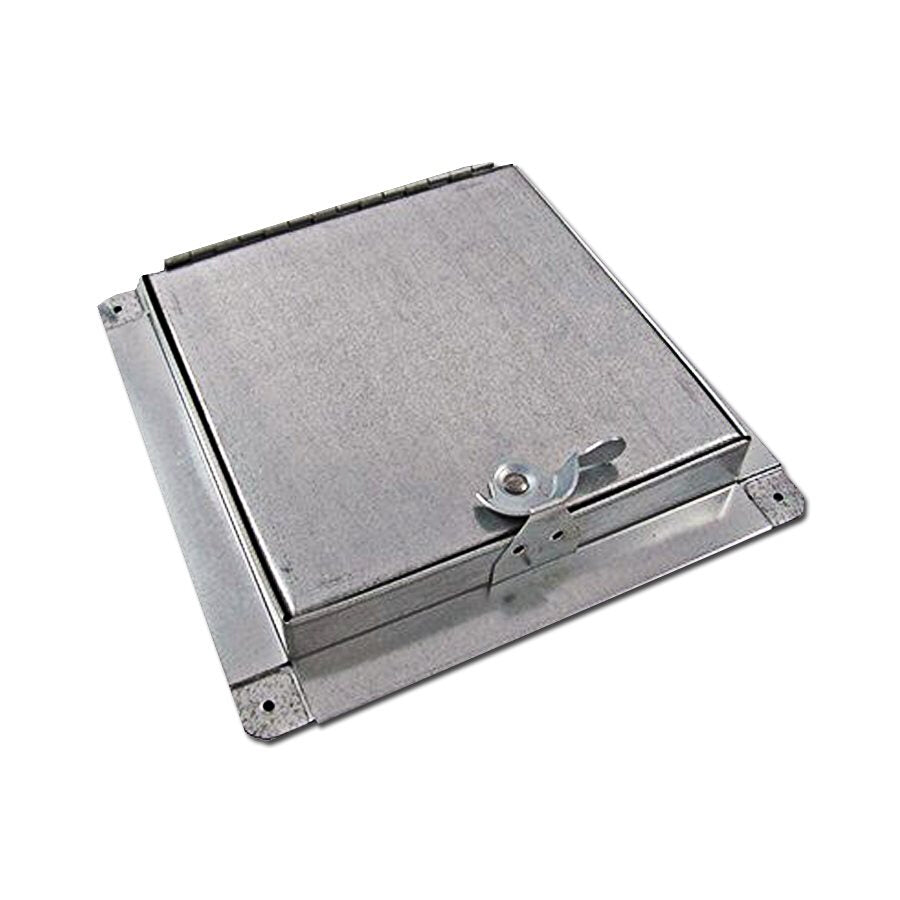

Elgen ad1345 Hinged Access Door 8x8 Inches

Product Description

The ELGEN ad1345 is a press-on hinged access door designed for use in ductwork and HVAC enclosure systems. This panel provides a secure, tool-free access point to interior components, cleanouts, or inspection areas within sheet metal duct assemblies. The press-on mounting design allows the door to seat firmly against a prepared opening without fasteners, while the integrated hinge keeps the panel captive when open. HVAC sheet metal installers and service technicians typically handle this type of access door during new construction or system modification work.

This access door is suited for residential and light commercial HVAC duct systems where periodic access to interior duct sections is required. The 8x8-inch panel size fits standard square access openings cut into rectangular duct, plenums, or air handler cabinets. It is appropriate for both horizontal and vertical duct surfaces where a flush, hinged closure is needed.

Key Features

• Press-on mounting design seats without fasteners for fast installation
• Integrated hinge keeps door captive and allows single-hand operation
• 8x8-inch panel fits standard square duct access openings
• Sheet metal construction consistent with duct system materials
• Hinged design allows repeated access without removing the door

Compatibility

Designed as an OEM-style replacement or new-installation access door for sheet metal ductwork and HVAC enclosures requiring an 8x8-inch hinged access opening.

Installation Notes

Installation is performed by licensed HVAC technicians or qualified sheet metal workers. Power down the air handling system before cutting any access opening or seating the door panel. Ensure the opening is cut cleanly and deburred to allow proper seating of the press-on frame. Follow local mechanical codes and SMACNA guidelines for duct access panel placement and sizing.

Technical Specifications

• Panel Size: 8x8 inches
• Mounting Type: Press-on
• Door Style: Hinged

Standard Information

• Brand: ELGEN
• Manufacturer Part Number: ad1345
