Elgen ad0205 Galvanized Access Door 20x20 in Tab Cam

Product Description

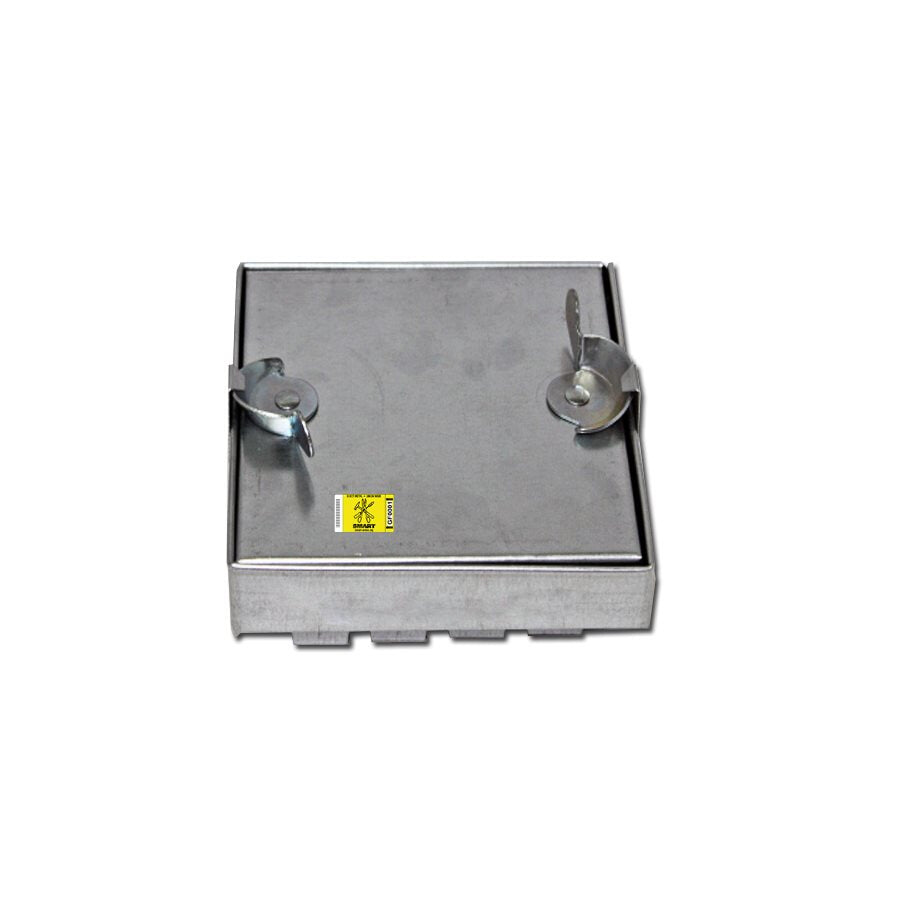

The ELGEN ad0205 is a galvanized steel access door designed for installation in HVAC ductwork and air distribution systems. This is a Door B configuration panel measuring 20 by 20 inches, featuring a tab-style cam latch mechanism that allows for tool-free or quick-release opening during inspection, cleaning, and service work. The galvanized steel construction provides corrosion resistance suitable for both supply and return air duct applications. HVAC technicians and sheet metal contractors install this panel where repeated access to duct interiors is required without compromising the integrity of the air system.

The ad0205 is suited for residential and light commercial HVAC duct systems where a flush or recessed access point is needed. The 20 by 20 inch opening size accommodates standard inspection and service hand access. The Door B designation indicates a specific frame and door leaf configuration commonly used in rectangular duct runs and air handler sections. This panel is installed by sheet metal mechanics and HVAC technicians as part of new construction duct systems or retrofit service upgrades.

Key Features

• Galvanized steel construction for corrosion resistance in air-side duct environments
• 20 by 20 inch panel size provides sufficient access for inspection and cleaning
• Tab cam latch mechanism allows quick open and close without additional tools
• Door B configuration designed for standard rectangular duct frame installation
• Suitable for both supply and return duct applications in HVAC systems

Compatibility

Designed as an OEM-style replacement or new-installation access door for rectangular HVAC ductwork systems requiring a 20 by 20 inch access panel with a tab cam latch.

Installation Notes

Installation is performed by licensed sheet metal mechanics or HVAC technicians in accordance with SMACNA duct construction standards. The system should be depressurized and the air handler powered down before cutting into existing ductwork to install this panel. Secure the frame to the duct using appropriate sheet metal screws and seal all edges with approved duct sealant or mastic to prevent air leakage. Verify that the cam latch engages fully and the door seats flush before returning the system to service.

Technical Specifications

• Panel Size: 20 x 20 inches
• Material: Galvanized Steel
• Latch Type: Tab Cam
• Door Configuration: Door B

Standard Information

• Brand: ELGEN
• Manufacturer Part Number: ad0205
