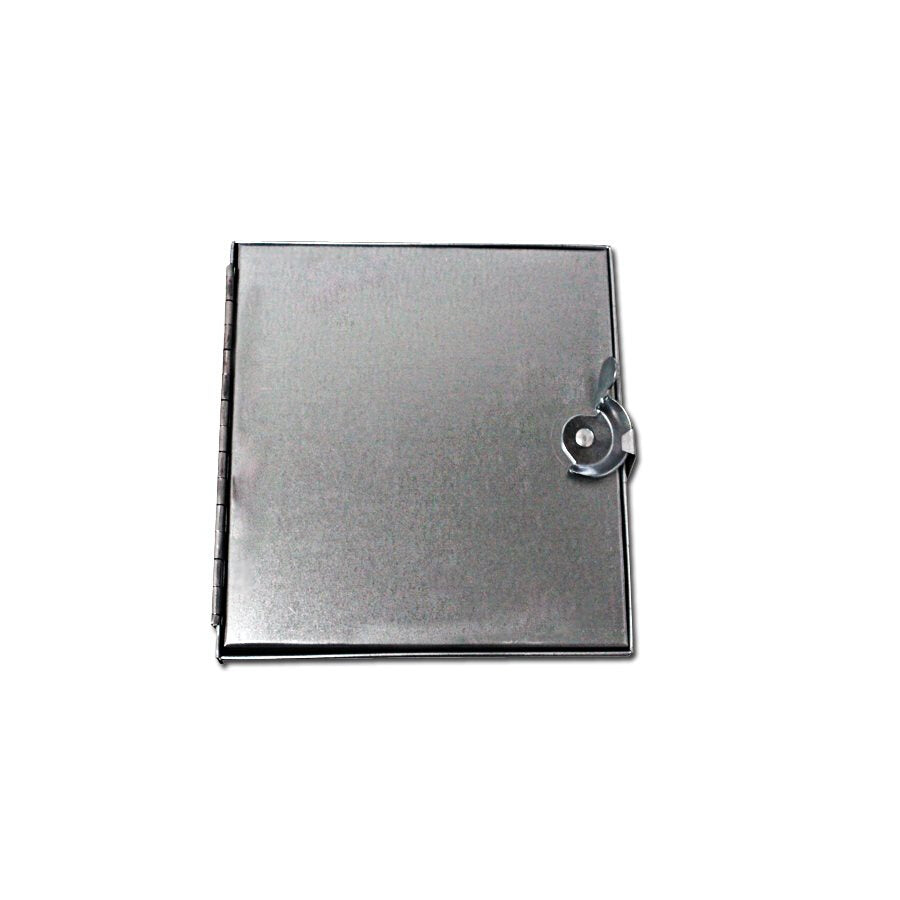

Elgen ad0020 Tab Hinged Access Door 8x8 Inches

Product Description

The ELGEN ad0020 is a tab hinged access door designed for installation in ductwork, ceilings, walls, or mechanical enclosures where service access to internal components is required. The door measures 8 inches by 8 inches and uses a tab hinge mechanism that allows the panel to swing open without the need for separate hinge hardware. This type of access door is a standard component in HVAC system installations, used to provide service technicians with a clear access point for inspection, cleaning, and component service without cutting new openings each time.

The ad0020 is suited for residential and light commercial HVAC applications where a small-format access panel is needed. It is commonly installed in ductwork runs, air handler enclosures, plenums, and mechanical room wall or ceiling assemblies. HVAC technicians and sheet metal installers typically specify this panel where code or equipment manufacturer guidelines require a dedicated service access point.

Key Features

• Tab hinge design eliminates separate hinge hardware for simplified installation
• 8 inch by 8 inch panel size fits standard small-format access openings
• Suitable for ductwork, plenum, wall, and ceiling access applications
• Designed for repeated open-and-close service cycles without hardware loosening

Compatibility

Designed as an OEM-style replacement or new-installation access door for residential and light commercial ductwork and mechanical enclosure applications requiring an 8 inch by 8 inch access opening.

Installation Notes

Installation is typically performed by licensed sheet metal workers or HVAC technicians following SMACNA guidelines for duct access and cleanability. Shut down and de-energize the HVAC system before cutting or modifying ductwork or enclosures. Ensure the rough opening matches the panel frame dimensions before securing. Follow local mechanical codes for access door placement requirements in duct systems.

Technical Specifications

• Panel Size: 8 x 8 inches
• Hinge Type: Tab Hinged

Standard Information

• Brand: ELGEN
• Manufacturer Part Number: ad0020
