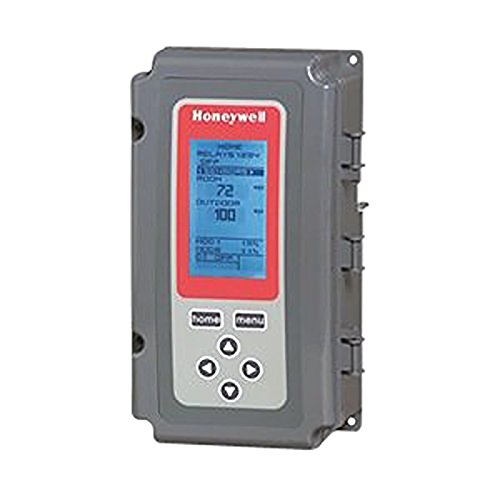

Honeywell T775U2006 Electronic Universal Controller with 1 Input

Product Description

The Honeywell T775U2006 is an electronic universal controller equipped with 1 input. This controller is designed for industrial and scientific applications where precise control of temperature, humidity, pressure, and other variables is required.

• Remote sensing capabilities
• Supports multiple input types
• Switched and proportional outputs

Product Highlights

This universal controller can handle various conditions, making it suitable for different environments. It features a user-friendly interface, large display, and intuitive programming, ensuring easy setup and reliable performance.

Product Information

Standard Information

• Brand: Honeywell
• Part Type: Humidity Control
• Temperature Range: -40 to 248 degrees Fahrenheit

Technical Specifications

• MPN: T775U2006
• Analog Output: 2
• Relay Outputs: 2 SPDT
• Sensor Inputs: 2
• Voltage: 24 Vac or 120/240 Vac
• Frequency: 50 Hz and 60 Hz
• Contact Ratings 24V: 10.0 A Resistive
• Contact Ratings 120V: 9.8 AFL, 1/2 hp, 58.8 ALR, 125 VA Pilot Duty
• Contact Ratings 240V: 4.9 AFL, 1/2 hp, 125 VA Pilot Duty, 29.4 ALR
• Dimensions: 8.15625 inches high x 4.40625 inches wide x 2.9375 inches deep
• Sensor Element: 1097 ohms PTC at 77°F (25°C)
• Number of Sensor Inputs: 2
• Maximum Distance to Sensor: Up to 1,000 feet
• Setpoint Temperature Range: -40°F to 248°F
• Accuracy: ±1°F at 77°F
• Differential Temperature: 1°F to 150°F
• Operating Ambient Temperature Range: -40°F to 140°F @ 60 Hz
• Floating Output: 1
• Output Reset: Yes
